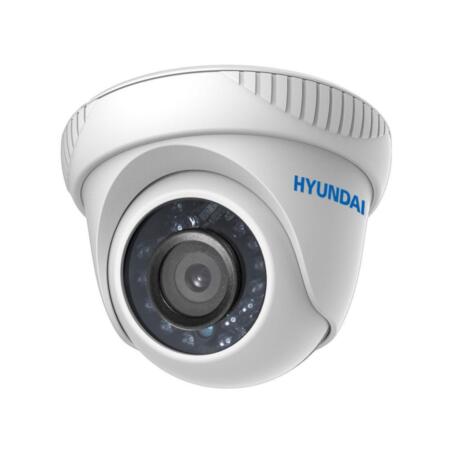

4 in 1 dome PRO series with Smart IR of 20 m for outdoors

Name: HYU-502
SKU: HYU-502
Rating: 5 (3 reviews)

HYU-502

This product is discontinued

It is replaced by the new version HYU-807

Main features

4 in 1 dome PRO series with Smart IR of 20 m for outdoors
2MP CMOS
4 in 1 (HDCVI / HDTVI / AHD / 960H)
2,8 mm fixed lens (103°)
ICR
OSD, digital WDR
IP66
3AXIS
12V DC.

Specifications

Features
- 2 MP CMOS sensor
- Digital resolution: 1080P@25/30 ips
- 4 in 1 (switch): HDCVI / HDTVI / AHD / 960H
- 0,01 lux F1.2 color / 0 lux IR On
- Removable mechanical filter
- Smart IR: 20 meters
- 2,8 mm fixed lens (103°)
- OSD menu via coaxial
- Digital WDR
- Working temperature -40°C~+60°C
- RH: ≤90% (without condensation)
- IP66
- Power supply: 12V DC (±15%)
- Consumption: Max. 4W
- Dimensions: Ø89,6 x 70,1 mm
- Weight: 280 g
- 3AXIS: wall and ceiling installation

Documentation

	Language	Name	Type	Action
	EN		Certificate
	EN		Self-generated File
