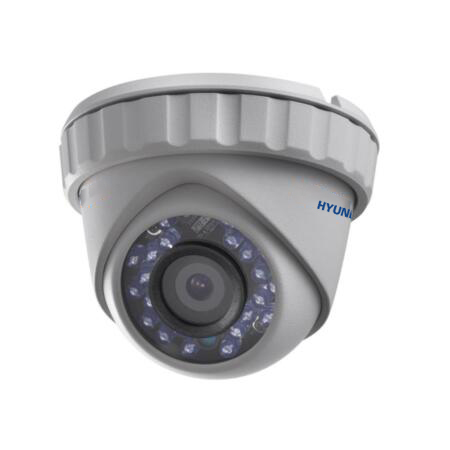

4 in 1 dome PRO series with Smart IR of 20 m for outdoors

Name: HYU-506
SKU: HYU-506
Rating: 5 (7 reviews)

HYU-506

This product is discontinued

It is replaced by the new version HYU-809

Main features

4 in 1 dome PRO series with Smart IR of 20 m for outdoors
CMOS, 2MP
4 in 1 (HDCVI / HDTVI / AHD / 960H)
2,8 mm fixed lens (103°)
ICR filter
OSD, digital WDR
IP66
3AXIS
12V DC.

Specifications

Features
- CMOS sensor, 2 MP
- Digital resolution: 1080P@25/30 fps
- 4 in 1 (switch): HDCVI / HDTVI / AHD / 960H
- 0,01 lux F1.2 color / 0 lux IR On
- Removable mechanical filter
- Smart IR: 20 m
- 2,8 mm (103°) fixed lens
- OSD menu via coaxial
- Digital WDR
- Working temperature: -40°C~+60°C
- RH: ≤90% (without condensation)
- IP66
- Power suppply: 12V DC (±15%)
- Consumption: Max. 4W
- Dimensions: 89,5 x 67,6 mm
- Weight: 340 g
- 3AXIS: wall and ceiling installation

Documentation

	Language	Name	Type	Action
	EN		Self-generated File
