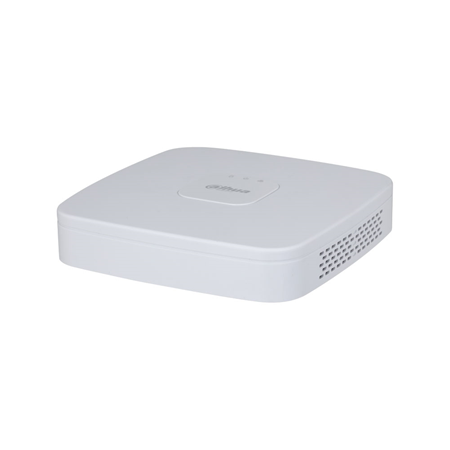

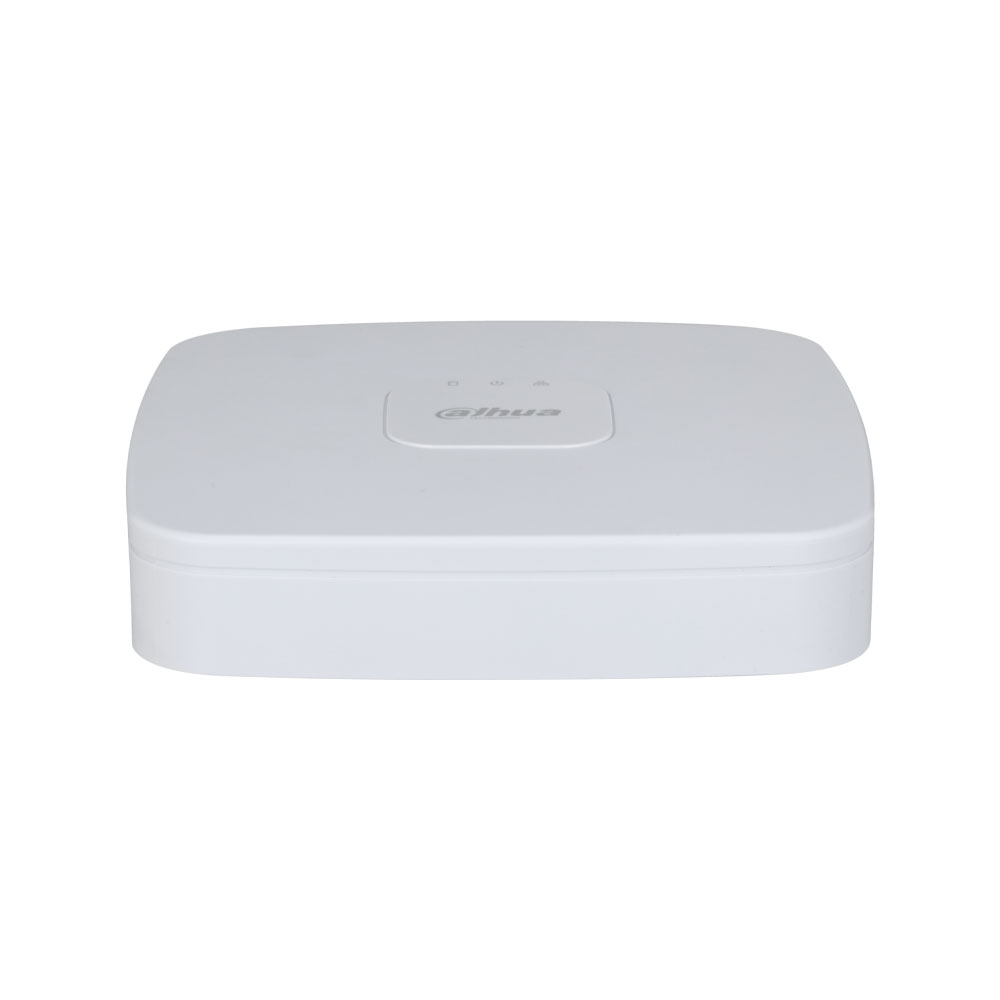

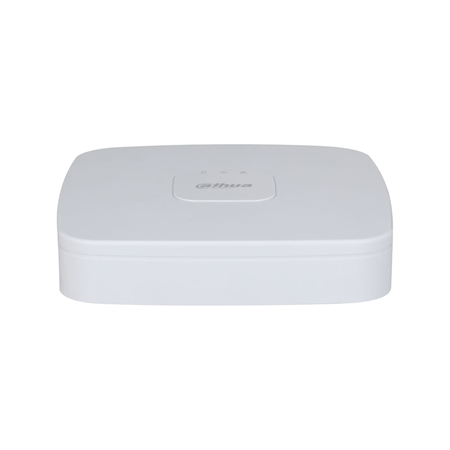

4-channel XVR 5 in 1 1080N/720P Dahua WizSense

Technical features

• XVR 5 in 1 Dahua
• Video input: 4 BNC channels (HDCVI/AHD/TVI/CVBS auto-adaptive)
• IP camera input: up to 5 channels (1 native IP channel + 4 convertible channels)
• Maximum resolution per channel: 1080p@25/30 fps
• Compression: AI Coding, Smart H.265+, H.265, Smart H.264+, H.264
• Video output: HDMI and VGA up to 1080p

Intelligent functions

• 4 channels with SMD Plus per recorder (human and vehicle filtering)
• 5 channels with SMD per camera
• Dual Light intelligent illumination mode
• One channel with irregular black mask

Audio

• 1 RCA input + 4 channels of audio via coaxial
• 1 RCA output
• Audio via coaxial

Storage

• 1 SATA port, up to 16 TB (HDD not included)

Alarms

• General alarms: motion, HDCVI alarm, external camera alarm, network, PIR
• Anomaly alarms: disk error, network disconnect, IP/MAC conflict, video loss, tampering
• Alarm link: recording, snapshot, external IPC alarm, audio, buzzer, log, preset, email

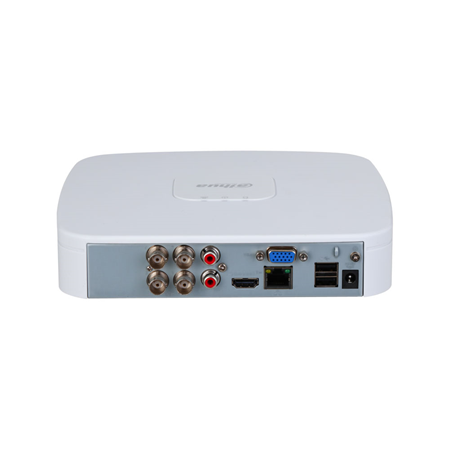

Communication interface

• 2 rear USB 2.0 ports
• 1 HDMI port
• 1 VGA port
• Reset button

Network

• RJ-45 10/100 Mbps port
• Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, FTP, DDNS, SNMP, Alarm Server, P2P, IP Search
• Interoperability: ONVIF 24.12 (Profile T, S, G), CGI, SDK
• Compatible with Chrome, IE, Safari, Edge, Firefox browsers

Power supply

• 12 VDC, 1.5 A
• Power consumption: <4 W (without HDD)

Environmental

• Operating temp.: -10 °C ~ +55 °C
• Storage temp.: -20 °C ~ +60 °C
• Humidity: 10%~90% non-condensing

Physical characteristics

• Tabletop installation
• Dimensions: 204.6 × 211.3 × 45.8 mm (204.6 × 211.3 × 45.8 mm)
• Net weight: 0.48 kg
• Gross weight: 1.03 kg

Contents

• Dahua 4-channel 5-in-1 XVR DAHUA-4913 (DH-XVR4104C-I/T)

Certifications

• CE-LVD: IEC 62368-1:2014
• CE-EMC: EN 61000-3-2-2:2019, EN 61000-3-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
