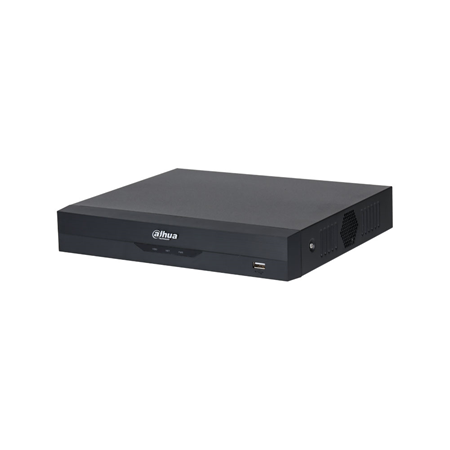

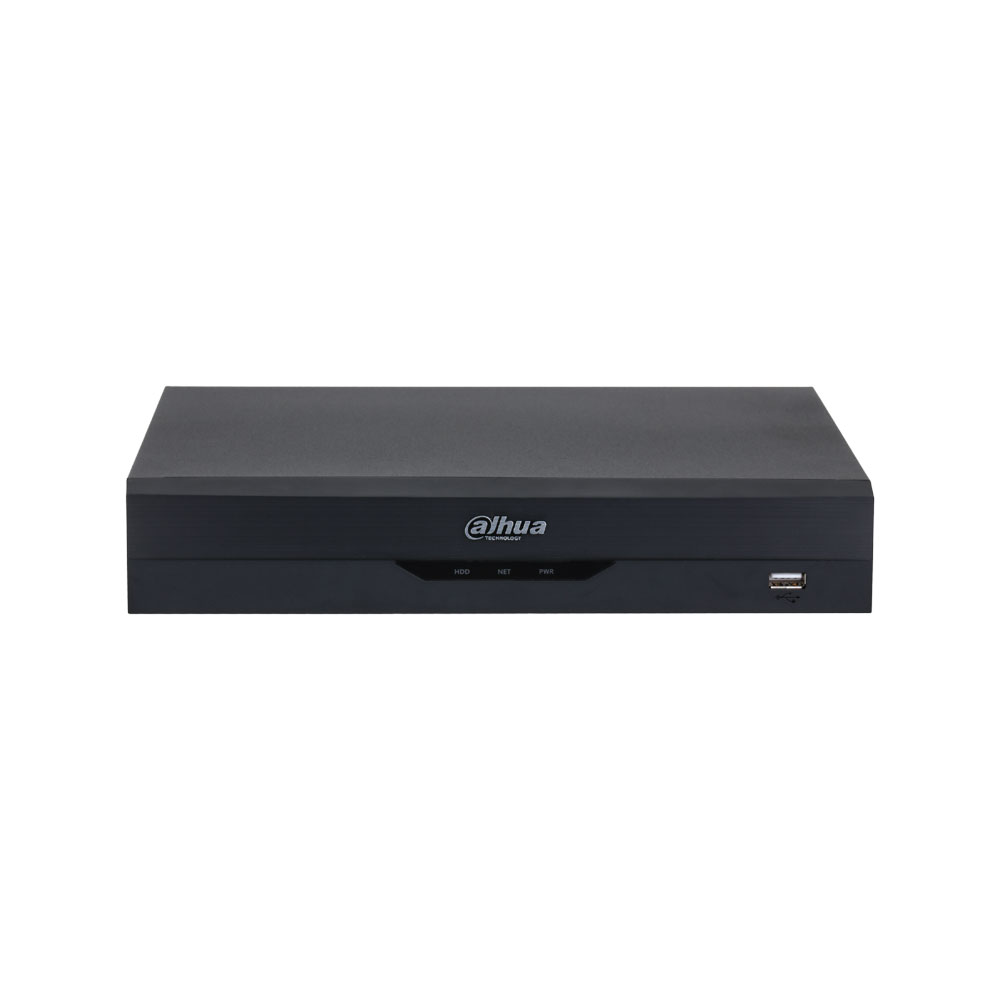

16-channel 5-in-1 Dahua WizSense XVR with 1080N/720P recording, SMD Plus and two-way audio

Technical Specifications

• Dahua WizSense 5-in-1 16-Channel XVR Recorder in a Compact 1U Form Factor
• Industrial-grade processor and embedded Linux operating system

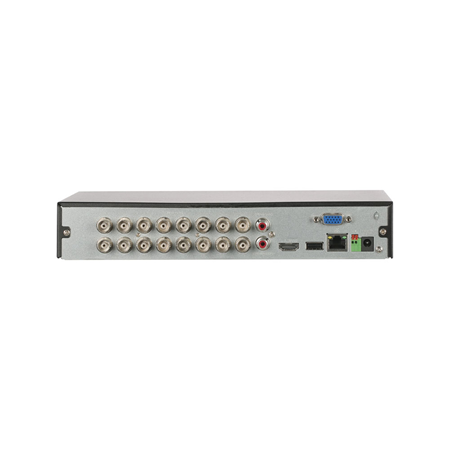

• 16 BNC inputs compatible with HDCVI, HDTVI, AHD, and CVBS with automatic recognition
• 2 IP channels by default, expandable to 18 channels by converting the 16 analog channels
• Supports IP cameras up to 6MP
• 64 Mbps input bandwidth, 64 Mbps recording bandwidth, and 64 Mbps output bandwidth
• Supports HDCVI, HDTVI, and AHD input resolutions of 1080P@25/30 fps and 720P@25/30 fps
• Compatible with Panasonic, Sony, Hanwha, Axis, and Arecont IP cameras, as well as ONVIF devices

Video

• Video compression: AI Coding, Smart H.265+, H.265, Smart H.264+, and H.264
• Stream 1: 1080N/720P@1–25/30 fps on the first channel and 1080N/720P@1–15 fps on the remaining channels; 960H/D1/CIF@1–25/30 fps
• Stream 2: CIF@1–7 fps
• Video bitrate of 32–4096 Kbps
• 1 HDMI output and 1 VGA output with resolutions of 1920x1080, 1280x1024, and 1280x720
• Multi-screen display of 1, 4, 8, 9, and 16 windows in conventional mode
• Multi-screen display of 1, 4, 8, 9, 16, and 25 windows with IP extension enabled

Functionalities

• General, alarm-triggered, and motion-detection recording
• Simultaneous playback of 1, 4, 9, and 16 channels
• Instant, general, event-based, tag-based, and smart playback
• Backups via USB devices and the network
• Irregular zone masking using black blocks on 1 channel
• Smart Dual Light s control on compatible cameras, with automatic switching between IR and white light
• One-click arming and disarming of alarm links from the mobile app or platform
• Customize alarm audio by uploading files from the recorder or the mobile app
• Web management interface and local GUI

Smart Features

• SMD Plus from the recorder on 16 channels with person and vehicle classification
• Intelligent filtering of false alarms caused by leaves, rain, and changes in lighting
• Supports SMD from cameras on up to 18 channels
• AI Coding on 16 channels to optimize storage and bandwidth while preserving target details
• AI Coding-ABR with up to 50% storage savings compared to H.265

Audio

• 1 RCA audio input and 1 RCA audio output
• 16 channels of audio via coaxial using BNC connections
• 16-channel bidirectional audio via coaxial
• Local and network bidirectional audio, sharing the audio input of the first channel
• G.711a, G.711u, and PCM audio compression
• 8 kHz, 16-bit audio sampling
• 64 Kbps audio bitrate

Storage

• 1 SATA interface for a hard drive up to 16 TB
• The maximum supported capacity may vary depending on ambient temperature

Alarms

• Alarms for motion detection, alarm box, HDCVI, external camera alarm, network, and PIR
• Video loss detection, image tampering, and camera disconnection
• Alerts for missing disk, disk errors, and insufficient storage space or quota
• Alerts for network disconnection and IP or MAC address conflicts
• SMD Plus smart alarms
• Alarm triggering of recording, panoramic capture, external IP camera alarm output, audio, buzzer, logging, preset, and email

Communication interface

• 1 RS485 port
• 2 USB 2.0 ports, one on the front and one on the back

Network

• 1 RJ45 Fast Ethernet port (10/100 Mbps)
• Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, and UPnP
• Supports IP filtering, FTP, DDNS, SNMP, alarm server, P2P, automatic registration, and IP search
• Compatible with ONVIF 24.12 (T, S, and G profiles), CGI, and SDK
• Access via Chrome, Internet Explorer, Safari, Edge, and Firefox browsers
• Access via iOS and Android mobile devices
• Supports access to Wi-Fi IP cameras

Power

• 12V DC, 2A power supply
• Power consumption less than 10W without a hard drive

Environmental

• Operating temperature: -10°C to +55°C
• Storage temperature: -20°C to +60°C
• Operating relative humidity: 10%–90%, non-condensing

Physical Specifications

• Compact 1U form factor for desktop installation
• Dimensions: 260 (W) x 47.6 (H) x 237.8 (D) mm
• Net weight: 1.13 kg
• Gross weight: 1.70 kg

Contents

• Dahua WizSense 5-in-1 16-Channel XVR Recorder DAHUA-5347 (DH-XVR4116HS-I/T)

Certifications and Standards

• CE-LVD compliance according to IEC 62368-1:2014
• CE-EMC compliance according to EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, and EN 50130-4:2011+A1:2014
