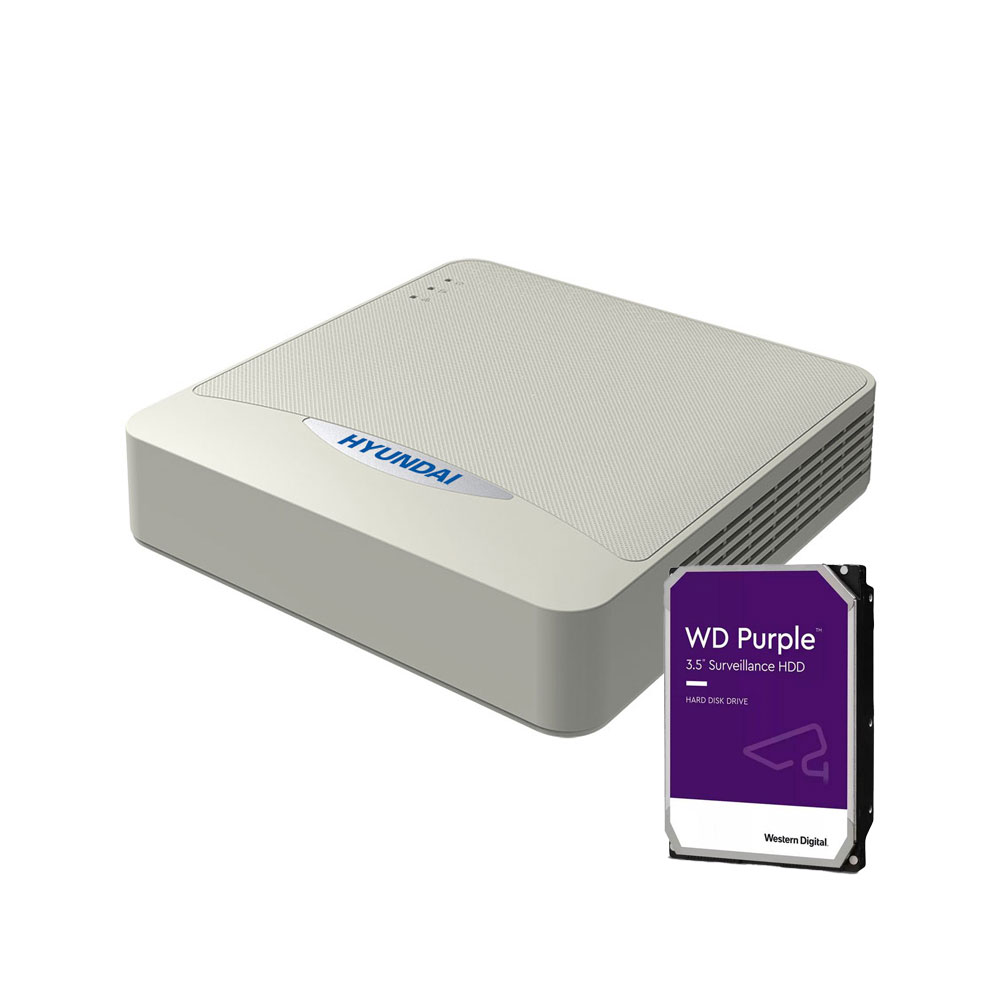

HYUNDAI 5-in-1 4-channel ZVR

Name: HYU-1040-1TB
SKU: HYU-1040-1TB
Availability: InStock
Rating: 5 (41 reviews)

HYU-1040-1TB

Main features

ZVR 5 in 1 HYUNDAI 4-channel
H.265 Pro+
4 channels BNC 8MP + 2 channels IP 8MP
8MP@8ips recording
HDMI and VGA 1080P outputs
Bidirectional audio, coaxial audio
Includes 1 HDD 1TB
1 RJ45, 2 USB, Onvif.

Specifications

ZVR 5 in 1 with 4 HD analog channels + 2 IP channels
5 technologies: IP, HDCVI, HDTVI, AHD and analog CVBS cameras
Connectable to H.265 Pro+, H.265 Pro, H.265, H.264+, H.264+, H.264 IP cameras
4 BNC inputs (supports coaxitron):
- HDTVI: 8MP, 5MP, 4MP, 3MP, 1080P, 720P
- HDCVI: 5MP, 4MP, 1080P, 720P
- AHD: 5MP, 4MP, 4MP, 1080P, 720P
- Analog CVBS: 960H, PAL/NTSC
2 IP inputs up to 8MP (4+2) with Enhanced IP mode off
4 IP inputs up to 4MP (4+4) with enhanced IP mode on
Independent HDMI (1080P) and VGA (1080P) outputs
Audio channels: 1 RCA input / 1 RCA output
Bi-directional audio: through RCA audio channel 1
4 audio inputs via coaxial cable
Recording resolution: 8MP, 8MP Lite, 5MP, 3K, 4MP, 3MP, 1080P, 720P, WD1, 4CIF, VGA, CIF
Stream 1 with 8MP Lite mode off:
- 8MP (8 fps, channel 1 only), 5MP (12 fps), 3K (12 fps), 4MP (15 fps), 3MP (18 fps), 1080P/720P/WD1/4CIF/VGA/CIF (25/30 fps).
Stream 1 with 8MP Lite mode activated:
- 8MP Lite, 3MP, 1080P, 720P, WD1, 4CIF, VGA, CIF (15 fps).
Stream 2: WD1, 4CIF, CIF (25/30 fps)
96 Mbps total bandwidth
32 Mbps incoming bandwidth with enhanced IP mode
4-channel synchronized playback
Long distance HDTVI transmission: up to 1200 meters at 720P and 800 meters at 1080P
Internal capacity for 1 SATA HDD up to 6TB(includes a special 1TB HDD for video surveillance)
Intelligent search
Auto-adaptive RJ45 (10/100M) Ethernet network interface
Network protocols: TCP/IP, PPPoE, DHCP, HYU-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS
Remote access for up to 32 users
Onvif compatible
P2P in the cloud, DDNS DEMES, Push and zero channel
Connections: 2 USB 2.0
Power supply: 12V DC, 1.5A
Power consumption: ≤15W
Operating Temperature: -10°C ~ +55°C
Relative humidity: 10~90%.
Dimensions: 200 (W) x 45 (H) x 200 mm (desktop)
Weight: ≤1.16 kg

REFERENCE / MODEL	HYU-1040-1TB / HYU-1040-1TB
Resolution	8MP
Audio	1 input / 1 output \|\| Audio via coaxial
PoC (Power Over Coax)	No
Technology	5 in 1
Analog Channels	4ch
Codec	H.264 \|\| H.264+ \|\| H.265 \|\| H.265+
Smart Search	Yes
Size	Mini 1U
IP Channels	2ch
Capacity	1 HDD \|\| 1TB HDD included
Alarm channels	No
Intelligent functions	No

Documentation

	Language	Name	Type	Action
	EN		Self-generated File
