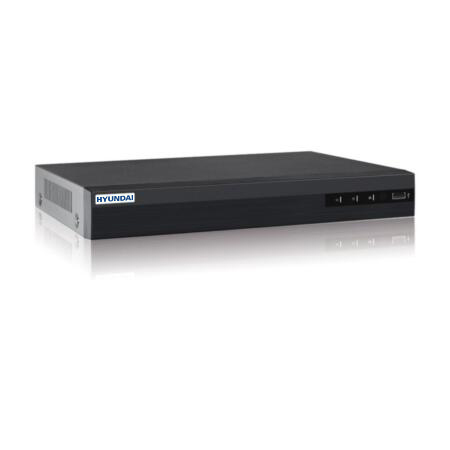

4 channel 5 in 1 ZVR HDCVI/HDTVI/AHD/CVBS + 1 IP channels

HYU-391N

SF-HTVR6104AP-HEVC

This product is discontinued
It is replaced by the new version HYU-562

  • 4 channel 5 in 1 ZVR HDCVI/HDTVI/AHD/CVBS + 1 IP channels
  • H.265+/H265/H.264+/H264
  • 2 way audio
  • 4 channel playback 1080P
  • Recording 3MP (channels 1 to 4, 15 fps, only TVI), 4MP (2 IP inputs), 1080P (15 fps), 1080N, 720P, 960H, D1/4CIF, VGA, CIF, QVGA, QCIF (25 fps)
  • BNC output at D1/4CIF
  • HDMI and VGA at 1080P
  • 1 HDD SATA capacity
  • RJ45 Gigabit
  • Onvif, P2P, DDNS
  • 2 USB, 1 RS485
  • DC48V
  • Compatible with PoC cameras.







- 4 channel 5 in 1 ZVR, H.265+/H265/H.264+/H.264
- 5 technologies: IP, HDCVI, HDTVI, AHD and CVBS
-PoC(Power Over Coaxial) forHD-TVIcompatible cameras (up to 200 meters)
- TVI mode: 3.0 version (not compatible with v1.0)
- H.265+ compression format (reduction of 70% coding efficiency and video storage)
- 4 BNC input (coaxitron supported):
• HDCVI: 1080P/720P (telemetry control via HD-CVI coaxial cable)
• HDTVI: 3MP (channels 1) / 1080P / 720P (only on v3.0 cameras, not compatible with v1.0)
• AHD: 1080P/720P
• CVBS : 960H
- 1 IP inputs up to 4MP
- HDMI & VGA output 1920x1080
- BNC auxiliary output up to 704x576
- 2 way audio: 1 RCA in / 1 RCA out
- Display resolution: 1080P, 1080N (960x1080), 720P, 960H, D1/4CIF, VGA, CIF, QVGA, QCIF
- Recording resolution: 3MP (channels 1, only TVI), 4MP (only IP), 1080P, 1080N (960x1080), 720P, 960H, D1/4CIF, VGA, CIF, QVGA, QCIF
- Stream 1 on 3MP mode:
• Stream at 3MP: 3MP (15 fps)
- Stream 1 on 1080P mode:
• Stream at 1080P: 1080P, 720P (15 fps), 960H, D1/4CIF, VGA, CIF (25/30 fps)
• Stream at 720P: 720P, 960H, D1/4CIF, VGA, CIF (25/30 fps)
- Stream 1 on 1080N mode:
- 3MP (15 fps), 1080N, 720P lite, 960H, D1/4CIF, VGA, CIF (25/30 fps)
- Stream 2: 960H, D1/4CIF (12 fps), CIF (25/30 fps)
- 4 channel simultaneous playback 1080P
- Multi-camera inverted playback
- Up to x256 playback speed (forward and backward)
- 1 HDD SATA up to 6TB (not included)
- Soporta modo de cuota de disco duro; permite asignar capacidades diferentes a canales diferentes
- GUI and one touch recording (Wizard)
- Diagnosys manual of video quality
- Search and playback by tags
- Log files locking and unlocking
- Network interface: Ethernet RJ45 (10/100/1000M) auto-adaptive
- Network protocols: TCP/IP, PPPoE, DHCP, P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS
- Compatible withONVIF
- Remote access up to 128 users
- Remote access via iPhone/iPad, Android
- Multi browser compatibility: Chrome, Firefox, Safari, IE
- P2P, DDNS DEMES, Push and zero channel
- Connection: 2 USB 2.0, 1 RS485 half-duplex
- Power supply: 48V DC
- Consumption: ≤40W
- Working temperature: -10°C ~ +55°C
- RH: 10~90%
- Dimensions: 315 x 242 x 45 mm (desktop)
- Weight: ≤1,16 kg
