dahua

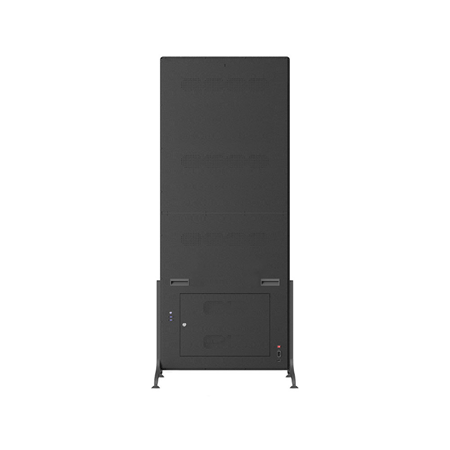

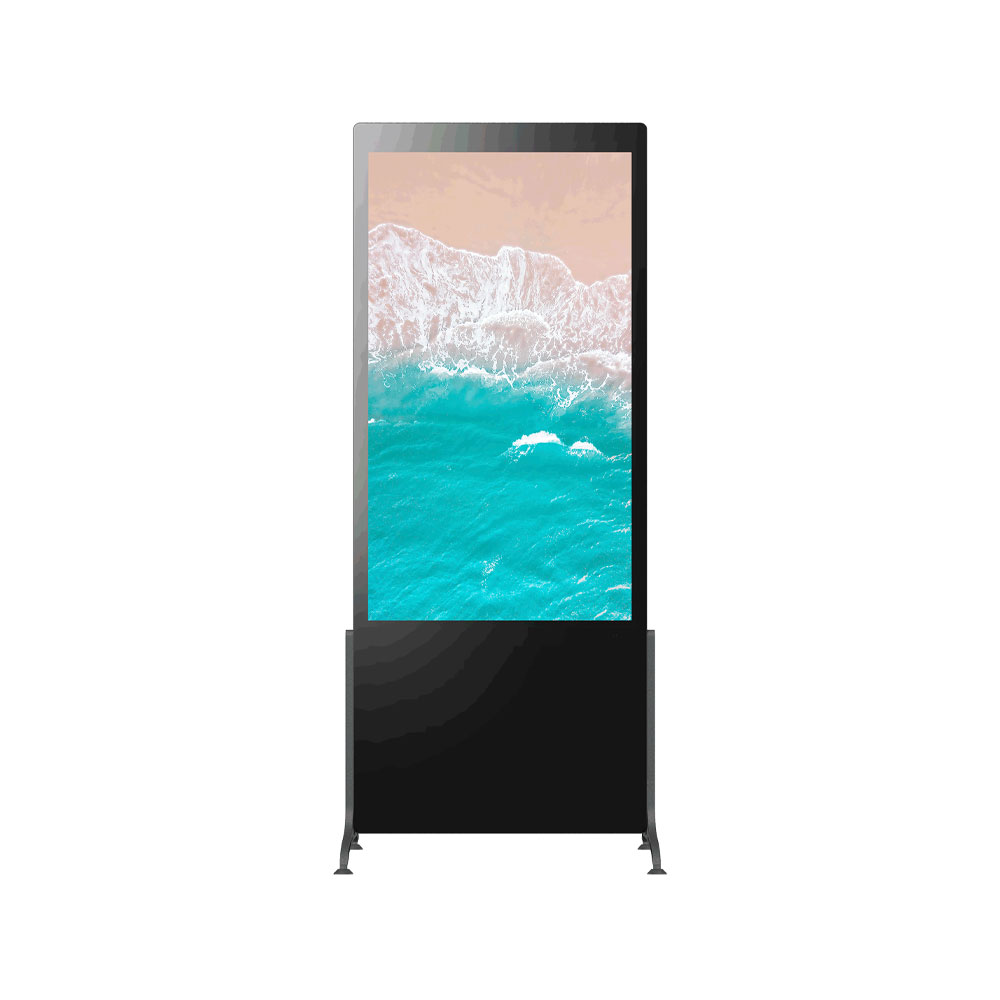

DAHUA-4120 | 55" standing digital signage
DAHUA-4120DHI-LDV55-SAI400K55" standing digital signage
DAHUA-4120
DAHUA-4120_B

55" standing digital signage

DAHUA-4120

DHI-LDV55-SAI400K

This product is discontinued
It is replaced by the new version DAHUA-4123

Main features

  • 55" Dahua digital floor standing sign
  • Industrial grade design, metal housing, 3mm tempered glass
  • 4-core processor
  • Dahua MPS provides unified remote management for system integrators and media operators
  • Integrated multimedia playback software
  • Supports images, audio, video, pdf, IP cameras, time, weather, etc.

Specifications

  • 55" TFT-LCD display
  • 9:16 aspect ratio
  • 2160x3840 resolution
  • LED backlight
  • 10 bit color depth (1070 million colors)
  • 350 nits brightness
  • 1000:1 contrast ratio
  • 178°(H), 178°(V) viewing angle
  • 8 ms response time
  • 1.6GHz Quad-core Cortex-A17 processor
  • Android 8.1 operating system
  • 2GB RAM
  • 16GB internal storage
  • Decoding capability: 1 channel 4K or 4 channels 1080P
  • Input interface: 1 RJ45 port, 2 USB, 1 TF slot, 1 HDMI, 1 audio input
  • External Control: Infrared, RJ45 (LAN), USB
  • Built-in two 5W speakers
  • Power supply: 100V ~ 240V AC (±10%), 50/60Hz
  • Power consumption: <0.5W (standby), 120W (typical)
  • Operating temperature 0°C ~ +40°C (32°F ~ +40°F)
  • Relative humidity 10% ~ 85%.
  • Not suitable for outdoor use
  • Dimensions: 766 (W) x 1958 (H) x 450 mm (with pedestal)
  • Net weight: 60 kg
  • Gross weight: 75 kg
