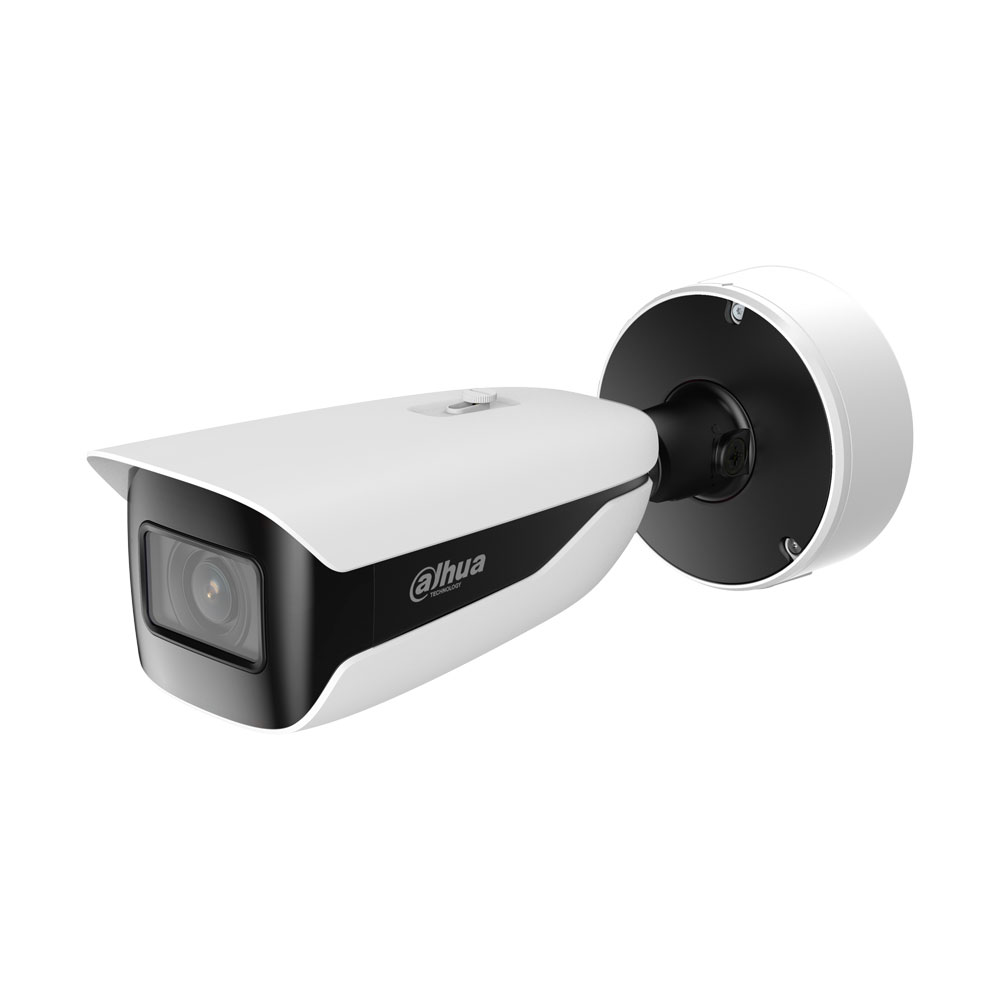

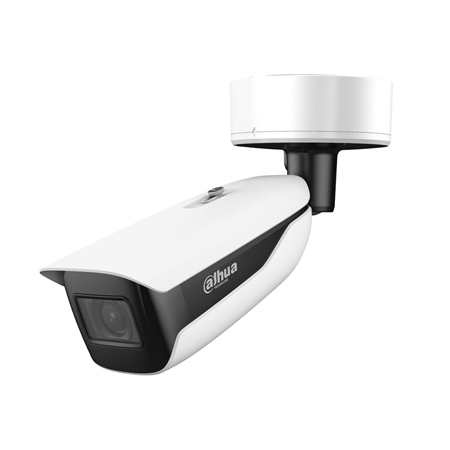

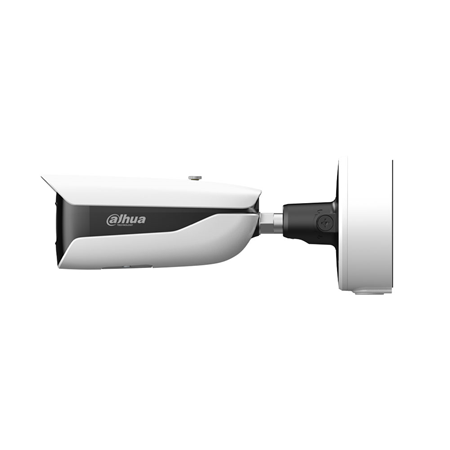

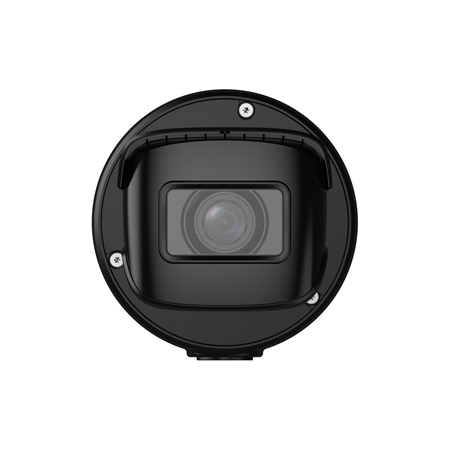

4MP Dahua WizMind 7 Series IP camera with motorised varifocal lens

Technical Features

• Dahua WizMind 7 Series IP Camera
• 4 MP 1/1.8" CMOS sensor with 2688 x 1520 maximum resolution
• Day/Night Auto(ICR), color and B/W mode
• Minimum illumination 0.0006 lux color at F1.6, 0.0003 lux B/W at F1.6 and 0 lux with illuminator on
• Integrated IR illumination with a range of up to 120 m (120 ft)
• 4 IR LEDs with automatic control
• Varifocal lens 8~32 mm motorized
• Maximum aperture F1.6
• 43°~15° horizontal, 24°~9° vertical and 50°~17° diagonal field of view
• Automatic iris control with P-Iris
• Minimum focusing distance of 1.5 m

Video

• H.265, H.264, H.264H, H.264B and MJPEG compression in substream
• Smart Codec Smart H.265+ and Smart H.264+
• 5 simultaneous streams
• Stream 1: 4MP (2688 x 1520) at 50/60 fps
• Stream 2: 1080P (1920 x 1080) at 25/30 fps
• Stream 3: 1080P (1920 x 1080) at 25/30 fps
• Stream 4: 1080P (1920 x 1080) at 25/30 fps
• Stream 5: D1 (704 x 576) @ 25 fps / D1 (704 x 480) @ 30 fps
• Resolutions 4MP (2688 x 1520), 3MP (2048 x 1536), 3MP (2304 x 1296), 1080P (1920 x 1080), 1.3MP (1280 x 960), 720P (1280 x 720), D1 and CIF
• CBR and VBR bitrate control
• Bitrate H.264 from 32 kbps to 10240 kbps and H.265 from 12 kbps to 10240 kbps

Features

• BLC, HLC and real WDR of 150 dB
• SSA
• Auto, natural, street lamp, outdoor, manual, manual and custom regional white balance
• Automatic gain control
• 3D NR noise reduction
• Configurable motion detection in 4 rectangular areas
• ROI in 4 areas
• Electronic Image Stabilization EIS
• Smart Illumination
• Defog
• Image rotation 0°/90°/180°/270
• Mirror
• 8-area privacy mask
• Time-Division Exposure
• Privacy protection by automatic face and body masking

Intelligent functions

• IVS with line crossing, intrusion and fast motion with human, animal and vehicle classification
• Loitering, people-meeting and parking detection
• Long distance mode and self-learning for false alarm filtering
• Face detection with facial attribute tracking, capture, optimization and extraction
• Facial recognition with up to 5 databases and up to 200,000 facial images
• People counting by line crossing, area and queue management with export of reports
• Video metadata for people, motor vehicles and non-motorized vehicles
• ANPR with capture of license plate, type, color and make of vehicle
• License plate recognition at speeds of up to 60 km/h
• Parking space management
• PPE detection with configurable attributes and auto-learning
• AcuPick
• Smart Search with intelligent NVR
• Heat map
• Enables two intelligent functions simultaneously

Audio

• 1 audio input via RCA port
• 1 audio output per RCA port
• G.711a, G.711Mu, PCM, G.726 and G.723 audio compression

Storage

• MicroSD card slot up to 1 TB (card not included)
• FTP, SFTP and NAS storage

Alarms

• 3 alarm inputs
• 2 alarm outputs
• Alarm events by SD card, network, illegal access, motion detection, video tampering, IVS, audio, defocus, external alarm, face recognition, metadata, ANPR, people counting, security exception and PPE detection

Communication interface

• 1 RS485 port with 1200 bps to 115200 bps rate
• 1 CVBS analog output via BNC
• 12 V DC power output with 165 mA maximum current and 700 mA peak current

Network

• 10/100/1000 Base-T RJ45 interface
• Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P and Auto Register
• ONVIF Profile S, Profile G, Profile T and Profile M, and CGI support
• SDK and API
• Up to 20 users
• Browsers IE11 or higher, Chrome 88.0.4324.190 or higher and Firefox 47.0.2 or higher
• SmartPSS Lite, DSS and DMSS management software
• Mobile app for iOS and Android
• Security features Trusted execution, Digest, security logs, WSSE, account lockout, Syslog, 802.1x, IP/MAC filtering, HTTPS, Trusted upgrade, Trusted boot and X.509 certificates

Power supply

• Power supply 12 V DC, 24 V AC, PoE+ (802.3at) and ePoE
• Basic power consumption 7.3 W at 12 V DC, 10.2 W at 24 V AC and 10.6 W via PoE
• Maximum power consumption with ICR and IR of 18.2 W at 12 V DC, 24.2 W at 24 V AC and 24.3 W per PoE
• Heating consumption of 3 W at 12 V DC, 4.6 W at 24 V AC and 5.47 W per PoE
• Input voltage tolerance of ±30%.

Environmental

• Operating temperature -40 °C to +65 °C (-40 °C to +65 °C)
• Operating humidity up to 95%.
• Storage temperature -40 °C to +65 °C (-40 °C to +65 °C)
• 10% to 95% storage humidity
• IP67 and IK10 protection
• Optional corrosion protection

Physical characteristics

• Metal and plastic housing
• Ceiling, wall and pole installation with optional accessory as per manufacturer's drawing
• 3AXIS: 0°~360° (PAN), 0°~90° (TILT), 0°~360° (Rotation)
• Dimensions: 345,6 x 134,2 x 135,1 mm
• Net weight: 1.65 kg
• Gross weight: 2.73 kg

Contents

• IR Bullet IP Camera DAHUA-4715 (DH-IPC-HFW7442HP-Z-0832-DC12AC24V-X)

Certifications and standards

• CE-LVD EN62368-1
• CE-EMC 2014/30/EU
• FCC Part 15 Subpart B
• UL62368-1 and CAN/CSA C22.2 No. 62368-1-14
• UL 50E NEMA Type 4X optional
• DORI according to EN-62676-4
