6MP WizColor Fixed-focal Network Camera

Name: DAHUA-4834
SKU: DH-IPC-HFW2649TLP-S-LED-0280B-PRO
Price: 213.067 EUR
Availability: InStock
Rating: 5 (35 reviews)

DAHUA-4834

DH-IPC-HFW2649TLP-S-LED-0280B-PRO

Main features

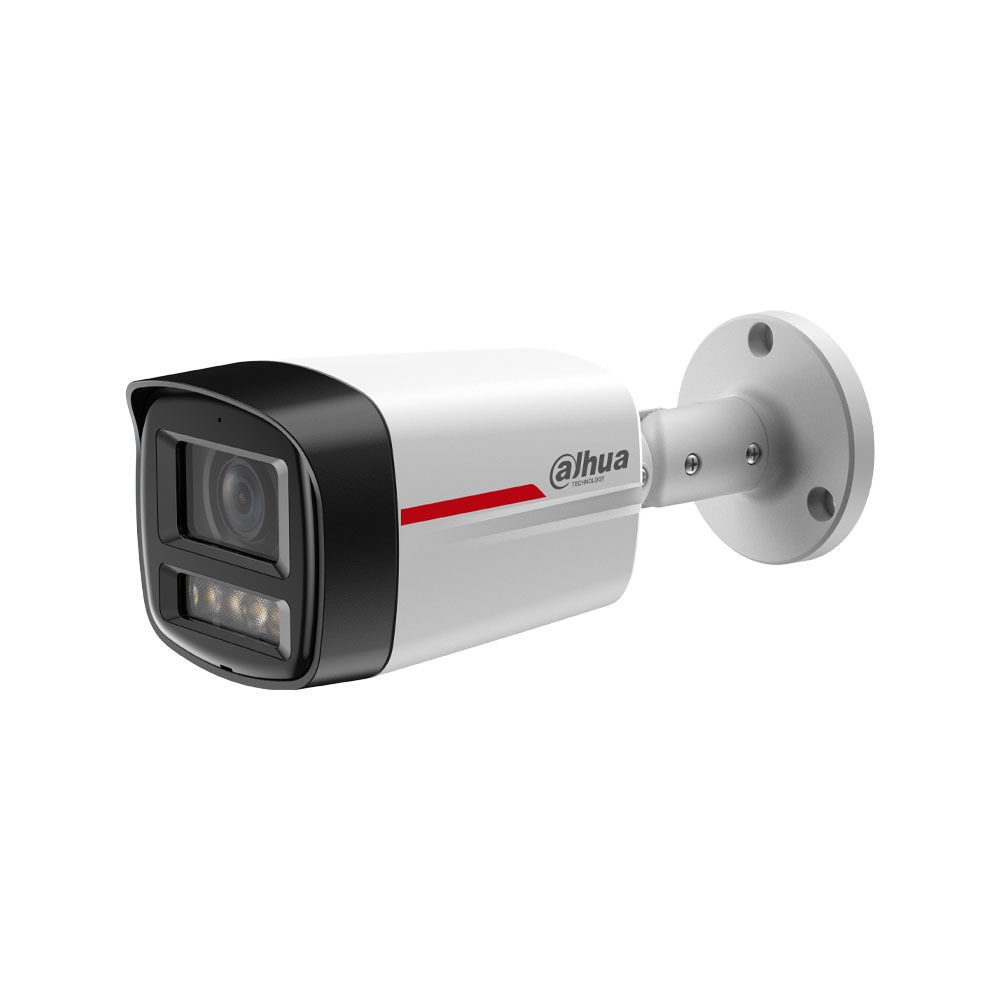

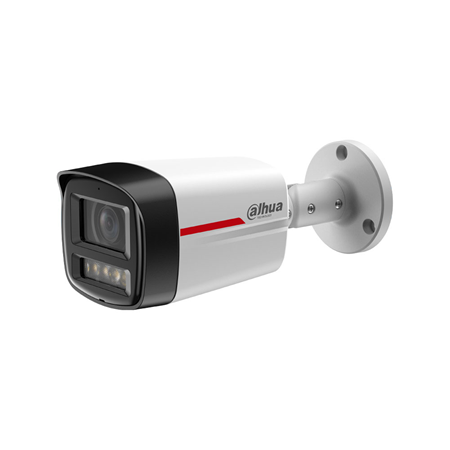

Dahua 6MP bullet IP camera with 2.8 mm Fixed lens
0.0007 lux
Warm illumination up to 50 m
H.265+ compression
WizColor technology
WDR 120 dB
Perimeter protection and SMD Plus
Built-in microphone
MicroSD slot
PoE or 12 VDC power supply
IP67 protection

Specifications

1/1.8" CMOS image sensor with progressive scan
Maximum resolution: 3288 × 1850 (6MP)
Fixed lens 2.8 mm
Angle of view: 92° (H), 51° (V), 107° (D)
Aperture: F1.0
Day/Night Mode: Color / B/W, with ICR Filter
Minimum illumination: 0.0007 lux (F1.0)
White illumination: 4 LEDs, up to 50 m (164 ft.)
WDR 120 dB, 3D NR, BLC, HLC, Smart Illumination, ROI, LDC
Compression: H.265+, H.265, H.264+, H.264, MJPEG (substream)
Stream 1: 6MP, 5MP, 4MP, 3MP, 2304×1296, 1080P, 1.3MP, 720P (1~20/25/30 ips)
Stream 2: D1, CIF, VGA (1~25/30 ips)
Built-in microphone
G.711a/u, G.726, PCM audio compression
Intelligent detection: intrusion, line crossing, human and vehicle classification
Intelligent features: SMD Plus, Smart Search with NVR support
Events: motion detection, tampering, audio, SD alarm, network, video
Privacy masks: 4 zones
Storage: MicroSD slot up to 256 GB (card not included), NAS, FTP/SFTP
Network protocols: IPv4/IPv6, HTTP, TCP, UDP, RTP, RTSP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, UPnP, Multicast, ICMP, IGMP, PPPoE, P2P, Bonjour
Network interface: 1 × RJ45 10/100 Mbps
Compatibility: ONVIF (S, G, T), CGI
Clients: Smart PSS Lite, DSS, DMSS
Supported Browsers: IE, Chrome, Firefox
Security: HTTPS, digest, WSSE, IP/MAC filtering, 802.1x, trusted boot/execution/upgrade, X.509 certificates, syslog
Power supply: 12 VDC ±30 %, PoE (802.3af)
Maximum power consumption: 6.1 W (12 VDC), 7.4 W (PoE)
Operating temperature: -40 °C to +60 °C (-40 °C to +60 °C)
Storage temperature: -40 °C to +60 °C (-40 °F to +60 °C)
Operating and storage humidity: ≤95 % non-condensing
IP67 protection
Metal housing
Dimensions: 197.9 × 80.2 × 76.2 mm (197.9 × 80.2 × 76.2 mm)
Net weight: 0.57 kg
Gross weight: 0.72 kg

REFERENCE / MODEL	DAHUA-4834 / DH-IPC-HFW2649TLP-S-LED-0280B-PRO
Resolution	6MP
Audio	Microphone
IR Distance	41-80m
Ingress protection	IP67
Lens	2.8 mm
Special Protection	No
Sensor	1/1.8 CMOS
StarLight	StarLight
WDR (Backlight)	WDR (120dB)
Codec	H.264 \|\| H.264+ \|\| H.265 \|\| H.265+
PoE	PoE
SD Slot	Yes
Colour	White
Installation environment	Outdoor
Material	Metal
Alarm channels	No
Connectivity	IP \|\| YES (P2P)
AI Series	WizColor \|\| WizSense
Intelligent functions	Perimeter protection \|\| SMD Plus
Compatibility	Onvif

Documentation

	Language	Name	Type	Action
	EN		Manual
	EN		Manual
	EN		Self-generated File
