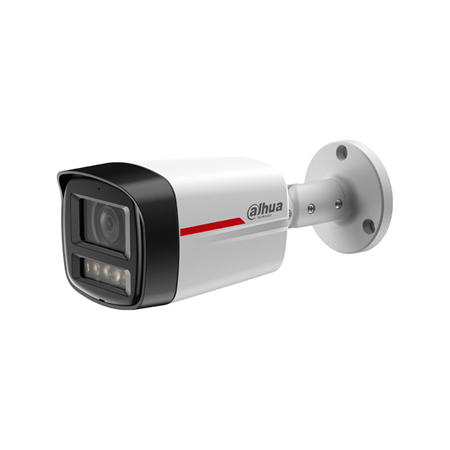

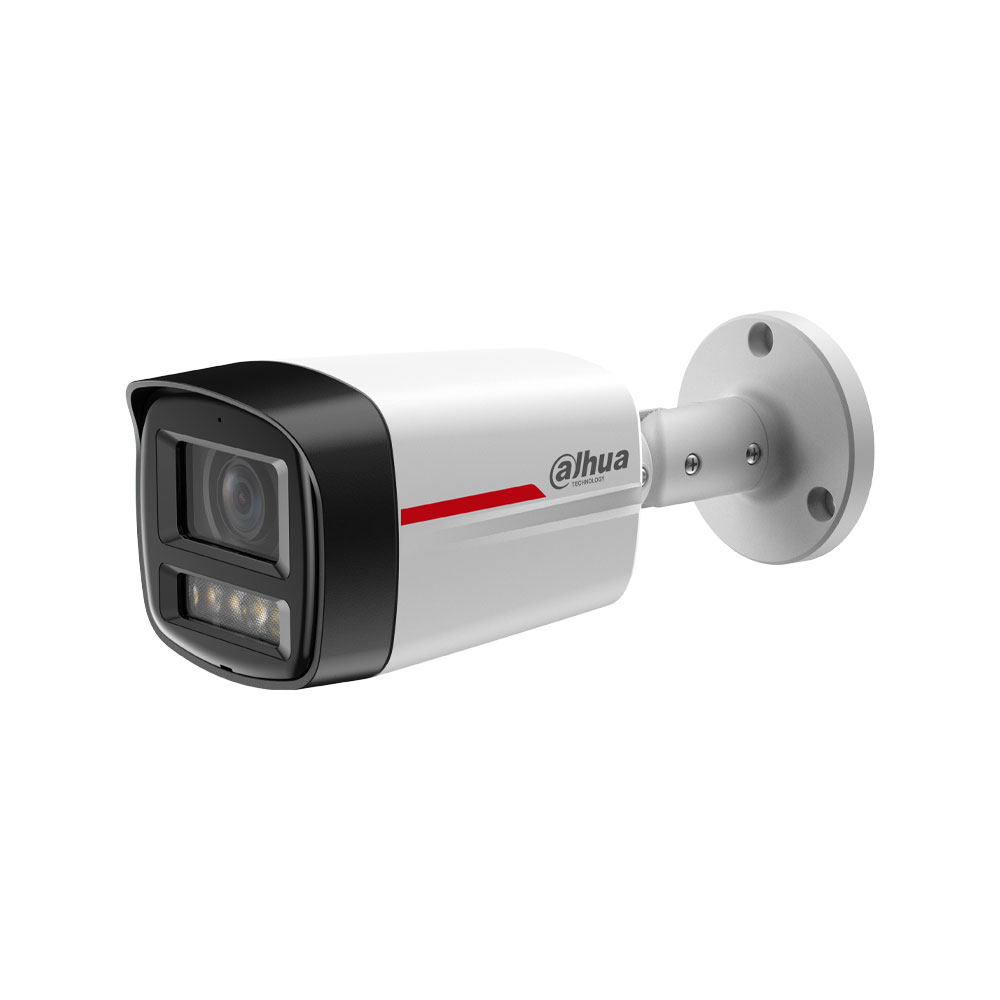

WizColor 8MP IP camera for outdoor applications

Name: DAHUA-4835
SKU: DH-IPC-HFW2849TLP-S-LED-0280B-PRO
Availability: InStock
Rating: 5 (36 reviews)

DAHUA-4835

DH-IPC-HFW2849TLP-S-LED-0280B-PRO

Main features

Dahua 8MP bullet IP camera
Fixed lens 2.8 mm
0.0008 lux
Warm illumination up to 50 m
H.265+ compression
WizColor technology
WDR 120 dB
Perimeter protection and SMD Plus
Built-in microphone
MicroSD slot
PoE or 12 VDC power supply
IP67 protection

Specifications

1/1.8" progressive scan CMOS sensor
Maximum resolution: 3840 × 2160 (8MP)
Fixed lens 2.8 mm
Angle of view: 110° (H), 59° (V), 131° (D)
Aperture: F1.0
Day/Night Mode: Color / B/W, with ICR Filter
Minimum illumination: 0.0008 lux (F1.0)
Warm illumination: up to 50 m
WDR 120 dB, BLC, HLC, 3D NR, ROI, Smart Illumination, LDC
Compression: H.265+, H.265, H.264+, H.264, MJPEG (substream)
Supported resolutions: 8MP (3840×2160), 6MP (3072×2048), 5MP (3072×1728/2880×1620), 4MP (2688×1520), 3MP (2048×1536/2304×1296), 1080P, 1.3MP, 720P, D1, VGA, CIF
Stream 1: 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P (1~20/25/30 ips)
Stream 2: D1, CIF, VGA (1~25/30 ips)
Built-in microphone
Audio: G.711a/u, PCM, G.726
Intelligent detection: line crossing, intrusion (with person and vehicle classification).
Smart features: SMD Plus, Smart Search (requires compatible NVR).
Events: motion, tampering, audio, SD failure, IP conflict, network disconnection, illegal access, voltage
Privacy masks: up to 4 zones
Storage: MicroSD slot up to 256 GB (card not included), FTP/SFTP, NAS
Protocols: IPv4/IPv6, HTTP, TCP, UDP, RTP, RTSP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, UPnP, Multicast, ICMP, IGMP, NFS, PPPoE, P2P, Bonjour
ONVIF support: S, G, T / CGI profiles.
Clients: Smart PSS Lite, DSS, DMSS
Browsers: IE, Chrome, Firefox
Security: HTTPS, digest, WSSE, IP/MAC filtering, 802.1x, secure boot/run/update, X.509, syslog
Network interface: 1 × RJ45 10/100 Mbps
Power supply: 12 VDC ±30 %, PoE (802.3af)
Maximum power consumption: 6.1 W (12 VDC), 7.4 W (PoE)
Operating temperature: -40 °C to +60 °C (-40 °C to +60 °C)
Storage temperature: -40 °C to +60 °C (-40 °C to +60 °C)
Operating and storage humidity: ≤95% noncondensing
IP67 protection
Metal housing
Dimensions: 197.9 × 80.2 × 76.2 mm (197.9 × 80.2 × 76.2 mm)
Net weight: 0.57 kg
Gross weight: 0.72 kg

REFERENCE / MODEL	DAHUA-4835 / DH-IPC-HFW2849TLP-S-LED-0280B-PRO
Resolution	8MP
Audio	Microphone
IR Distance	41-80m
Ingress protection	IP67
Lens	2.8 mm
Special Protection	No
Sensor	1/1.8 CMOS
StarLight	StarLight
WDR (Backlight)	WDR (120dB)
Codec	H.264, H.264+, H.265, H.265+
PoE	PoE
SD Slot	Yes
Colour	White
Installation environment	Outdoor
Material	Metal
Alarm channels	No
Connectivity	IP, P2P
AI Series	WizColor, WizSense
Intelligent functions	Perimeter protection, SMD Plus
Compatibility	Onvif

Documentation

	Language	Name	Type	Action
	EN		Manual
	EN		Self-generated File
