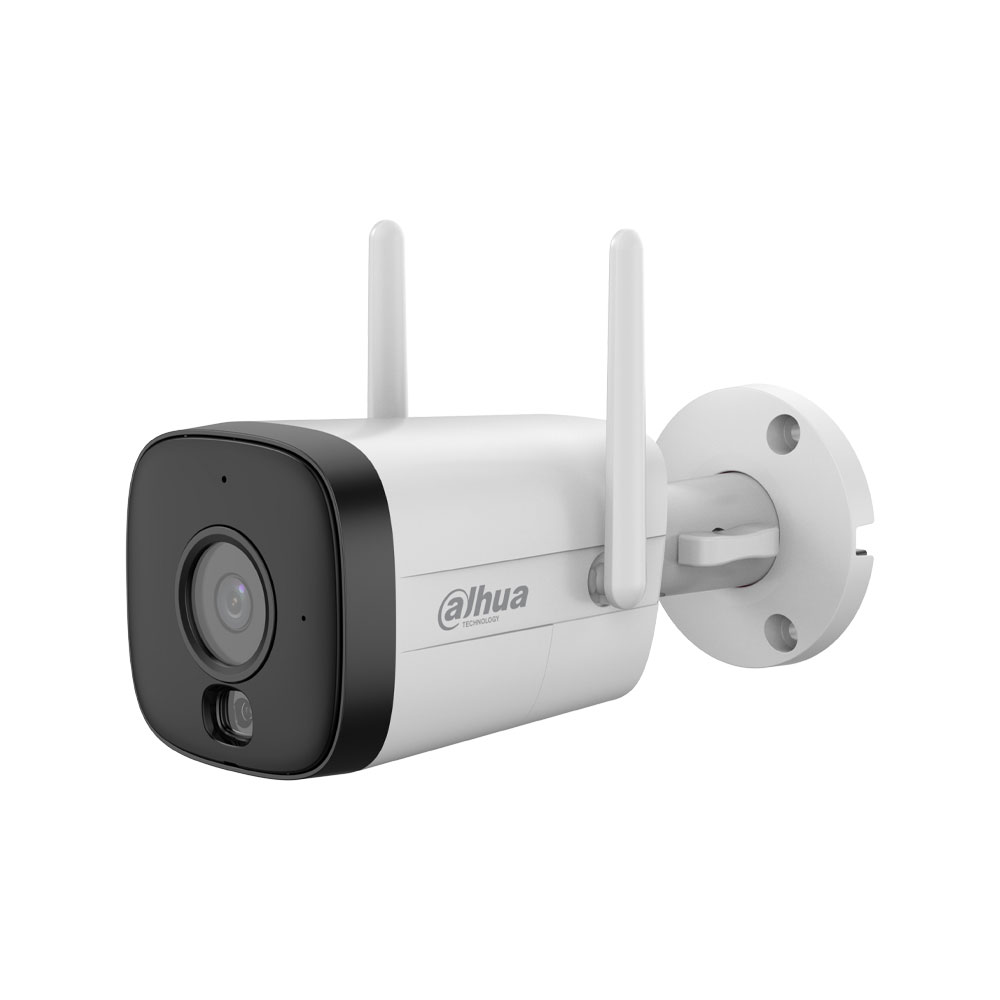

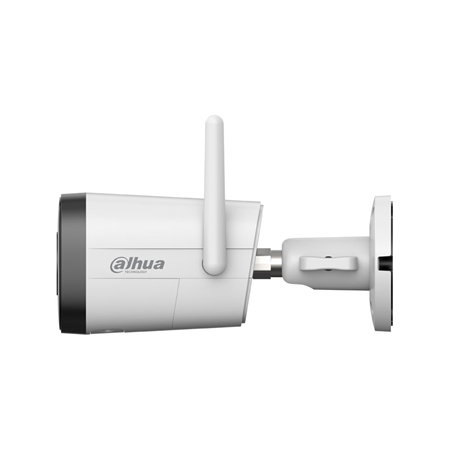

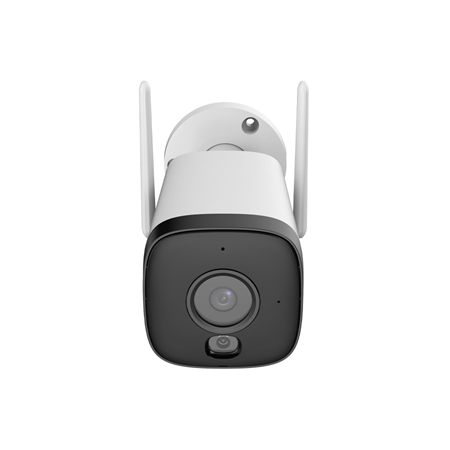

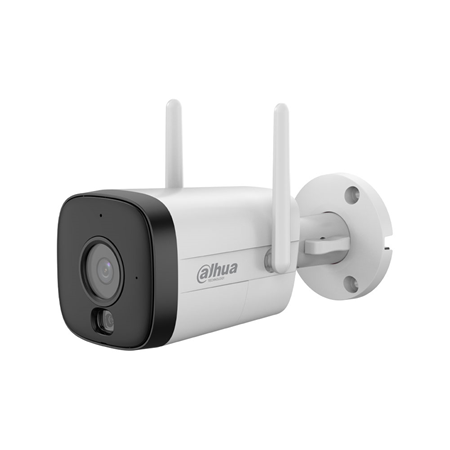

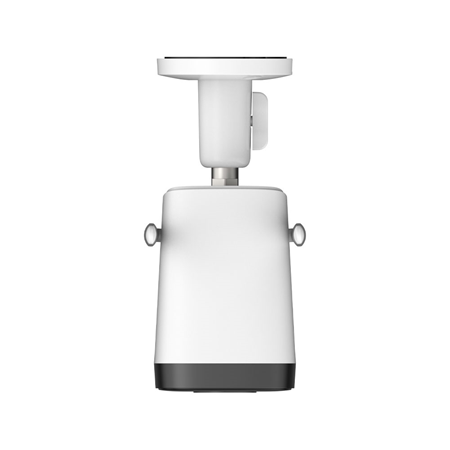

Dahua 3MP WiFi IP Bullet Camera with Smart Dual Light

DAHUA-4869

DH-IPC-HFW1339DTK1P-SAW-IL-0280B

Main features

Dahua WiFi IP bullet camera
3MP@25/30 ips, H.265 compression
ICR, 0.0005 lux
Smart Dual Light up to 30 m
Fixed lens 2.8 mm
DWDR, detection of people and vehicles
Built-in microphone
MicroSD slot
IP67
12 VDC power supply.

Specifications

1/2.8" CMOS sensor with maximum resolution 2304 × 1296
Fixed lens 2.8mm (F1.6)
Angle of view: 103° (H), 55° (V), 123° (D)
ICR filter with day/night mode
0.005 lux (color) / 0.0005 lux (B/W) / 0 lux with illuminator
Smart Dual LightIR and warm light up to 30 m (100 ft)
Multi-cell illuminator (1 IR + white combined)
Video compression: H.265, H.264H, H.264, H.264B
Resolutions: 3MP (2304×1296), substream 640×360
Stream 1: 2304×1296 (1-25/30 ips)
Stream 2: 640×360 (1-25/30 ips)
Digital WDR (DWDR), image rotation 0°/180°, motion detection (4 zones).
Intelligent functions:
- People detection
- Vehicle detection
Abnormal sound alarm
Built-in microphone
Audio: G.711a, G.711Mu, PCM compression
MicroSD slot up to 256 GB (card not included)
Network interface: RJ-45 (10/100 Base-T)
Connectivity: Wi-Fi 6 IEEE 802.11b/g/n/ax (2.4 GHz), Bluetooth pairing
Interoperability: ONVIF (Profile S/G/T), CGI
Compatible software: Smart PSS Lite, DSS, DMSS
Mobile clients: Android / iOS
Built-in reset button
Power supply: 12 VDC (±30 %)
Power consumption: 2.2 W (basic) / 4.1 W (max.)
Operating temperature: -30 °C to +50 °C
Humidity: ≤95 % (non-condensing)
Protection rating: IP67
Material: metal + plastic
Dimensions: 172.4 × 83.3 × 75.0 mm (172.4 × 83.3 × 75.0 mm)
Net weight: 0.3 kg

REFERENCE / MODEL	DAHUA-4869 / DH-IPC-HFW1339DTK1P-SAW-IL-0280B
Resolution	3MP
Series	Smart Dual Light
Audio	Microphone
IR Distance	21-40m
Ingress protection	IP67
Lens	2.8 mm
Special Protection	No
Sensor	1/2.8" CMOS
StarLight	StarLight
WDR (Backlight)	D-WDR
Codec	H.264, H.265
PoE	No
SD Slot	Yes
Colour	White
Installation environment	Outdoor
Material	Metal, Plastic
Alarm channels	No
Connectivity	IP, WiFi
Intelligent functions	SMD
Compatibility	Onvif

Documentation

	Language	Name	Type	Action
	EN		Manual
	EN		Self-generated File
