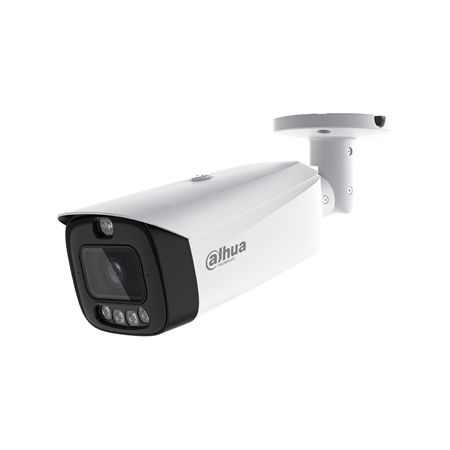

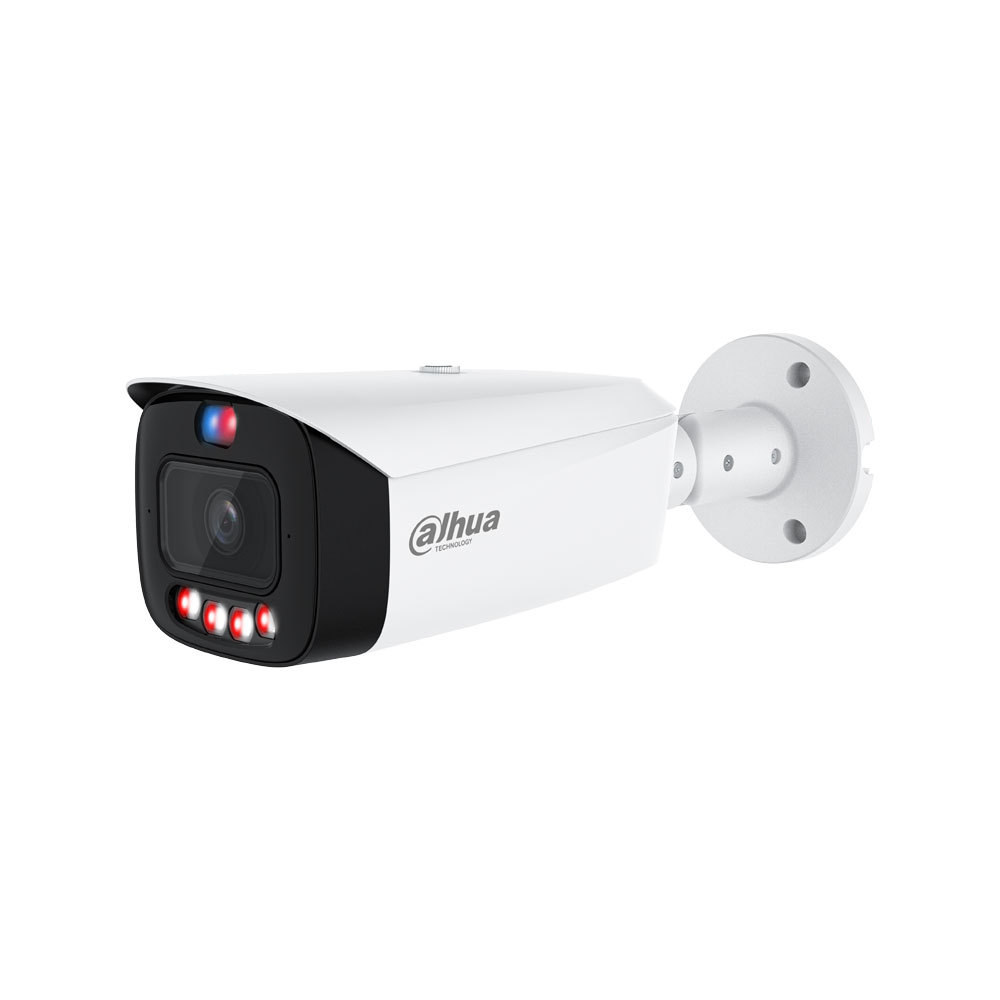

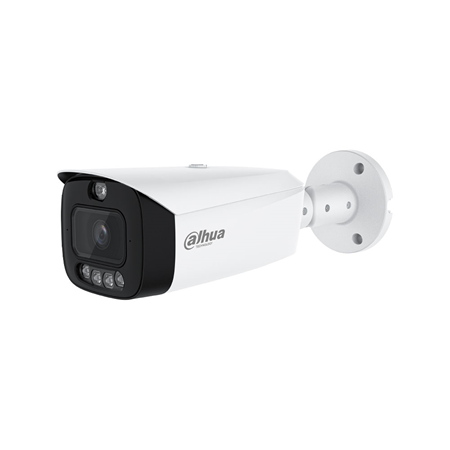

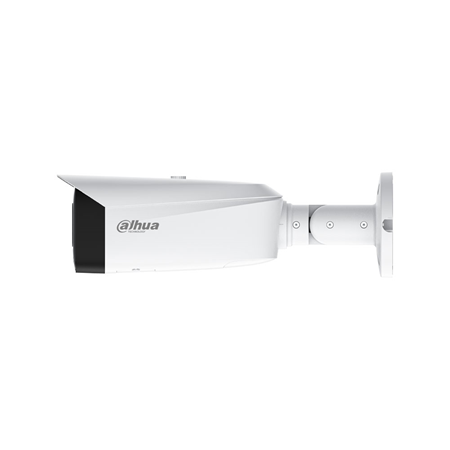

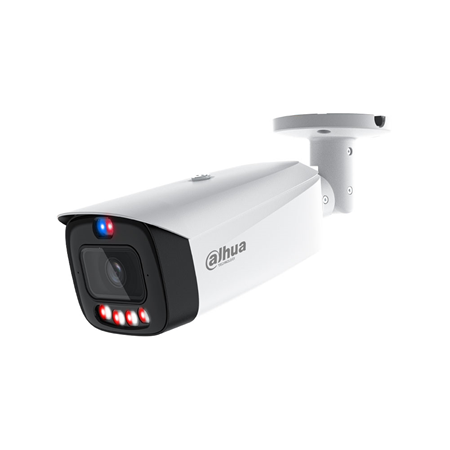

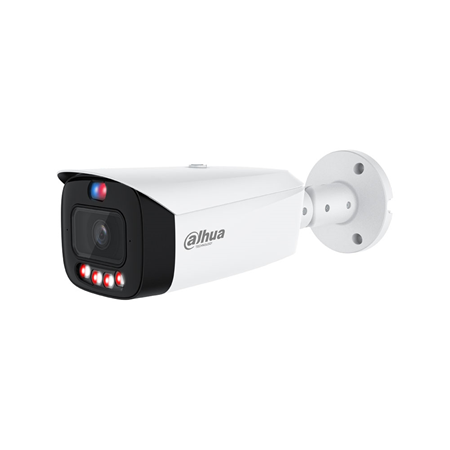

Dahua WizColor TiOC PRO IP Bullet Camera

Name: DAHUA-4906
SKU: DH-IPC-HFW3849T1P-AS-PV-0280B-PRO
Availability: InStock
Rating: 5 (7 reviews)

DAHUA-4906

DH-IPC-HFW3849T1P-AS-PV-0280B-PRO

View previous model

8MP Smart Dual Light outdoor IP camera DAHUA-4436

Main features

IP Camera Dahua WizColor TiOC PRO
8MP@25ips, AI H.265
ICR, 0.0008 lux, Smart Dual Light up to 50 m
Fixed lens 2.8 mm
WDR 120dB, 3D-NR, ROI
Line crossing and intrusion detection with person and vehicle classification, SMD 4.0, AcuPick, AI SSA
Active deterrence with red/blue light and audio
Two-way audio
Alarm input/output
MicroSD slot, RJ-45
ONVIF
IP67, 3AXIS, 12V DC or PoE+.

Specifications

1/1.8" CMOS sensor with 3840 × 2160 maximum resolution
Fixed lens 2.8mm or 3.6mm (F1.0)
Angle of view: 109° (H), 59° (V), 131° (D) [2.8 mm]; 93° (H), 50° (V), 111° (D) [3.6 mm].
ICR filter with day/night mode
0.0008 lux (color) / 0.0004 lux (B/W) / 0 lux with IR or white light
IR and white light illumination up to 50 m
H.265, H.264 and MJPEG video compression (substream)
Smart Codec: Smart H.265+ / Smart H.264+
AI Encoding: AI H.265 / AI H.264
Resolutions: 8MP (3840×2160), 6MP, 5MP, 4MP, 4MP, 3MP, 1080P, 720P, D1, VGA, CIF
Stream 1: 8MP (1~25/30 ips)
Stream 2: 1080P (1~25/30 fps)
Stream 3: 1080P (1~25/30 ips)
Image functions: WDR 120dB, BLC, HLC, 3D NR, ROI, rotation, mirror, LDC, privacy mask (8 zones)
Intelligent dual illumination with white light and IR
Intelligent video functions:
- Perimeter protection: line crossing and intrusion with people and vehicle detection.
- SMD 4.0
- AcuPick
- AI SSA (scene adaptation)
Video analytics event alarms:
- Motion detection, video tampering, audio, scene change, network anomaly, IP conflict, illegal access, SD failure, intrusion, line crossing, SMD, security exception, alarm input
Bi-directional audio: RCA input/output, dual microphones and speaker integrated
Active light and voice deterrent (red and blue, customizable messages)
MicroSD slot up to 512 GB (card not included)
Network interface: RJ-45 (10/100 Base-T)
Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP, P2P
ONVIF (Profile S/G/T), CGI support
Software: Smart PSS Lite, DSS, DMSS, DoLynk Care
Mobile clients: Android / iOS
Power supply: 12 VDC ±30 % or PoE+ (802.3at)
Max. power consumption: 11.8 W (12 VDC) / 15.1 W (PoE+)
Operating temperature: -40 °C to +60 °C (-40 °F to +60 °C)
Humidity: ≤95 % (non-condensing)
IP67 protection
Metal and plastic housing
Dimensions: 288.4 × 94.4 × 84.7 mm (288.4 × 94.4 × 84.7 mm)
Net weight: 1.0 kg
Gross weight: 1.3 kg
3AXIS: 0°~360° (PAN), 0°~90° (TILT), 0°~360° (Rotation)
Certifications: CE-LVD, CE-EMC

REFERENCE / MODEL	DAHUA-4906 / DH-IPC-HFW3849T1P-AS-PV-0280B-PRO
Resolution	8MP
Series	Smart Dual Light, TiOC, TiOC Pro
Audio	1 input / 1 output, Microphone, Speaker, Two-way
IR Distance	41-80m
Ingress protection	IP67
Lens	2.8 mm
Special Protection	No
Sensor	1/1.8 CMOS
StarLight	FullColor
WDR (Backlight)	WDR (120dB)
Codec	H.264, H.264+, H.265, H.265+
PoE	PoE
SD Slot	Yes
Colour	White
Installation environment	Outdoor
Material	Metal
Alarm channels	1 input / 1 output
Connectivity	IP, P2P
AI Series	WizColor, WizSense
Intelligent functions	AcuPick, Perimeter protection, SMD 4.0
Compatibility	Onvif

Documentation

	Language	Name	Type	Action
	EN		Manual
	EN		Self-generated File
