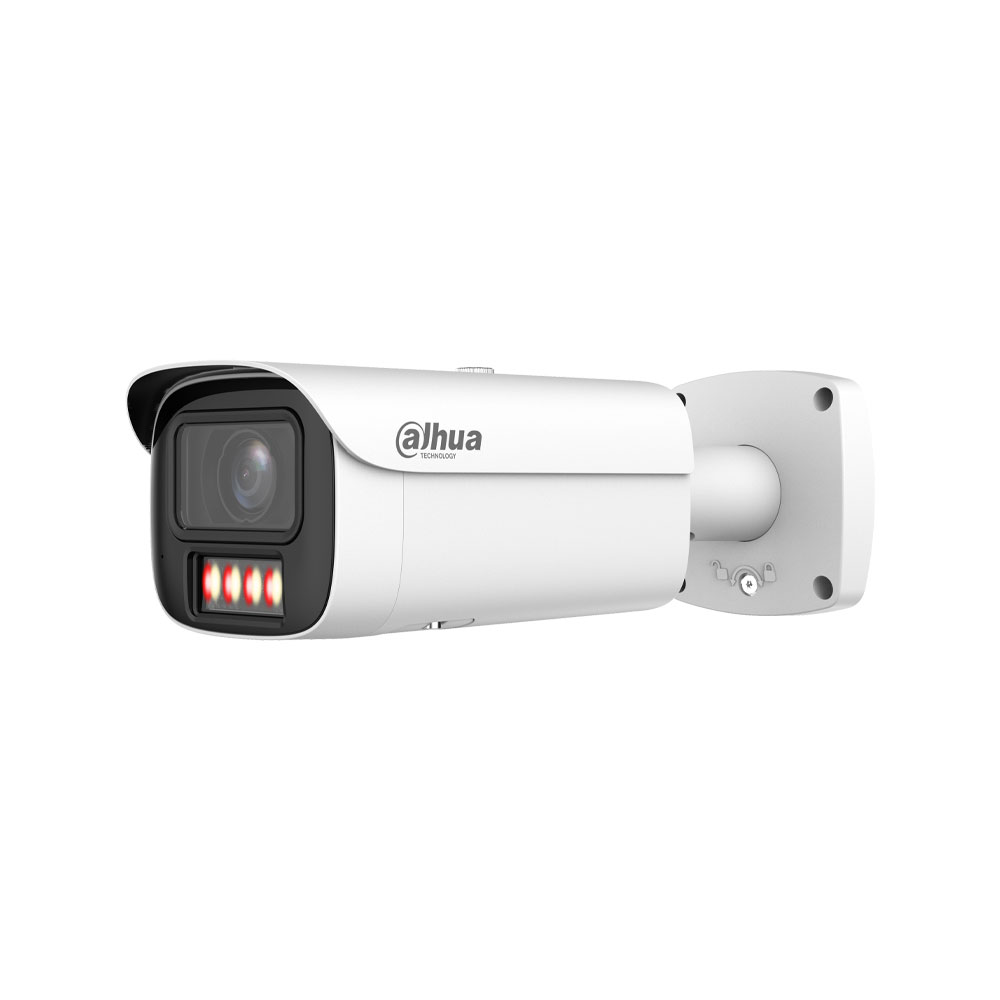

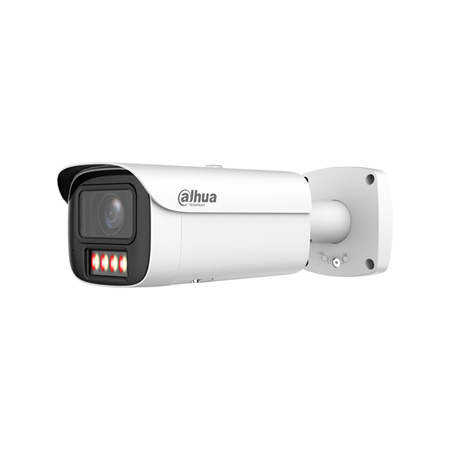

5MP Smart Dual Light Dahua WizMind 5 Series IP camera for outdoor use

Technical Features

• Bullet IP camera Smart Dual Light Dahua WizMind 5 Series
• 1/2.7" 5MP CMOS sensor
• Maximum resolution 2960 × 1668
• Min. illumination 0.0009 lux color / 0.0005 lux B/W / 0 lux with illuminator
• IR illumination up to 60 m
• Warm light up to 60 m
• 4 multi-core LEDs (IR + warm light)
• Varifocal lens motorized 2.7-13.5 mm
• Aperture F1.6
• Angle of view H: 110°-32°; V: 57°-18°; D: 134°-37°
• Minimum focusing distance 0.3 m

Video Stream

• H.265; H.264; H.264H; H.264B; MJPEG (substream) Compression
• AI H.265; AI H.264; Smart H.265+; Smart H.264+
• Stream 1: 2960 × 1668@1-25/30 ips
• Stream 2: 704 × 576@1-25 ips / 704 × 480@1-30 ips
• Stream 3: 1920 × 1080@1-25/30 ips
• Stream 4: 1280 × 720@1-25/30 ips
• Up to 4 simultaneous streams
• Bitrate H.264/H.265 3 kbps-16384 kbps
• VBR / CBR control

Features

• WDR 120 dB
• 3D NR
• BLC; HLC; SSA
• ROI up to 4 areas
• EIS
• Smart Dual Light
• Defog
• 0°/90°/180°/270° rotation
• Mirror
• Privacy masking 4 tiles or 8 blocks
• LDC
• Audible warning with 11 sounds and 10 custom sounds

Intelligent functions

• Perimeter protection (intrusion, line crossing, fast motion) with human, vehicle and animal classification from camera
• SMD 4.0 from camera
• AcuPick
• Face detection with attribute extraction
• People counting (line crossing, area and queue management)
• Heat map
• Video metadata
• Smart Search on NVR compatible

Audio

• Built-in microphone
• 1 audio input (RCA)
• 1 audio output (RCA)
• G.711a; G.711Mu; PCM; G.726; G.723 Compression

Alarms

• 2 alarm inputs (wet contact 3-5 VDC)
• 1 alarm output (wet contact 12 VDC 300 mA)

Storage

• MicroSD slot up to 1 TB (card not included)
• FTP; SFTP; NAS

Network

• RJ45 10/100 Base-T interface
• Protocols IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration
• ONVIF Profile S; Profile G; Profile T; Profile M; CGI
• Up to 20 simultaneous users
• DSS; DMSS; DoLynk Care Software

Power supply

• 12 VDC (±30%)
• PoE+ (802.3at)
• ePoE
• Maximum power consumption 22.1 W (PoE)

Environmental

• Operating temperature -40 °C to +60 °C (-40 °F to +60 °C)
• Humidity ≤95% non-condensing
• IP67 protection
• Vandal resistant IK10

Physical characteristics

• Metal housing
• Dimensions: 279.8 × 96.7 × 94.9 mm (279.8 × 96.7 × 94.9 mm)
• Net weight: 1.09 kg
• Gross weight: 1.39 kg
• 3AXIS: Pan 0°~360°, Tilt 0°~90°, Rotate 0°~360°

Contents

• 5MP Bullet IP Camera Smart Dual Light DAHUA-5090 (DH-IPC-HFW5559E1P-ZE-IL-27135)
