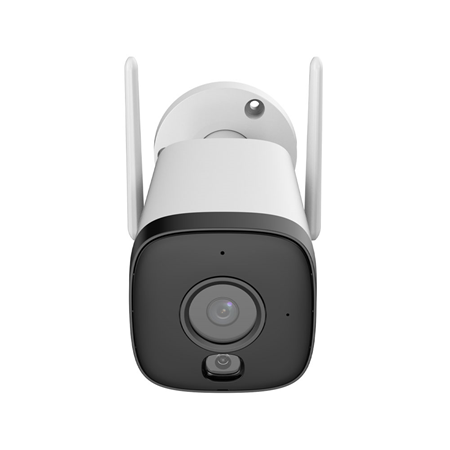

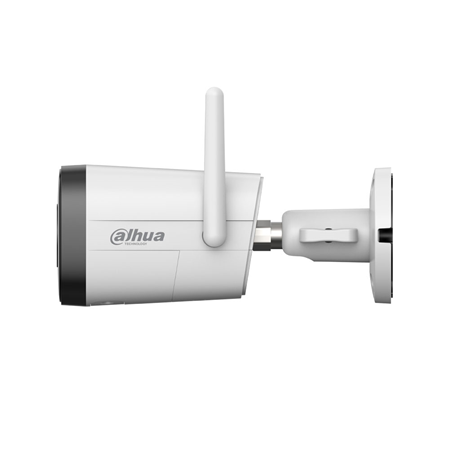

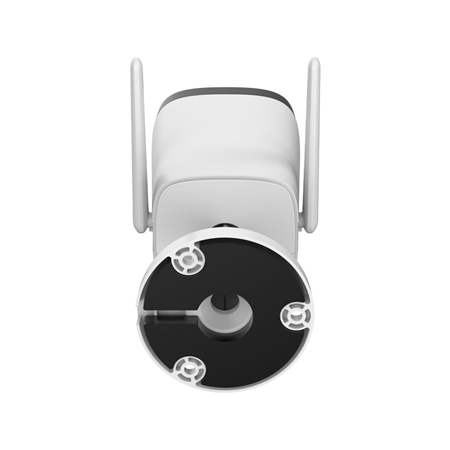

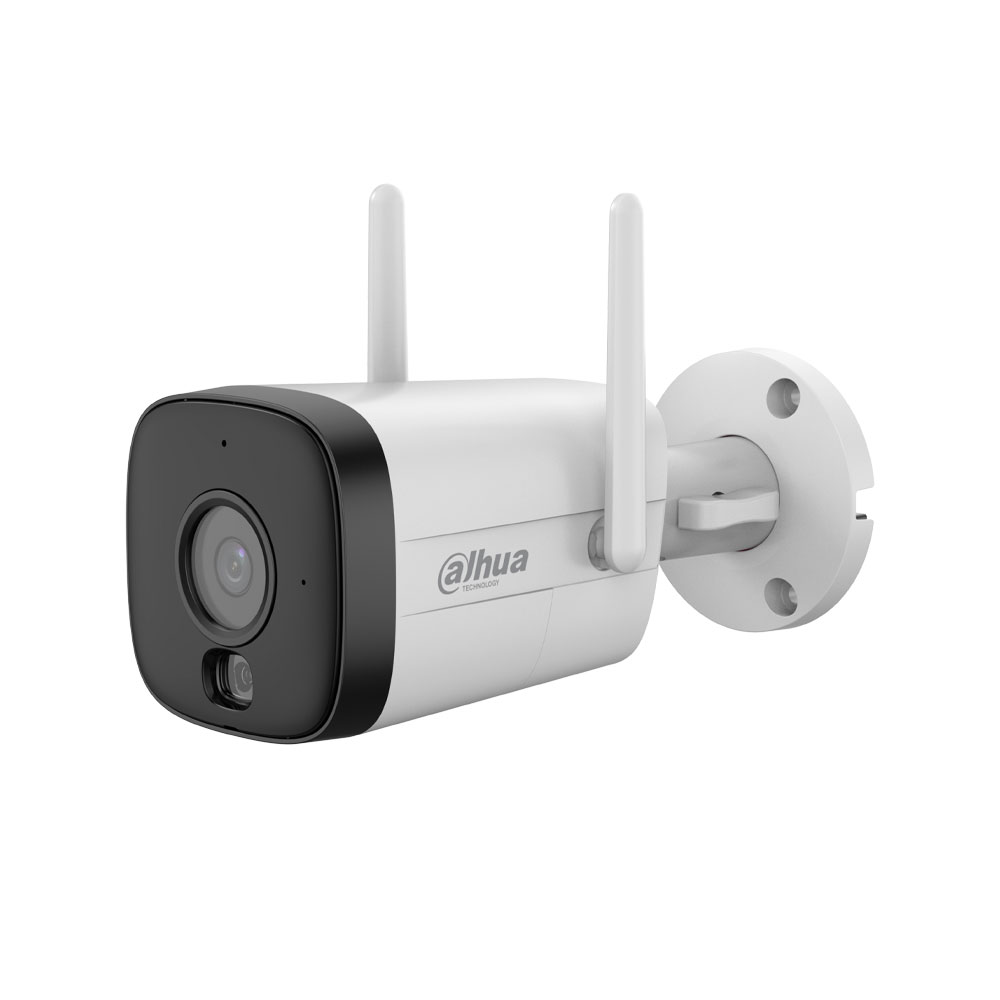

3MP Dahua Wireless WiFi IP Camera with Smart Dual Light and 2.8 mm Fixed lens

Technical features

• 1/2.8" CMOS sensor
• Maximum resolution 3MP (2304×1296)
• Auto day/night mode with ICR, color and B/W
• Minimum illumination of 0.005 lux at F1.6 in color, 30 IRE
• Minimum illumination 0.0005 lux at F1.6 in B/W, 30 IRE
• 0 lux with illuminator on
• IR illumination up to 30 m
• Up to 30 m warm light illumination
• 1 multi-core IR and warm light illuminator
• Fixed lens 2.8 mm
• Maximum aperture F1.6
• 103° horizontal, 55° vertical, 123° diagonal angle of view

Video

• H.264B, H.264, H.264H and H.265 compression
• Stream 1: 2304 × 1296 at 1~25/30 fps
• Stream 2: 640 × 360 at 1~25/30 fps
• Bitrate H.264 from 32 kbps to 6144 kbps
• Bitrate H.265 from 32 kbps to 6144 kbps

Functionalities

• Digital WDR
• Motion detection with 4 rectangular areas
• 0° and 180° image rotation
• Smart Dual Light

Intelligent functions

• Human detection
• Vehicle detection

Audio

• Built-in microphone
• Built-in speaker
• Two-way audio
• G.711a, G.711Mu and PCM audio compression

Storage

• MicroSD card slot up to 256 GB (card not included)

Communication interface

• Bluetooth pairing
• Reset button

Network

• RJ45 10/100 Base-T Ethernet port
• 2.4 GHz IEEE 802.11b/g/n/ax WiFi
• ONVIF Profile S, Profile G and Profile T
• CGI
• Smart PSS Lite, DSS and DMSS software
• Mobile application for Android and iOS

Power supply

• 12V DC power supply
• Basic consumption of 2.2 W
• Maximum consumption of 6.7 W

Environmental

• Operating temperature -30 °C to +50 °C (-22 °F to 122 °F)
• Operating humidity up to 95 % non-condensing
• IP67 protection

Physical characteristics

• Material metal and plastic
• 2AXIS with 0° to 90° vertical adjustment and 0° to 360° rotation
• Dimensions 172.4 mm × 83.3 mm × 75.0 mm
• Net weight 0.3 kg

Contents

• Dahua Wireless DAHUA-5185 WiFi IP Camera (DH-IPC-HFW1339DTK1P-SW-PV-0280B)
• Position map
• Hardware bag
• Waterproof connector
• QR Code
• Quick Start Guide
• Legal and regulatory information
• Power adapter

Certifications and regulations

• CE
