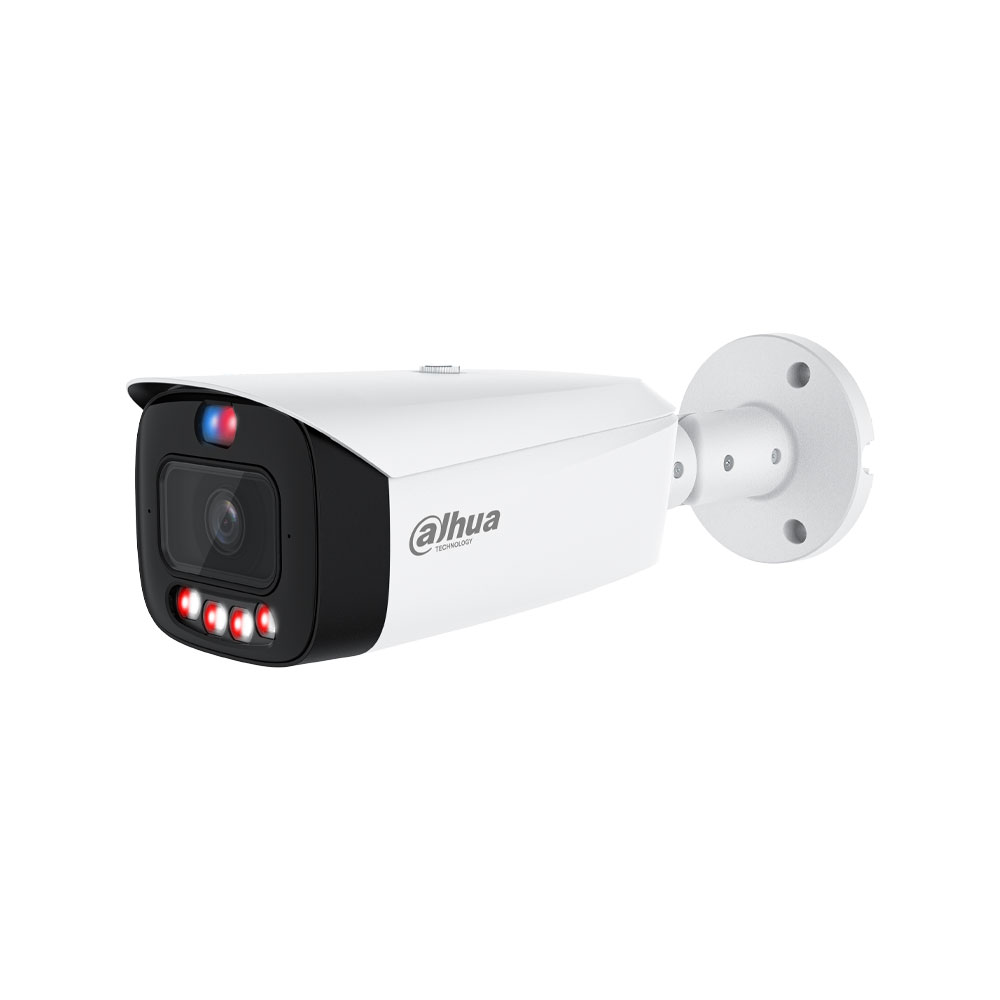

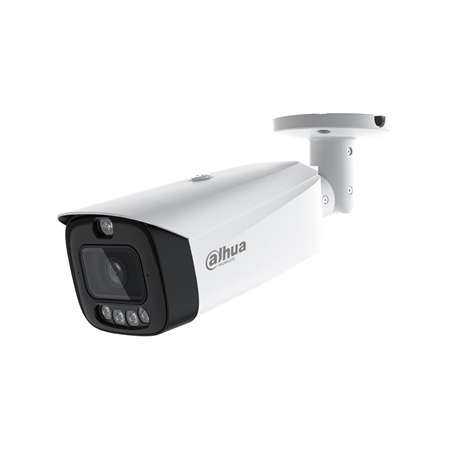

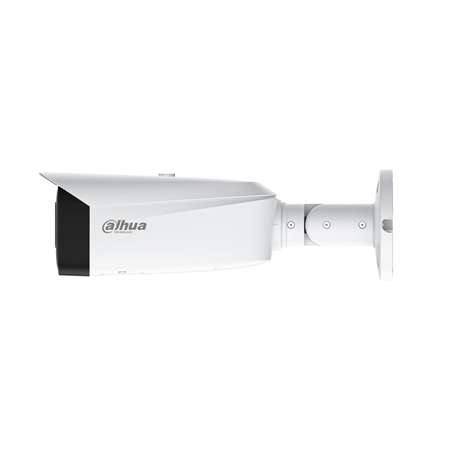

Dahua TiOC Pro 4MP IP Camera with WizColor and 3.6 mm Fixed lens

Technical features

• 1/1.8" CMOS sensor
• Maximum resolution 4M (2688×1520)
• Auto day/night mode with ICR, color and B/W
• Minimum illumination of 0.0001 lux at F1.0 in color, 30 IRE
• Minimum illumination 0.0001 lux at F1.0 in B/W, 30 IRE
• 0 lux with illuminator on
• IR illumination up to 60 m
• Up to 50 m warm light illumination
• Automatic and manual illuminator control
• 4 multi-core IR and warm-light illuminators
• Fixed lens 3.6 mm
• M16 mount
• Maximum aperture F1.0
• 95° horizontal, 51° vertical and 114° diagonal angle of view
• Minimum focusing distance of 3.5m

Video

• H.265, H.264, H.264H, H.264B and MJPEG compression in substream
• AI H.265 and AI H.264
• Smart H.265+ and Smart H.264+
• Stream 1: 2688 × 1520 at 1~25/30 fps
• Stream 2: 1920 × 1080 at 1~25/30 ips
• Stream 3: 1920 × 1080 at 1~25/30 ips
• Resolutions 4M, 3M, 1080P, 720P, D1, VGA and CIF
• VBR, CBR and ABR bitrate control
• H.264 bitrate from 3 kbps to 16384 kbps
• Bitrate H.265 from 3 kbps to 16384 kbps

Functionalities

• BLC, HLC and WDR of 120 dB
• Scene Self-adaptation (SSA)
• Auto, natural, street lamp, outdoor, manual and custom regional white balance
• Automatic and manual gain control
• 3D NR noise reduction
• Motion detection OFF/ON with 4 rectangular areas
• ROI with 4 areas
• Smart Illumination
• Smart Dual Light
• Defog
• 0°, 90°, 180° and 270° image rotation
• Mirror
• Privacy with 8 areas
• LDC
• One-tap arming and disarming

Intelligent features

• Perimeter protection with intrusion and line crossing with accurate vehicle and human classification
• Stay detection
• Loitering detection
• Full-image face detection
• SMD 4.0
• Smart Search with Smart NVR for refined intelligent search, extraction and event fusion
• AcuPick for fast search of people and vehicles with back-end devices
• AI SSA

Audio

• Integrated dual microphone
• Integrated 1-channel speakerphone
• Two-way audio
• PCM, G.711a, G.711Mu, G.726 and G.723 audio compression
• 1 audio input via RCA port
• 1 audio output per RCA port
• Maximum sound level of 110 dB at 10 cm (4 in.)

Storage

• Micro SD up to 512 GB (card not included)
• FTP
• SFTP
• NAS

Alarms

• 1 alarm input with wet contact, 5 mA 3~5 VDC
• 1 alarm output with wet contact, 300 mA 12 Vdc
• Audible and luminous alarm with red and blue lights

Network

• RJ-45 10/100 Base-T
• Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Bonjour and Auto Registration
• SDK and API
• ONVIF Profile S, Profile G, Profile T and Profile M
• CGI
• 20 users with 64M total bandwidth
• IE11, Chrome and Firefox browsers
• Smart PSS Lite, DSS, DMSS and DoLynk Care Software
• iOS and Android mobile client
• Security Digest, WSSE, account lockdown, security logs, IP/MAC filtering, X.509 certificate generation and import, Syslog, HTTPS, 802.1x, Trusted boot, Trusted execution and Trusted upgrade

Power supply

• 12 VDC and 802.3at PoE+ power supply
• Dual power backup
• Basic power consumption of 4.3 W at 12 V DC and 6.2 W via PoE
• Maximum power consumption 11.8 W at 12 V DC and 15.1 W per PoE with H.265, WDR, warm light, active deterrent and intelligence enabled

Environmental

• Operating temperature -40°C to +60°C (-40°F to +40°F)
• Operating humidity up to 95% non-condensing
• Storage temperature -40 °C to +60 °C (-40 °F to +60 °C)
• Storage humidity up to 95 % non-condensing
• IP67 protection

Physical characteristics

• Material metal and plastic
• 3AXIS with 0° to 360° horizontal adjustment, 0° to 90° vertical adjustment and 0° to 360° rotation
• Dimensions of 288.4 mm × 94.4 mm × 84.7 mm
• Net weight 1.0 kg
• Gross weight 1.3 kg

Contents

• Dahua TiOC Pro DAHUA-5193 IP Camera (DH-IPC-HFW3449T1P-AS-PV-0360B-PRO)

Certifications and standards

• CE-LVD: EN 62368-1
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
