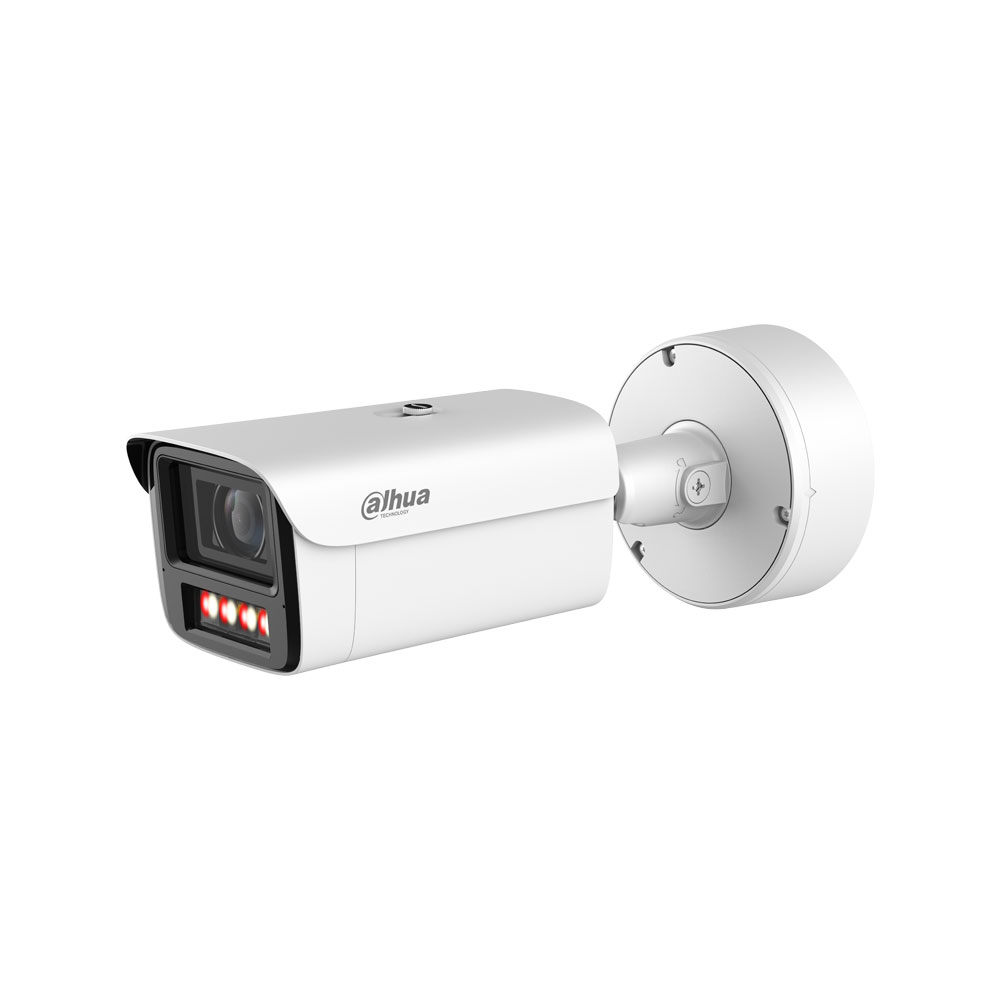

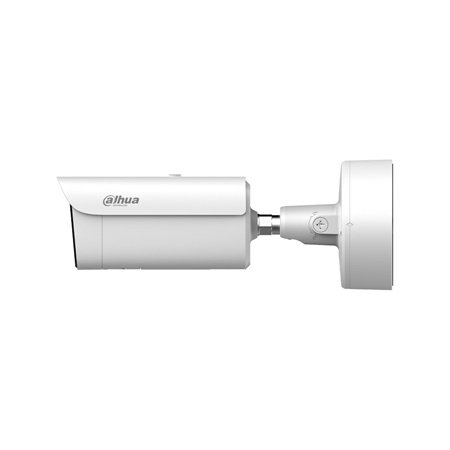

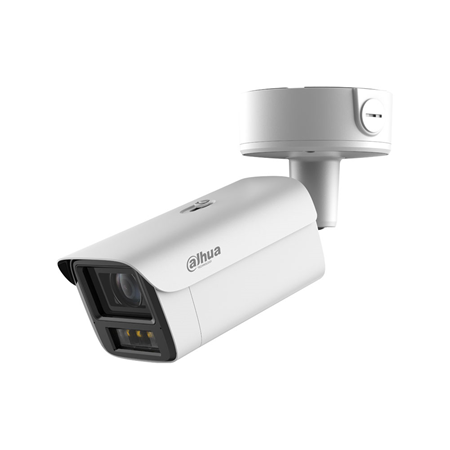

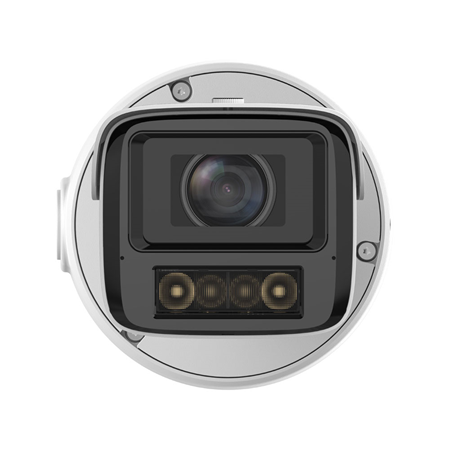

Caméra bullet IP Dahua WizMind 7 de 4MP avec Smart Dual Light, IA et audio bidirectionnel

Technical Specifications

• Dahua WizMind 7 4MP IP Bullet Camera
• 1/1.8" CMOS sensor with progressive scan
• Maximum resolution of 4MP (2688x1520)
• 8GB ROM and 4GB RAM
• Minimum illumination of 0.0005 lux@F1.2 in color and 0.0001 lux@F1.2 in black and white
• 0 lux with illuminator activated
• Signal-to-noise ratio greater than 56 dB
• Smart Dual Light with IR illumination up to 150 m and warm light up to 80 m
• Varifocal lens Motorized 8–80 mm lens with maximum aperture of F1.2
• P-Iris automatic iris control
• Horizontal field of view of 42.87°–5.4°, vertical field of view of 23.68°–3.4°, and diagonal field of view of 49.78°–6.2°
• Minimum focus distance of 0.2 m
• DORI in wide-angle mode: detect at 140 m, observe at 56 m, recognize at 28 m, and identify at 14 m
• DORI in telephoto mode: detect at 1,120 m, observe at 448 m, recognize at 224 m, and identify at 112 m

Video stream

• H.265, H.264, H.264H, H.264B, and MJPEG compression in secondary stream
• H.265 AI and H.264 AI encoding with Smart H.265+ and Smart H.264+
• Capacity for up to 5 streams
• Stream 1: 4MP (2688x1520) @ 1–25/30 fps
• Stream 1 (high-speed): 4MP (2688x1520) @ 1–50/60 fps or 1080P (1920x1080) @ 1–100/120 fps
• Stream 2: 1080P (1920x1080) @ 1–25/30 fps
• Stream 3: 1080P (1920x1080)@1–25/30 fps
• Stream 4: 1080P (1920x1080)@1–25/30 fps
• Stream 5: D1 (704x576)@1–25 ips or D1 (704x480)@1–30 ips
• CBR, VBR, and ABR bitrate control
• H.264 bitrate: 32–10,240 Kbps; H.265 bitrate: 12–10,240 Kbps

Functionalities

• AI-ISP technology to adapt image processing to the scene
• Xinghan Vision large-scale AI models and Xinghan Precision Focus
• 140 dB WDR, BLC, HLC, 3D noise reduction, and SSA automatic scene adaptation
• GIS gyroscope-based image stabilization
• Smart lighting, defog, mirroring, and image rotation at 0°, 90°, 180°, and 270°
• Smart window heating to remove water, ice, snow, and condensation
• Illuminator with anti-glare coating to maintain clarity in rain and fog
• Privacy protection via pixelation and frosted effect for faces, bodies, and vehicles
• G-sensor for image stabilization and tamper detection
• Status indicators and daily or weekly power consumption reports

Smart features

• AcuPick for locating people, animals, and vehicles in live or recorded video using compatible devices
• Perimeter protection with intrusion, line crossing, rapid movement, loitering, group detection, parking, and lingering
• Accurate classification of people, animals, and vehicles, and self-learning to reduce false alarms
• Facial detection and recognition with tracking, optimized capture, attributes, and up to 5 databases with 200,000 images
• PPE detection, including helmets, hats, uniforms, masks, gloves, shoe covers, footwear, vests, belts, glasses, and aprons
• People counting via line crossing and area detection, queue management, and daily, monthly, and annual reports
• ANPR with license plate attributes, vehicle type and color, and recognition at speeds up to 60 km/h
• Up to 10,000 license plates on the blocklist and 10,000 license plates on the allowlist
• Parking space management and heat map
• Metadata for people, faces, motorized vehicles, and non-motorized vehicles
• Allows simultaneous activation of combinations of two compatible smart functions

Audio

• Dual built-in microphones with adaptive noise cancellation and a pickup range of up to 30 m
• Built-in Hi-Fi speaker with a range of up to 30 m indoors
• Maximum sound level of 110 dB at 10 cm
• Two-way audio with 1 RCA audio input and 1 RCA audio output
• G.711a, G.711Mu, PCM, G.726, and G.723 compression

Storage

• MicroSD slot supporting up to 1 TB (card not included)
• Storage via FTP, SFTP, and NAS

Alarms

• 3 alarm inputs and 2 alarm outputs
• Inputs compatible with dry and wet contacts
• Dry-contact outputs with a maximum load of 1000mA at 30V DC or 500mA at 50V AC
• Deterrent alarm via sound and flashing light
• Events triggered by motion, tampering, scene change, defocus, audio detection, network disconnection, and MicroSD card errors

Communication interface

• 1 RS-485 port with a baud rate of 1200–115,200 bps
• 1 analog CVBS video output via BNC connector

Network

• 1 RJ45 Ethernet port (10/100/1000 Base-T)
• Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, and SNMP
• DoLynk Cloud and automatic registration
• ONVIF interoperability (profiles S, G, T, and M) and CGI
• SDK and API support
• Up to 20 users with a total bandwidth of 340 Mbps
• Management via SmartPSS Lite, DSS, and DMSS
• Apps for iOS and Android
• Security via HTTPS, 802.1X, AES-256, SSL/TLS 1.3, X.509 certificates, and TPM 2.0 with FIPS 140-2 Level 2

Power

• Power via 12V DC ±30%, 24V AC ±30%, PoE+ IEEE 802.3at, or ePoE
• Power failover between adapter and PoE without device reboot
• 12V DC output with a maximum current of 165mA and a peak of 700mA
• Basic power consumption of 8.2W at 12V DC, 9.1W at 24V AC, and 11.4W via PoE
• Maximum power consumption of 19.5W at 12V DC, 20.9W at 24V AC, and 21.8W via PoE

Environmental

• Operating and storage temperature range of -40°C to +65°C
• Operating humidity up to 95% non-condensing
• IP67 and IK10 protection
• Basic corrosion protection level

Physical Characteristics

• Metal housing with plastic sunshade
• Ceiling, wall, or pole mounting
• 3-axis adjustment: Pan 0°–360°, Tilt 0°–90°, and Rotation 0°–360°
• Dimensions: 345 x 137 x 134 mm
• Net weight of 2 kg
• Gross weight: 3 kg

Contents

• Dahua DAHUA-5395 IP bullet camera (DH-IPC-HFW7459Z1P-Z-PV-0880-X)

Certifications and Standards

• CE-LVD compliant with EN 62368-1
• CE-EMC compliant with the Electromagnetic Compatibility Directive 2014/30/EU
