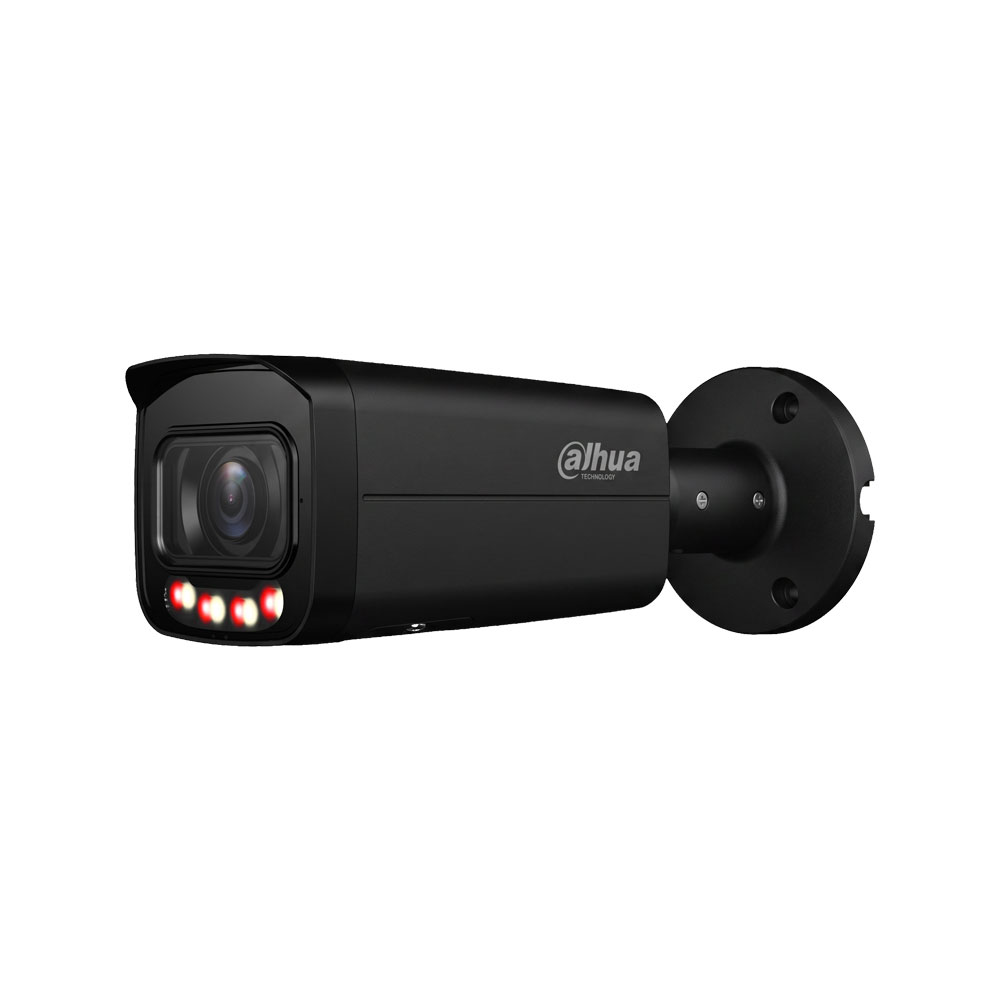

Black Dahua WizSense 2 4MP IP camera with Smart Dual Light, motorised varifocal lens and SMD Plus for outdoor use

Technical Specifications

• Dahua WizSense 2 4MP IP Camera with Smart Dual Light technology and black finish
• 1/2.9" CMOS sensor with progressive scan
• Maximum resolution of 4MP (2560x1440)
• Minimum illumination of 0.006 lux@F1.5 (color, 30 IRE), 0.0006 lux@F1.5 (B/W, 30 IRE), and 0 lux with illumination enabled
• Removable mechanical ICR filter
• Signal-to-noise ratio greater than 56 dB
• Electronic shutter speed of 1/3–1/100,000 s
• Smart Dual Light illumination with 4 multicore infrared illuminators and warm light
• IR range up to 60 m and warm light range up to 60 m
• Automatic or manual on/off for the lighting
• Varifocal lens Motorized zoom range of 2.7–13.5 mm
• Maximum aperture F1.5
• Horizontal field of view: 104°–29°, vertical: 54°–16°, and diagonal: 125°–34°
• Minimum focus distance of 0.1 m
• DORI detection range of 64 m in wide-angle mode and 210 m in telephoto mode

Video

• Video compression: H.265, H.264, H.264H, H.264B, and MJPEG (secondary stream only)
• Super AI Coding H.265/H.264, Smart H.265+, and Smart H.264+
• Triple video stream
• Stream 1: 4MP (2560x1440) @ 1–25/30 fps
• Stream 2: D1 (704x576)@1–25 fps / D1 (704x480)@1–30 fps
• Stream 3: CIF (352x288 / 352x240) @ 1 fps
• Additional resolutions: 3MP (2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), and VGA (640x480)
• H.264 video bitrate of 32–6144 Kbps and H.265 video bitrate of 12–6144 Kbps
• CBR/VBR bitrate control

Functionalities

• Smart Dual Light with intelligent switching between infrared and white light to capture color images when a subject is detected
• Full-color technology for capturing color images in low-light conditions
• True 120 dB WDR, BLC, HLC, and 3D-NR noise reduction
• Auto, Natural, Streetlight, Outdoor, Manual, and Region-Specific white balance
• Automatic and manual gain control
• Configurable motion detection in 4 rectangular areas
• 4 Regions of Interest (ROI)
• 4-area privacy masking
• Image rotation: 0°, 90°, 180°, and 270°
• Mirror function
• Digital watermark

Smart features

• Perimeter protection using deep learning algorithms
• Intrusion and line-crossing detection with person and vehicle classification
• SMD Plus with intelligent filtering of false alarms caused by irrelevant targets
• Super AI Coding with ROI, BAE, and DFE to optimize encoding efficiency and reduce storage and bandwidth consumption

Audio

• Built-in microphone
• 1 RCA audio input / 1 RCA audio output
• Audio compression: G.711a, G.711Mu, PCM, and G.726
• Audible alerts with 3 predefined alarm sounds and the ability to import custom sounds via an external speaker
• Configurable alarm volume from 0 to 100 and number of repetitions from 1 to 10

Storage

• MicroSD card slot supporting up to 512 GB (card not included)
• FTP and SFTP storage

Alarms

• 1 alarm input compatible with dry and wet contacts
• 1 alarm output via wet contact up to 300 mA at 12 V DC
• Detection of video tampering, blurring, audio anomalies, and voltage issues
• Alerts for missing SD card, full SD card, or SD card error
• Alarms for network disconnection, IP conflict, and unauthorized access
• Intrusion events, line crossing, motion detection, and SMD Plus
• Security exception detection

Network

• 1 RJ45 Ethernet port (10/100 Base-T)
• Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, NFS, and P2P
• Compatible with ONVIF profiles S, G, and T, CGI, SDK, and API
• Up to 6 user connections with a total bandwidth of 36 Mbps
• Access via Internet Explorer, Chrome, and Firefox browsers
• Access via iOS and Android mobile devices
• Management software: Smart PSS Lite, DSS, DMSS, and DoLynk Care
• Security via HTTPS, SSL/TLS 1.2, AES 256, IEEE 802.1X, IP/MAC filtering, and X.509 certificates
• Secure boot, runtime, and update functions

Power

• 12V DC (±30%) or PoE (802.3af) power supply
• Power failover between adapter and PoE without requiring a device reboot
• Basic power consumption of 1.8W (12V DC) and 2.4W (PoE)
• Maximum power consumption of 10.5W (12V DC) and 12.9W (PoE)

Environmental

• Operating and storage temperature: -30°C to +60°C
• Operating and storage relative humidity up to 95%, non-condensing
• IP67 protection against dust and water
• Basic-level corrosion protection

Physical Characteristics

• Black metal housing
• 3-axis mechanical adjustment: horizontal pan from 0° to 360°, tilt from 0° to 90°, and rotation from 0° to 360°
• Dimensions: 90.7 (W) x 90.7 (H) x 238.5 (D) mm
• Net weight: 0.76 kg
• Gross weight: 0.95 kg

Contents

• Dahua WizSense 2 4MP IP Camera with motorized " Varifocal lens " and black finish DAHUA-5608 (DH-IPC-HFW2449TP-ZAS-IL-27135-S2-Black)

Certifications and Standards

• CE-LVD compliance according to EN 62368-1
• CE-EMC compliance in accordance with Directive 2014/30/EU
