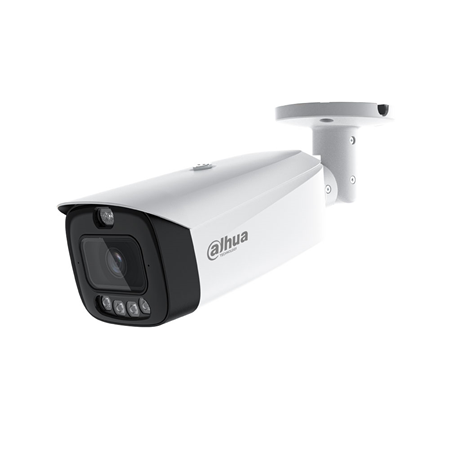

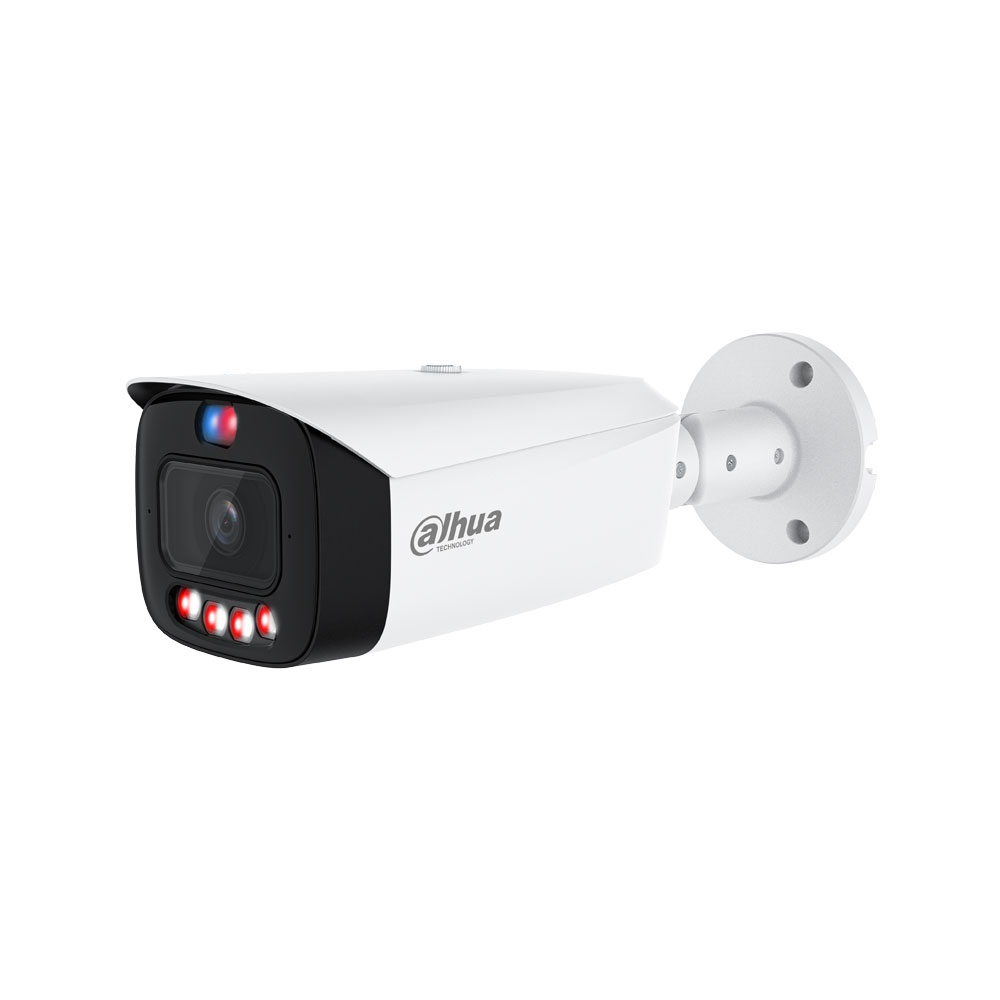

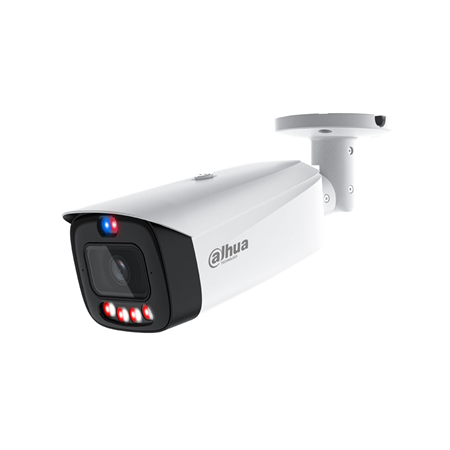

Dahua WizSense 8MP IP bullet camera with WizColor, TiOC PRO, AI and active deterrence for outdoor use

Technical Specifications

• Dahua WizSense Series IP Bullet Camera with WizColor and TiOC PRO Technologies
• 8-megapixel 1/1.8" CMOS sensor
• Maximum resolution of 8MP (3840x2160)
• Progressive scan system
• Minimum illumination of 0.0004 lux in color and 0.0002 lux in black and white (F1.0, 30 IRE)
• 0 lux with illumination enabled
• Automatic/manual electronic shutter from 1/3 to 1/100,000 s
• Signal-to-noise ratio greater than 56 dB
• Fixed lens 3.6 mm with M16 mount
• Maximum aperture F1.0
• Field of view: 93° horizontal, 50° vertical, and 111° diagonal
• Minimum focus distance of 4.4 m
• Multicore illumination with 4 emitters featuring infrared and warm light
• IR range up to 60 m and warm light range up to 50 m
• Automatic or manual lighting control
• DORI ranges: detection 100 m, observation 40 m, recognition 20 m, and identification 10 m

Video stream

• H.265, H.264, H.264H, H.264B, and MJPEG compression in secondary stream
• Super AI Coding H.265/H.264, Smart H.265+, and Smart H.264+
• Stream 1: 8MP@25/30 fps
• Stream 2: 1080P@25/30 fps
• Stream 3: 1080P@25/30 fps
• Transmission of up to 3 simultaneous streams, subject to total encoding capacity
• Supported resolutions: 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1, VGA, and CIF
• H.264/H.265 bitrate from 3 to 16,384 Kbps
• VBR, CBR, and ABR bitrate control

Functionalities

• WizColor technology with AI-ISP for capturing color images in low-light conditions
• Smart Dual Light with smart lighting
• TiOC PRO active deterrence using red and blue lights and an audible alarm
• Automatic ICR day/night mode, color and black-and-white
• True WDR with 130 dB
• Backlight Compensation (BLC) and High Light Compensation (HLC)
• 3D NR digital noise reduction
• Auto, Natural, Streetlight, Outdoor, Manual, and Region-Specific White Balance
• Automatic and manual gain control
• Configurable ROI with 4 regions
• Privacy masking for up to 8 zones
• Motion detection in 4 rectangular areas
• Defog, LDC, mirror, and image rotation functions
• Image rotation at 0°, 90°, 180°, and 270°, with 90°/270° available up to 2688x1520
• Digital watermark
• One-touch arming and disarming

Smart features

• Xinghan Large-Scale AI Models-Vision for intelligent analysis
• Perimeter protection via intrusion and line-crossing detection with person and vehicle classification
• Loitering and lingering detection
• SMD 4.0 for intelligent motion detection
• Configuration of SMD areas associated with warm-light zones for alarm activation
• AcuPick for intelligent search of people and vehicles using compatible devices
• AI SSA for intelligent adaptation of image parameters to the scene
• Full-frame facial detection with capture, optimization, facial enhancement, and angle filters
• Intelligent event search with compatible Smart NVRs

Audio

• Dual built-in microphones
• Built-in 2 W speaker with a maximum sound level of 110 dB at 10 cm
• Two-way audio
• 1 audio input / 1 audio output via RCA connections
• PCM, G.711a, G.711Mu, G.726, and G.723 compression

Storage

• MicroSD slot supporting up to 512 GB (card not included)
• Storage on FTP, SFTP, and NAS

Alarms

• 1 alarm input compatible with dry and wet contacts
• 1 wet contact alarm output up to 300 mA at 12V DC
• Alarm events for motion detection, intrusion, line crossing, loitering, and facial detection
• Video tampering, scene change, and audio anomaly detection
• Alarms for SD card absence, full capacity, or error
• Alerts for network disconnection, IP conflict, unauthorized access, voltage anomalies, and security exceptions
• Events triggered by external alarms and SMD

Network

• 10/100 Base-T Ethernet RJ45 port
• Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, and P2P
• ONVIF Profile S, G, and T compatibility, CGI, SDK, and API
• Up to 20 users with a total bandwidth of 64 Mbps
• Smart PSS Lite, DSS, DMSS, and DoLynk Care software
• Access from iOS and Android devices
• Security via HTTPS, 802.1X, IP/MAC filtering, X.509 certificates, security logs, and secure boot

Power

• 12V DC (±30%) or PoE+ (802.3at) power supply
• Basic power consumption of 4.3 W at 12V DC and 6.2 W via PoE
• Maximum power consumption of 11.8 W at 12V DC and 15.1 W via PoE

Environmental

• Operating temperature range: -40°C to +60°C
• Operating humidity up to 95% non-condensing
• Storage temperature: -40°C to +60°C
• IP67 protection against dust and water

Physical Characteristics

• Metal and plastic housing
• 3-axis mechanical adjustment with horizontal pan from 0° to 360°, tilt from 0° to 90°, and rotation from 0° to 360°
• Wall, ceiling, or pole mounting with compatible accessories
• Dimensions: 288.4 x 94.4 x 84.7 mm
• Net weight of 1 kg
• Gross weight: 1.3 kg

Contents

• Dahua WizSense 8MP IP bullet camera with 3.6 mm Fixed lens, model DAHUA-5635 (DH-IPC-HFW3849T1P-AS-PV-0360B-PRO)

Certifications and Standards

• CE-LVD compliant with EN 62368-1
• CE-EMC compliant with Directive 2014/30/EU on electromagnetic compatibility
• IP67 protection rating
