HYU-648N

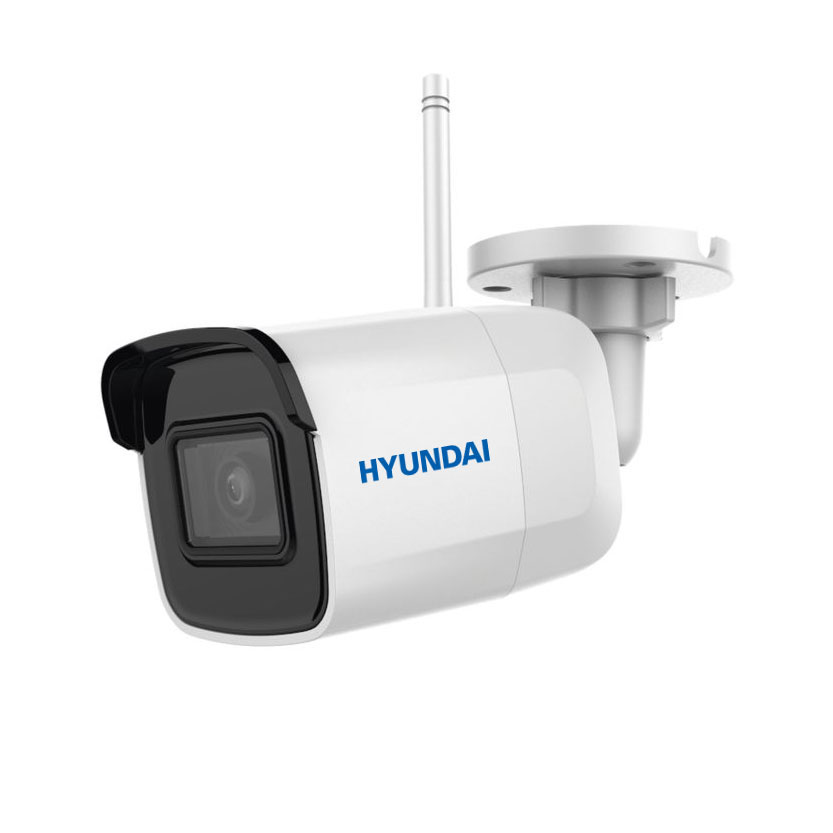

HYUNDAI 2MP WiFi IP Camera, 2.8mm, EXIR IR 30m, IP66
HYU-648N
SF-IPB025HA-2PW
This product is discontinued
It is replaced by the new version HYU-993

Main features
Specifications

Specifications
1 / 2.7 ”CMOS sensor, 2 megapixel
Digital Resolution: 1080P (1920x1080), 720P (1280x720), Q720P (640x360)
Compression format H.265 / H.264
Main stream: 1080P, 720P (25 ips)
Secondary stream: Q720P (25 ips)
Day / night mode with removable mechanical filter
Infrared illumination: EXIR 30 meters
0.018 lux F1.6 color / 0 lux IR On
2.8mm fixed lens
Viewing angle 112 ° (H), 59 ° (V), 134 ° (D)
Imaging Modes: BLC, HLC, Digital WDR, 3D-DNR
Adjust saturation, brightness, contrast, sharpness, gain control and white balance through client software and web browser
Integrated microphone and speaker
MicroSD / SDHC / SDXC card slot up to 256GB (card not included)
Network interface: RJ45 (10 / 100M) self-adaptive
Network protocols: TCP / IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
Incorporates WiFi 802.11b / g / n at 2.4GHz with WEP, WPA-EAP / WPA2-EAP, WPA-PSK / WPA4-PSK security
WiFi range of up to 120 meters in open field without obstacles
Compatible with Onvif, ISAPI and SDK
Up to 6 simultaneous views
Up to 32 remote users
Plug & Play connection with NEXTGEN NVR
DDNS DEMES compatible
Power supply: 12V DC (± 25%), max 7.2W
-30 ° C ~ + 50 ° C operating temperature
Degree of protection IP66
Plastic and metal housing
Dimensions: 89.1 (W) x 73 (H) x 175.6mm
Weight: 450g
3AXIS: 0 ° ~ 360 ° (PAN), 0 ° ~ 90 ° (TILT), 0 ° ~ 360 ° (Rotation)
Feeder sold separately
