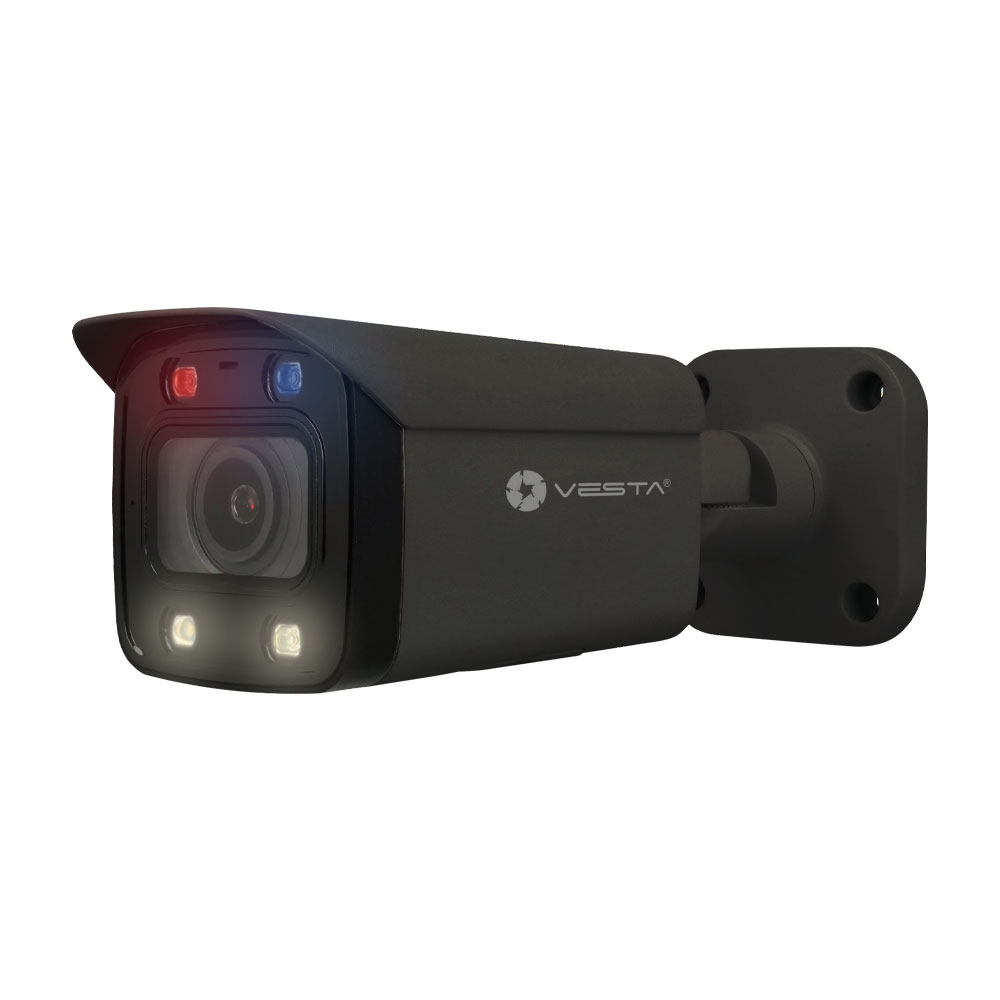

5MP Smart Dual Light outdoor IP camera

Name: IPC-B35-AS-PV-B
SKU: IPC-B35-AS-PV-B
Price: 200.629 EUR
Availability: InStock
Rating: 5 (36 reviews)

IPC-B35-AS-PV-B

WARNING:

Coming soon: integration with all VESTA panels.

Main features

Vesta Advanced Video IP Camera
5MP@25/30ips, H.265+
0.001 lux, Smart Dual Light 40-50m
2.8mm fixed optical
WDR 120dB, 3D-NR
Perimeter protection, face detection, people counting, heat mapping and intelligent motion detection
Active deterrence
Built-in microphone and speaker
1 input / 1 output alarm
MicroSD slot, RJ45, Onvif, IP67, 3AXIS, PoE.

Specifications

1/2.7" 5-megapixel CMOS sensor
H.265+, H.264+, H.265, H.264 video formats
Resolution up to 5MP (2880x1620)
Stream 1: 5MP (1~25/30 fps)
Stream 2: D1 (1~25/30 fps)
Stream 3: 720P (1~25/30 fps)
Day/Night Mode
Smart Dual Light: 1 IR led (50 meters) + 1 warm light led (40 meters)
0.001 lux, 0 lux when light is activated
2.8 mm fixed optics
Angle of view: 111°(H), 59°(V), 134°(D)
Imaging modes: BLC, HLC, WDR 120dB, 3D-NR, Mirror
White balance
Automatic and manual gain control
4-Zone video sensor and 4-Zone privacy mask
Perimeter protection with cross-line detection and intrusion detection (supports person/vehicle classification)
Face detection
People counting
Heat map
Intelligent motion detection
Incorporates active deterrence by sound and light alarm (blue and red lights)
Built-in microphone and speaker
1 audio input / 1 audio output
1 alarm input / 1 alarm output
MicroSD card slot up to 256 GB (card not included)
Network interface: RJ45 (10/100 Base-T)
Network protocols: TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPOE, UPNP,SMTP
Onvif, CGI, P2P, SDK and API support
Up to 20 users
Compatible with IE8 and later, Chrome and Firefox browsers
Management software
Compatible with IOS and Android mobile devices
Power supply: 12V DC / PoE (802.3af)
Power consumption: 2.8 W (basic), 5.5 W (maximum)
Storage temperature from -40°C ~ +60°C
Operating temperature -30°C ~ +60°C (-30°C ~ +60°C)
Operating relative humidity <95%.
IP67 degree of protection
Metal housing
Black color
Dimensions: 76 (W) x 77 (H) x 224 mm
Net weight: 760 g

REFERENCE / MODEL	IPC-B35-AS-PV-B / IPC-B35-AS-PV-B
Resolution	5MP
Series	TiOC \|\| Vesta Advanced Video
Audio	1 input / 1 output \|\| Microphone \|\| Speaker
IR Distance	41-80m
Ingress protection	IP67
Lens	2.8 mm
Special Protection	No
Sensor	1/2.7" CMOS
StarLight	StarLight
WDR (Backlight)	WDR (120dB)
Codec	H.265 \|\| H.265+
PoE	PoE
SD Slot	Yes
Colour	Black
Certificate	NDAA
Installation environment	Outdoor
Material	Metal
Alarm channels	1 input / 1 output
Connectivity	IP \|\| YES (P2P)
Intelligent functions	Face detection \|\| Heat map \|\| People counting \|\| Perimeter protection
Compatibility	Onvif

Documentation

Language	Name	Type
EN	EN_IPC-B35-AS-PV-B_data_sheet	Self-generated File
EN	VÍDEO	Video
	IPC-B35-AS-PV-B	Image

Self-generated File

Video
