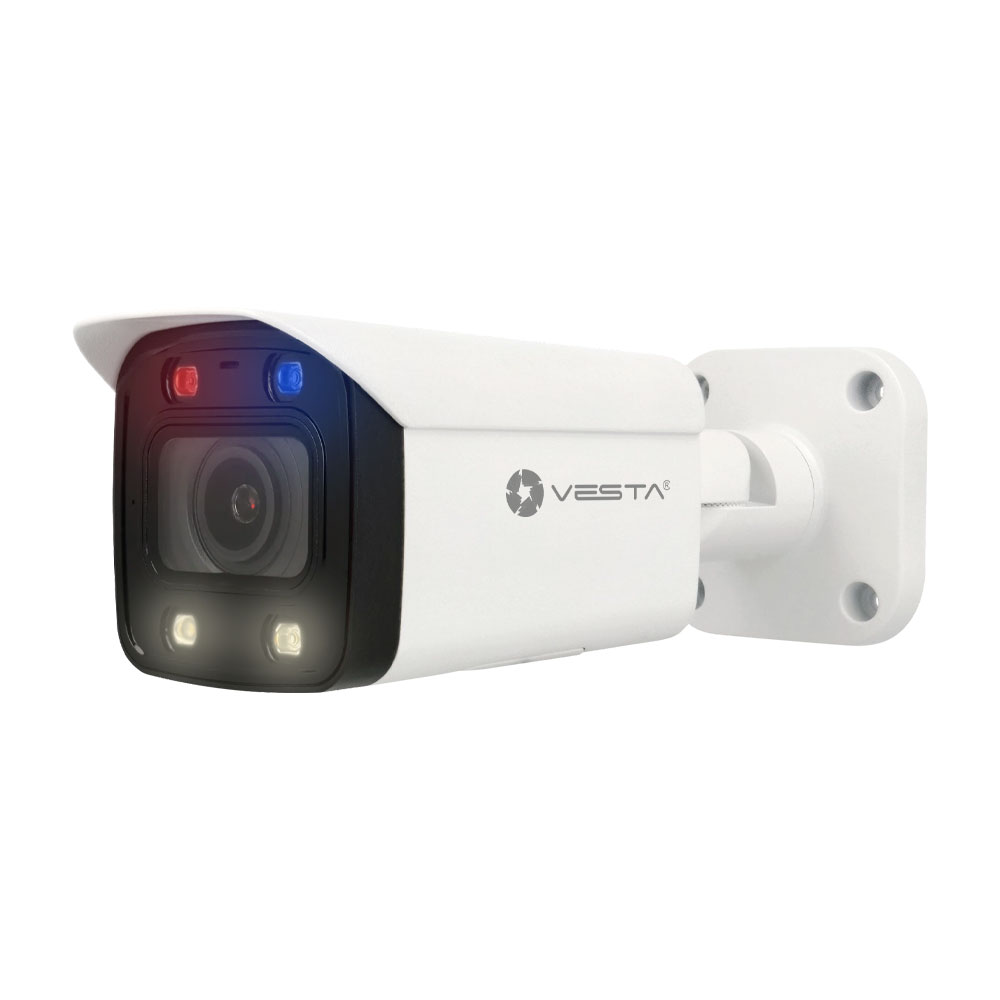

8MP Smart Dual Light Active Deterrence Pro AI IP Camera for outdoors

Name: IPC-B38-ZAS-PV
SKU: IPC-B38-ZAS-PV
Rating: 5 (39 reviews)

IPC-B38-ZAS-PV

This product is discontinued

It is replaced by the new version IPC-B38L-ZAS-PV

Refurbished

View refurbished alternative, more cost-effective IPC-B38-ZAS-PV-RE

Main features

Vesta Advanced Video IP Camera
8MP@25ips, H.265+
0.007/0.0007 lux, Smart Dual Light 50m
Motorized lens 2.7 ~ 13.5 mm
WDR 120dB, 3D-NR
Perimeter protection, face detection, people counting, heat map and intelligent motion detection
Active deterrence
Built-in microphone, speaker and one alarm channel
MicroSD slot, reset button
RJ45, Onvif, IP67, PoE.

Specifications

1/2.7" 8-megapixel CMOS sensor
H.265+, H.264+, H.265, H.264 video formats
Resolution up to 8MP (3840x2160)
Stream 1: 8MP (1~25 fps)
Stream 2: D1 (1~25/30 fps)
Stream 3: 720P (1~25/30 fps)
Day/Night Mode
Smart Dual LightDay/night mode: IR light 50 meters, warm light 50 meters
0.007 lux (color), 0.0007 lux (B/W), 0 lux with activated illumination
Lens 2.7~13.5mm motorized
Angle of view: 109°~30°(H), 56°~17°(V), 131°~35°(D)
Imaging modes: BLC, HLC, WDR 120dB, 3D-NR, Mirror.
White balance
Automatic and manual gain control
4-Zone video sensor and 4-Zone privacy mask
Perimeter protection with cross-line detection and intrusion detection (supports person/vehicle classification)
Face detection
People counting
Heat map
Intelligent motion detection
Built-in active deterrent with audible and luminous alarm (blue and red lights)
Alarm arming/disarming
1 alarm input / 1 alarm output
Built-in microphone and speaker
MicroSD card slot up to 256 GB (card not included)
Reset button
Network interface: RJ45 (10/100 Base-T)
Network protocols: TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPOE, UPNP, SMTP
Onvif, CGI, P2P, SDK and API support
Up to 20 users
Compatible with IE8 and later, Chrome and Firefox browsers
Management software
Compatible with IOS and Android mobile devices
Power supply: 12V DC / PoE (802.3af)
Power consumption: 2.5W (basic), 6.2W (maximum)
Storage temperature from -40°C ~ +60°C
Operating temperature -30°C ~ +60°C (-30°C ~ +60°C)
Operating relative humidity <95%.
IP67 degree of protection
Metal housing
Dimensions: 76 (W) x 77 (H) x 244 mm
Net weight: 830 g

Documentation

	Language	Name	Type	Action
	PT		Commercial Documentation
	ES,EN,FR,PT,IT,DE,NL,PL		Software
	IT		Commercial Documentation
	NL		Commercial Documentation
	EN		Firmware
	ES,EN,FR,PT,IT,DE,NL,PL		Software
	EN		Commercial Documentation
	FR		Commercial Documentation
	ES		Commercial Documentation
	EN		Manual
	ES		Manual
	FR		Manual
	IT		Manual
	EN		Self-generated File
