MOBOTIX-74

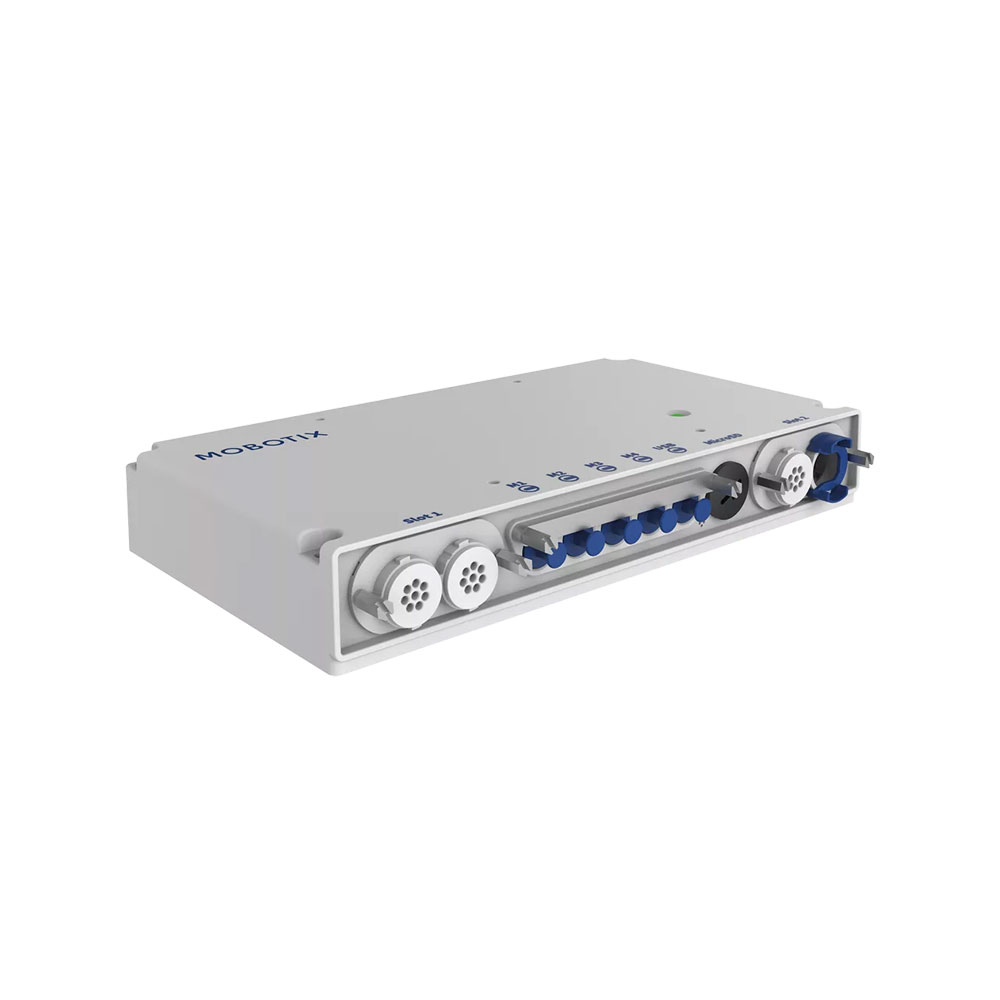

Mobotix S74 modular network camera with up to 4 independent sensors
MOBOTIX-74
MX-S74A-VDC




Main features
Specifications
- IP network camera with modular architecture
- Up to 4 connectable modules (sensor, thermal or functional)
- Image sensor depending on the optical module used
- Supports resolutions up to 4K depending on installed Lens
- Decentralized processing with encrypted internal recording
- Video compression: H.264, MxPEG, MJPEG
- Image functions: backlight compensation, rotation, areas of interest (ROI), privacy masks
- Intelligent video features:
- Face recognition
- Motion detection
- License plate recognition (with additional software)
- People counting
- Tamper detection
- Alarm events:
- Motion, tamper, disconnection, user-defined events.
- Two-way audio: microphone and speaker (with external module)
- Internal storage: 8 GB eMMC on board
- MicroSD slot for expansion (card not included)
- Network interface: Ethernet 10/100 Mbit/s
- Network protocols: IPv4, IPv6, HTTP, HTTPS, FTP, RTP, RTSP, TCP, UDP, DHCP, NTP, DNS, SMTP, MQTT, SIP
- ONVIF Profile T, CGI, Mobotix API support
- Software: MxManagementCenter (MxMC), analytics apps MxAnalytics
- Mobile clients: Android / iOS
- Power supply: IEEE 802.3af PoE (Class 3)
- Max. power consumption: 15 W (with 4 modules connected)
- Operating temperature: -40 °C to +65 °C
- Humidity: 10 % - 90 % (non-condensing)
- Storage temperature: -40 °C to +70 °C (-40 °C to +70 °C)
- IP66 and IK10 protection
- Compact metal housing for concealed mounting
- Dimensions: 172 × 118 × 57 mm
- Weight: 872 g
- Certifications: CE, FCC, RoHS
REFERENCE / MODEL | MOBOTIX-74 / MX-S74A-VDC |
---|---|
Audio | No |
Ingress protection | IP66 |
Special Protection | Vandal-proof (IK10) |
Codec | H.264 |
PoE | PoE |
SD Slot | Yes |
Installation environment | Outdoor |
Material | Metal |
Alarm channels | No |
Connectivity | IP |
Intelligent functions | Face recognition || LPR || People counting |
Compatibility | Onvif |
