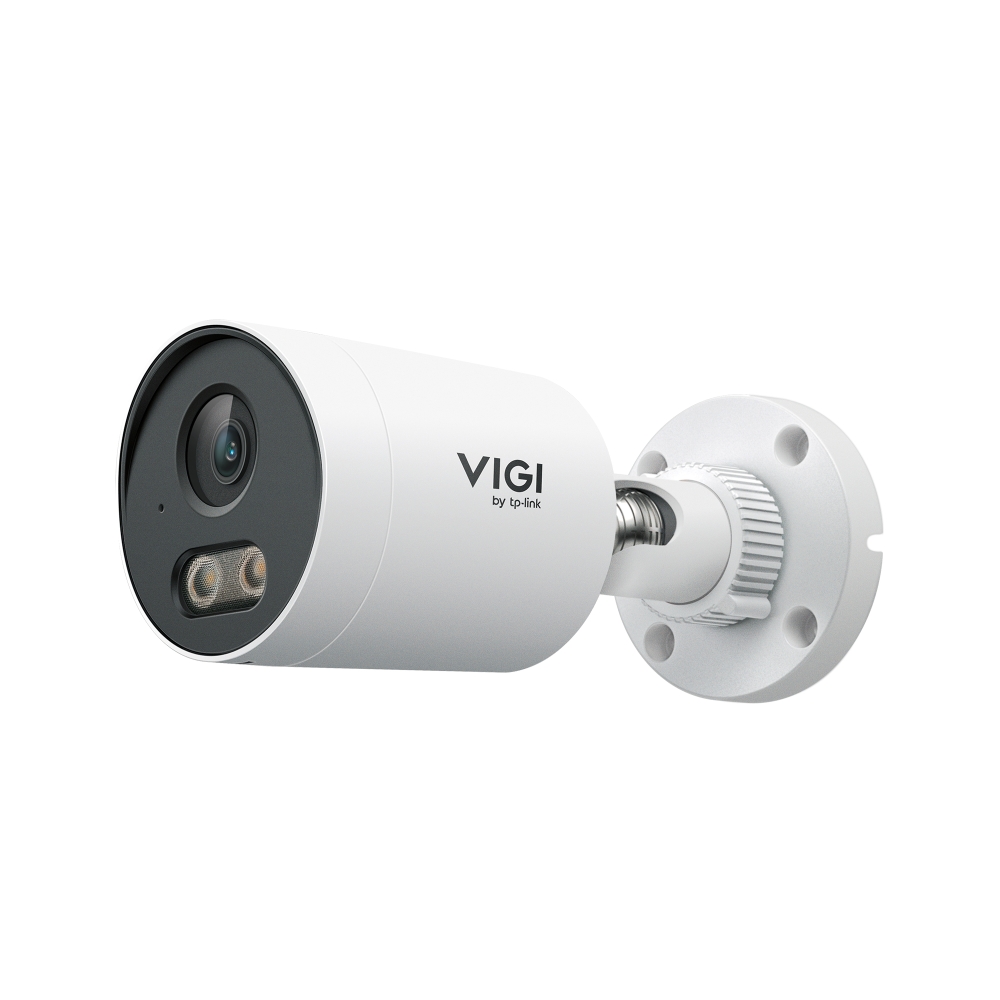

TP-Link VIGI InSight S325 Full-Color IP Camera

Technical Features

• Full-Color IP Camera TP-Link VIGI InSight S325
• 1/3" Progressive Scan CMOS Sensor
• Maximum resolution of 2MP (1920 × 1080)
• IR Cut (ICR) filter for day and night operation
• Minimum illumination of 0.005 lux and 0 lux with IR or white light
• LightPro technology with intelligent IR/color switching
• Integrated infrared illumination and white light up to 30 m range
• Fixed lens 4 mm, F2.0
• Angle of view: H 75.2°, V 40.8°, D 88.3°.

Video Stream

• Stream 1: 2MP@25 fps
• Stream 1 Resolutions: 1920 × 1080, 1280 × 960, 1280 × 720
• Stream 2: up to 848 × 480@25 fps
• Stream 2 Resolutions: 848 × 480, 704 × 576, 640 × 480, 640 × 360, 352 × 288, 320 × 240
• Stream 1 Compression: H.265+/H.265/H.264+/H.264
• Compression Stream 2: H.265/H.264
• CBR and VBR bitrate control
• Bitrate Stream 1: 256 Kbps at 4 Mbps
• Bitrate Stream 2: 64 Kbps at 512 Kbps

Features

• DWDR (Digital WDR)
• BLC, HLC and 3D DNR
• Smart IR
• Up to 4 privacy masks
• 1 ROI region

Intelligent functions

• On-camera classification of people and vehicles
• Intrusion detection
• Line crossing detection
• Region entry detection
• Region exit detection
• Enhanced motion detection with person and vehicle classification
• Camera tampering detection
• Illegal login exception
• Event actions by sending email, sending to alarm server, uploading to FTP and push notification

Audio

• Built-in microphone
• 8 kHz sampling frequency
• Audio bitrate 64 Kbps (G.711 alaw)
• Ambient noise filtering
• Approximate pickup within 4.6 m (15 ft) radius

Network

• RJ45 10/100 Mbps interface with PoE support
• TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS protocols
• API
• ONVIF Profile S and T support
• Up to 3 main streams and 3 substreams in simultaneous viewing
• Supported software VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS and VIGI Config Tool
• Supported browsers Google Chrome 57 or higher, Firefox 52 or higher, Safari 11 or higher, Microsoft Edge 91 or higher
• Security through password protection, HTTPS encryption, IP address filtering and Digest authentication

Power supply

• Power supply 12 V DC ±5 %, max. power consumption 7.4 W
• PoE IEEE 802.3af/at PoE, class 0, max. power consumption 8W

Environmental

• Operating temperature from -30 °C to 60 °C
• Operating humidity ≤95 % noncondensing
• IP67 protection

Physical characteristics

• Metal material
• 3AXIS: Pan 0°~360°, Tilt 0°~90°, Rotate 0°~360°
• Wall, ceiling or mast installation
• Dimension: 169.8 × 74 × 74 mm
• Net weight: 0.353 kg

Contents

• 2MP Full-Color IP Camera with 4mm Fixed lens TPLINK-271 (InSight S325(4mm))
• Waterproof cabling accessories
• Mounting accessories
• Quick Start Guide

Certifications and standards

• CE
• FCC
• NTRA
• KC
• VCCI
• BSMI
