DAHUA-4972 | Dahua WizMind KIT-L1 4MP pinhole IP camera
DAHUA-4972DH-KIT/IPC-HUM8441EP-E1-L1-0280B-S3Dahua WizMind KIT-L1 4MP pinhole IP camera
Volver a Network Cameras
Products
CCTV
Network Cameras
Hidden & Mini Cameras
DAHUA-4972

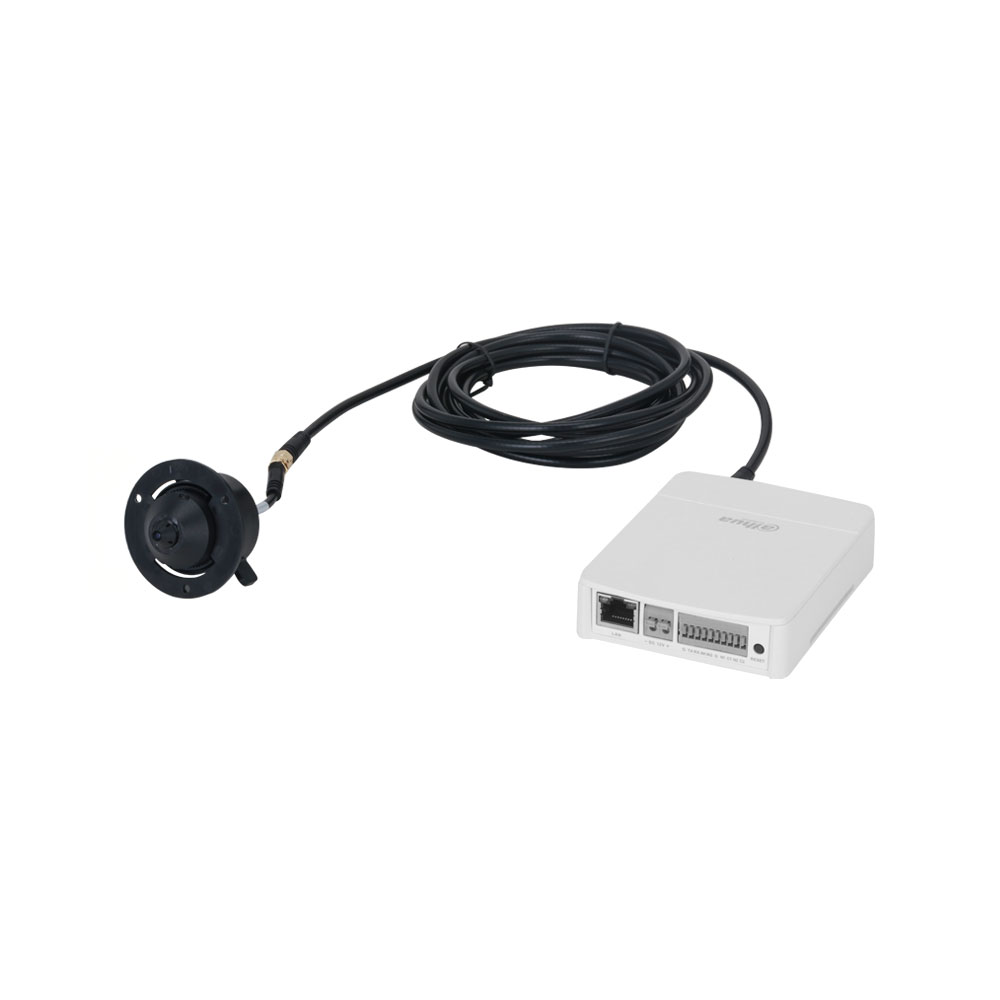

Dahua WizMind KIT-L1 4MP pinhole IP camera

DAHUA-4972

DH-KIT/IPC-HUM8441EP-E1-L1-0280B-S3

Main features

  • Dahua KIT-L1 pinhole hidden IP camera
  • 4MP@60ips
  • ICR, 0.005 lux color and 0.0005 lux B/W
  • Fixed lens 2.8 mm, FOV 100°
  • WDR 120dB, 3D NR, HLC, BLC, ROI
  • IVS analytics, face detection, people counting, AcuPick, perimeter protection, privacy
  • Audio 1 input/1 output
  • 2 alarm inputs/outputs
  • MicroSD up to 512GB
  • Network with multiple protocols, ONVIF and P2P
  • PoE and 12V DC
  • Indoor use in discrete applications

Specifications

Technical Features

  • Dahua KIT-L1 IP covert pinhole camera
  • 1/2.7" 4MP CMOS sensor
  • Maximum resolution 2688×1520
  • ICR, minimum illumination 0.005 lux color, 0.0005 lux B/W
  • Fixed lens 2.8mm F2.0
  • Angle of view: H 100°, V 57°, D 114° S/N ratio >56 dB
  • S/N ratio >56 dB

Video

  • Codecs: H.265, H.264, MJPEG (substream)
  • AI H.265, AI H.264
  • Stream 1: 4MP (2688×1520)@1-50/60 ips
  • Stream 2: 1080P (1920×1080)@1-25/30 ips
  • Stream 3: 1080P (1920×1080)@1-25/30 ips
  • 3 simultaneous streams
  • Additional resolutions: 3MP, 1080P, 1.3MP, 720P, D1, VGA, CIF
  • WDR 120 dB, BLC, HLC, 3D NR, defog, LDC, ROI
  • 0°/90°/180°/270° rotation
  • Privacy masks (4 areas)

Intelligent functions

  • Perimeter protection (line crossing, intrusion, loitering, parking, crowding)
  • Face detection with capture, attributes and expressions
  • People counting (entry, exit, in-area, queue management)
  • AcuPick: fast target search
  • Abandoned and missing object detection
  • Privacy protection through mosaic

Audio

  • 1 audio input and 1 audio output (3.5 mm jack)
  • Codecs: G.711a/u, PCM, G.726, G.723

Storage

  • MicroSD slot up to 512 GB (card not included)
  • NAS, FTP and SFTP support

Alarms

  • 2 alarm inputs and 2 alarm outputs

Communication interface

  • RJ-45 10/100 Base-T port

Network

  • Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Bonjour, Auto Registration
  • ONVIF (S, G, T), CGI, P2P, Milestone, Genetec
  • Software: Smart PSS, DSS, DMSS, DMSS, DoLynk Care
  • Mobile client: iOS, Android

Power supply

  • 12 V DC / PoE (802.3af)
  • Max. power consumption 6.7 W (12 V DC), 8.6 W (PoE)
  • Supports dual power backup

Environmental

  • Operating temperature: -40 °C ~ +60 °C
  • Humidity ≤95% non-condensing

Physical characteristics

  • Metal material
  • Dimensions:
    • Module E1: 110 × 83 × 24 mm
    • L1 lens: Ø30.5 × 45.8 mm
  • Net weight: 0.511 kg
  • Gross weight: 0.646 kg

Contents

  • 4MP pinhole covert IP camera DAHUA-4972 (DH-KIT/IPC-HUM8441EP-E1-L1-0280B-S3)

Certifications

  • CE-LVD: EN62368-1
  • CE-EMC: Directive 2014/30/EU
REFERENCE / MODEL DAHUA-4972 / DH-KIT/IPC-HUM8441EP-E1-L1-0280B-S3
Resolution 4MP
Audio 1 input / 1 output
Lens 2.8 mm
Special Protection No
Sensor 1/2.7" CMOS
StarLight No
WDR (Backlight) WDR (120dB)
Codec AI || H.264 || H.265
PoE PoE
SD Slot Yes
Colour Black
Installation environment Indoor
Material Metal
Alarm channels 2 inputs / 2 outputs
Connectivity IP || YES (P2P)
AI Series WizMind
Intelligent functions Abandoned objects || AcuPick || Face detection || People counting || Perimeter protection
Compatibility Onvif
