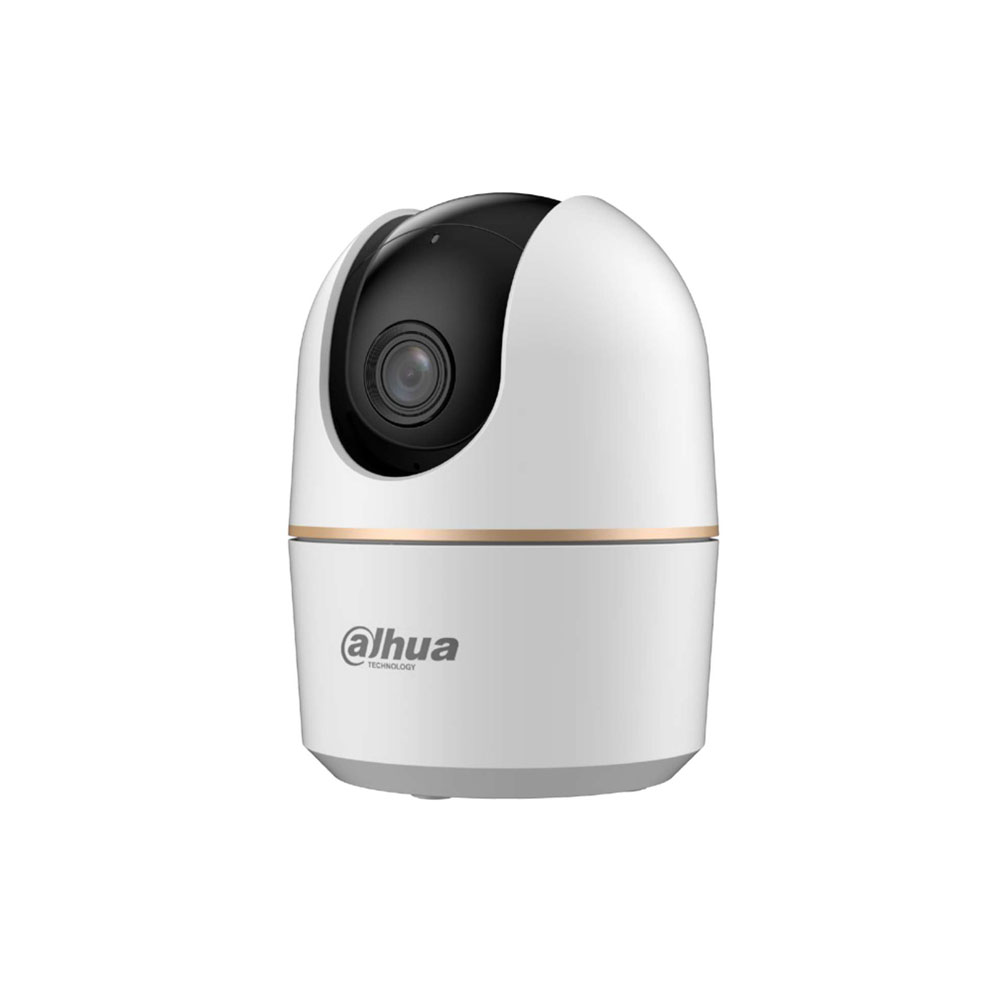

3MP Dahua Wireless 3MP WiFi IP Dome with Pan & Tilt

Technical Features

• Dahua Wireless Pan & Tilt WiFi IP Dome
• 1/3.2" CMOS sensor
• Maximum resolution of 3MP (2304×1296)
• IR illumination up to 10m
• Automatic on/off control of the 2.8 mm illuminator
• Fixed lens 2.8mm illuminator
• F2.0 maximum aperture
• Viewing angle of 99° horizontal, 55° vertical and 117° diagonal

Video

• H.265 compression
• Main stream: 2304 × 1296 at 1~15/25/30 fps
• Substream: 640 × 360 at 1~25/30 fps
• 3MP (2304 × 1296) and HD (640 × 360) resolution
• H.265 video bitrate from 80 kbps to 4096 kbps
• Automatic Day/Night mode with ICR, color and B/W

Functionalities

• Digital WDR
• Motion detection
• 0° and 180° image rotation
• One-click privacy mode
• Preset patrolling
• Abnormal sound alarm

Intelligent functions

• Human detection
• Pet detection
• Autotracking

Positioner

• Horizontal movement from 0° to 355
• Vertical movement from -5° to 80
• 360° vision coverage with no blind spots

Audio

• Built-in microphone
• Built-in speaker
• G.711a audio compression

Storage

• MicroSD card slot up to 256 GB (card not included)

Network

• RJ45 10/100 Base-T network port
• WiFi 6 IEEE 802.11b/g/n/ax 2.412~2.472 GHz and 2.4G/5.2G/5.3G/5.6G/5.8G MHz
• DMSS management software
• Mobile application for iOS and Android
• Bluetooth pairing

Power supply

• 5V DC power supply
• USB-C port
• Basic power consumption of 1.6 W
• Maximum power consumption 3.6 W live and 3.6 W with PT rotation

Environmental

• Operating temperature -10°C to +45°C (-10°F to +45°F)
• Operating humidity up to 95 % non-condensing

Physical characteristics

• Plastic material
• Tabletop installation
• Dimensions Φ77.8 mm × 108.1 mm
• Net weight 195 g

Contents

• DAHUA-5165 Pan & Tilt WiFi IP Dome (DH-IPC-HPT1330DAP-STW-0280B-EUR)
• Installation bracket
• Hardware package
• Power cable
• Quick Start Guide
• Legal and Regulatory Information
• QR code
• Power adapter

Certifications and regulations

• CE
