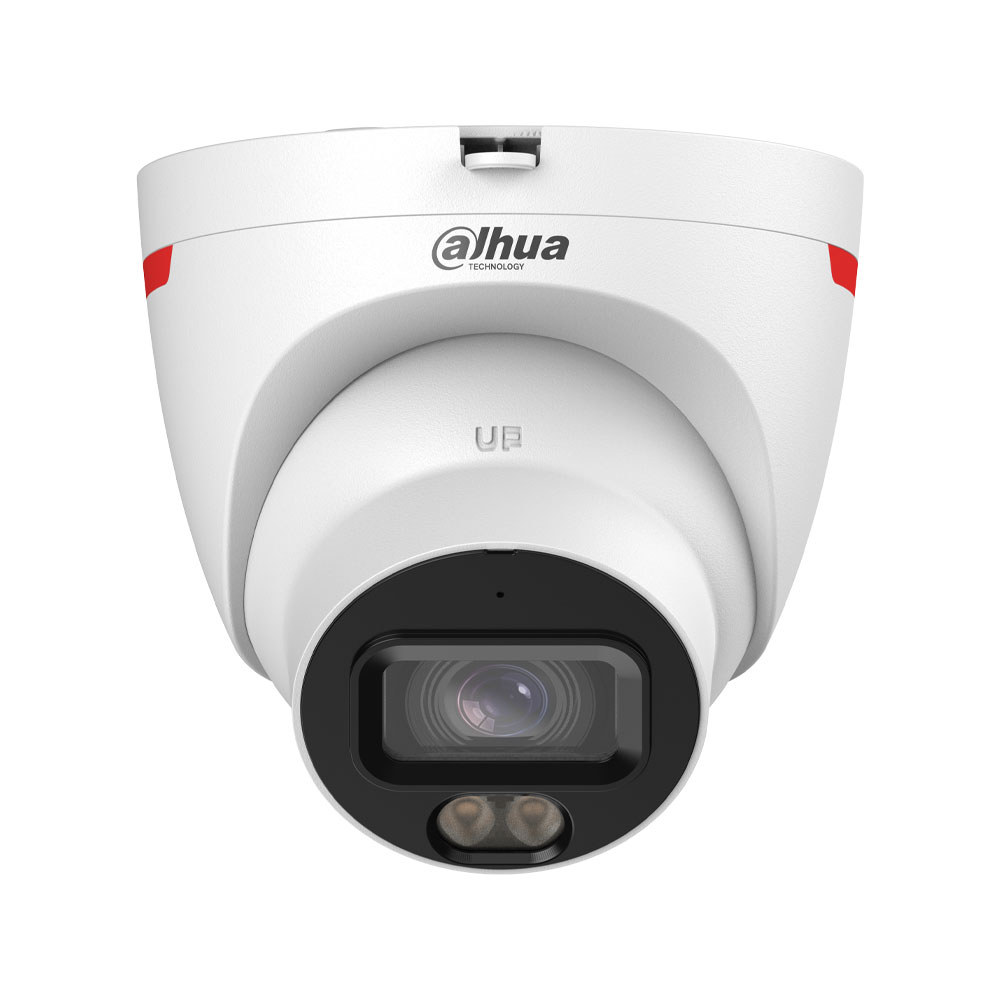

6MP WizColor IP Dome for outdoor use

Name: DAHUA-4837
SKU: DH-IPC-HDW2649TP-S-LED-0280B-PRO
Price: 213.067 EUR
Availability: InStock
Rating: 5 (38 reviews)

DAHUA-4837

DH-IPC-HDW2649TP-S-LED-0280B-PRO

Main features

6MP Dahua IP Dome with 2.8mm Fixed lens
0.0007 lux
Warm illumination up to 30m
H.265+ compression
WizColor technology
WDR 120 dB
Perimeter protection and SMD Plus
Built-in microphone
MicroSD slot
PoE or 12 VDC power supply
IP67 protection

Specifications

1/1.8" progressive scan CMOS sensor
Maximum resolution: 3288 × 1850 (6MP)
Fixed lens 2.8 mm
Angle of view: 92° (H), 51° (V), 107° (D)
Aperture: F1.0
Day/Night Mode: Color / B/W, with ICR Filter
Minimum illumination: 0.0007 lux (F1.0)
Warm illumination: up to 30 m
WDR 120 dB, BLC, HLC, 3D NR, ROI, Smart Illumination, LDC
Compression: H.265+, H.265, H.264+, H.264, MJPEG (substream)
Stream 1: 6MP (3288×1850), 4MP, 3MP, 2304×1296, 1080P, 1.3MP, 720P (1~20/25/30 ips)
Stream 2: D1, VGA, CIF (1~25/30 ips)
Supported resolutions: 6MP, 5MP, 4MP, 3MP, 2304×1296, 1080P, 1.3MP, 720P, D1, VGA, CIF
Built-in microphone
Audio: G.711a/u, PCM, G.726
Intelligent detection: line crossing, intrusion (with classification of people and vehicles)
Smart features: SMD Plus, Smart Search (requires compatible NVR).
Events: motion, tampering, audio, SD failure, network disconnection, illegal access, IP conflict, voltage
Privacy masks: up to 4 zones
Storage: MicroSD slot up to 256 GB (card not included), FTP/SFTP, NAS
Protocols: IPv4/IPv6, HTTP, TCP, UDP, RTP, RTSP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, UPnP, Multicast, ICMP, IGMP, NFS, PPPoE, P2P, Bonjour
ONVIF support: S, G, T / CGI profiles.
Clients: Smart PSS Lite, DSS, DMSS
Browsers: IE, Chrome, Firefox
Security: HTTPS, digest, WSSE, IP/MAC filtering, 802.1x, secure boot/run/update, X.509, syslog
Network interface: 1 × RJ45 10/100 Mbps
Power supply: 12 VDC ±30 %, PoE (802.3af)
Maximum power consumption: 5.6 W (12 VDC), 6.4 W (PoE)
Operating temperature: -40 °C to +60 °C (-40 °C to +60 °C)
Storage temperature: -40 °C to +60 °C (-40 °C to +60 °C)
Operating and storage humidity: ≤95% noncondensing
IP67 protection
Housing: metal core, plastic cover
Dimensions: 109.5 × Ø109.9 mm
Net weight: 0.42 kg
Gross weight: 0.59 kg

REFERENCE / MODEL	DAHUA-4837 / DH-IPC-HDW2649TP-S-LED-0280B-PRO
Resolution	6MP
Audio	Microphone
IR Distance	21-40m
Ingress protection	IP67
Lens	2.8 mm
Special Protection	No
Sensor	1/1.8 CMOS
StarLight	StarLight
WDR (Backlight)	WDR (120dB)
Codec	H.264 \|\| H.264+ \|\| H.265 \|\| H.265+
PoE	PoE
SD Slot	Yes
Colour	White
Installation environment	Outdoor
Material	Metal
Alarm channels	No
Connectivity	IP \|\| YES (P2P)
AI Series	WizColor \|\| WizSense
Intelligent functions	Perimeter protection \|\| SMD Plus
Compatibility	Onvif

Documentation

	Language	Name	Type	Action
	EN		Manual
	EN		Manufacturer's Data Sheet
	EN		Manual
	EN		Self-generated File
