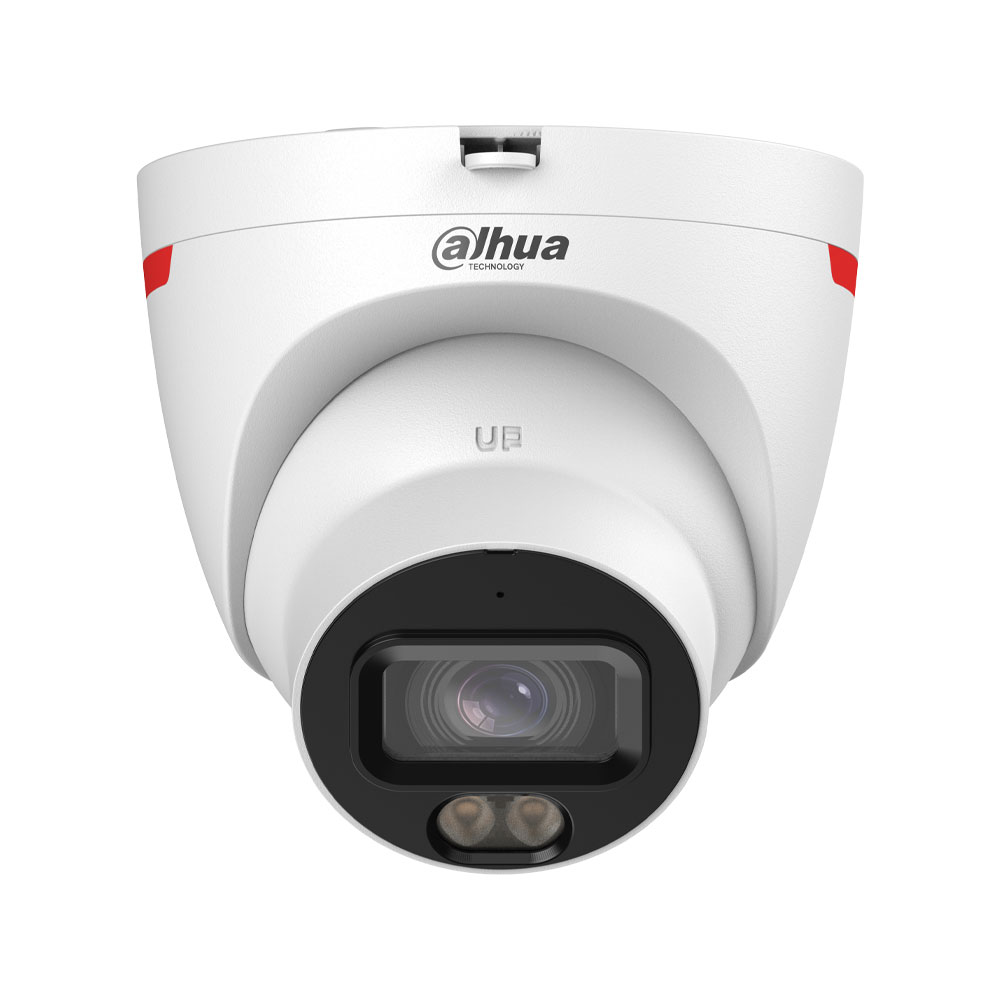

8MP WizColor IP Dome for outdoor use

Name: DAHUA-4838
SKU: DH-IPC-HDW2849TP-S-LED-0280B-PRO
Availability: InStock
Rating: 5 (39 reviews)

DAHUA-4838

DH-IPC-HDW2849TP-S-LED-0280B-PRO

Simplify your business from a single platform.Invitation Code:CJKEBFKY

Access DoLynk Care

Main features

8MP Dahua IP dome with 2.8mm Fixed lens
0.0008 lux
Warm illumination up to 30 m
H.265+ compression
WizColor technology
WDR 120 dB
Perimeter protection and SMD Plus
Built-in microphone
MicroSD slot
PoE or 12 VDC power supply
IP67 protection

Specifications

1/1.8" progressive scan CMOS sensor
Maximum resolution: 3840 × 2160 (8MP)
Fixed lens 2.8 mm
Angle of view: 110° (H), 59° (V), 131° (D)
Aperture: F1.0
Day/Night Mode: Color / B/W, with ICR Filter
Minimum illumination: 0.0008 lux (F1.0)
Warm illumination: up to 30 m
WDR 120 dB, BLC, HLC, 3D NR, ROI, LDC, Smart Illumination
Compression: H.265+, H.265, H.264+, H.264, MJPEG (substream)
Stream 1: 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P (1~20/25/30 ips)
Stream 2: D1, CIF, VGA (1~25/30 ips)
Supported resolutions: 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1, VGA, CIF
Built-in microphone
Audio: G.711a/u, PCM, G.726
Intelligent detection: line crossing, intrusion (classification of people and vehicles)
Intelligent functions: SMD Plus, Smart Search (with compatible NVR).
Events: motion, tampering, audio, SD failure, network disconnection, illegal access, duplicate IP, voltage
Privacy masks: up to 4 zones
Storage: MicroSD slot up to 256 GB (card not included), FTP/SFTP, NAS
Network protocols: IPv4/IPv6, HTTP, TCP, UDP, RTP, RTSP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, UPnP, Multicast, ICMP, IGMP, NFS, PPPoE, P2P, Bonjour
ONVIF support: S, G, T / CGI profiles
Network interface: 1 × RJ45 10/100 Mbps
Clients: Smart PSS Lite, DSS, DMSS
Supported browsers: IE, Chrome, Firefox
Security: HTTPS, digest, WSSE, IP/MAC filtering, 802.1x, secure boot/run/update, X.509, syslog
Power supply: 12 VDC ±30 %, PoE (802.3af)
Maximum power consumption: 5.6 W (12 VDC), 6.4 W (PoE)
Operating temperature: -40 °C to +60 °C (-40 °C to +60 °C)
Storage temperature: -40 °C to +60 °C (-40 °C to +60 °C)
Operating and storage humidity: ≤95% noncondensing
IP67 protection
Housing: metal core, plastic cover
Dimensions: 109.5 × Ø109.9 mm
Net weight: 0.42 kg
Gross weight: 0.59 kg

REFERENCE / MODEL	DAHUA-4838 / DH-IPC-HDW2849TP-S-LED-0280B-PRO
Resolution	8MP
Audio	Microphone
IR Distance	21-40m
Ingress protection	IP67
Lens	2.8 mm
Special Protection	No
Sensor	1/1.8 CMOS
StarLight	StarLight
WDR (Backlight)	WDR (120dB)
Codec	H.264, H.264+, H.265, H.265+
PoE	PoE
SD Slot	Yes
Colour	White
Installation environment	Outdoor
Material	Metal
Alarm channels	No
Connectivity	IP, P2P
AI Series	WizColor, WizSense
Intelligent functions	Perimeter protection, SMD Plus
Compatibility	Onvif

Documentation

	Language	Name	Type	Action
	EN		Certificate
	EN		Certificate
	EN		Manual
	EN		Manufacturer's Data Sheet
	EN		Self-generated File
