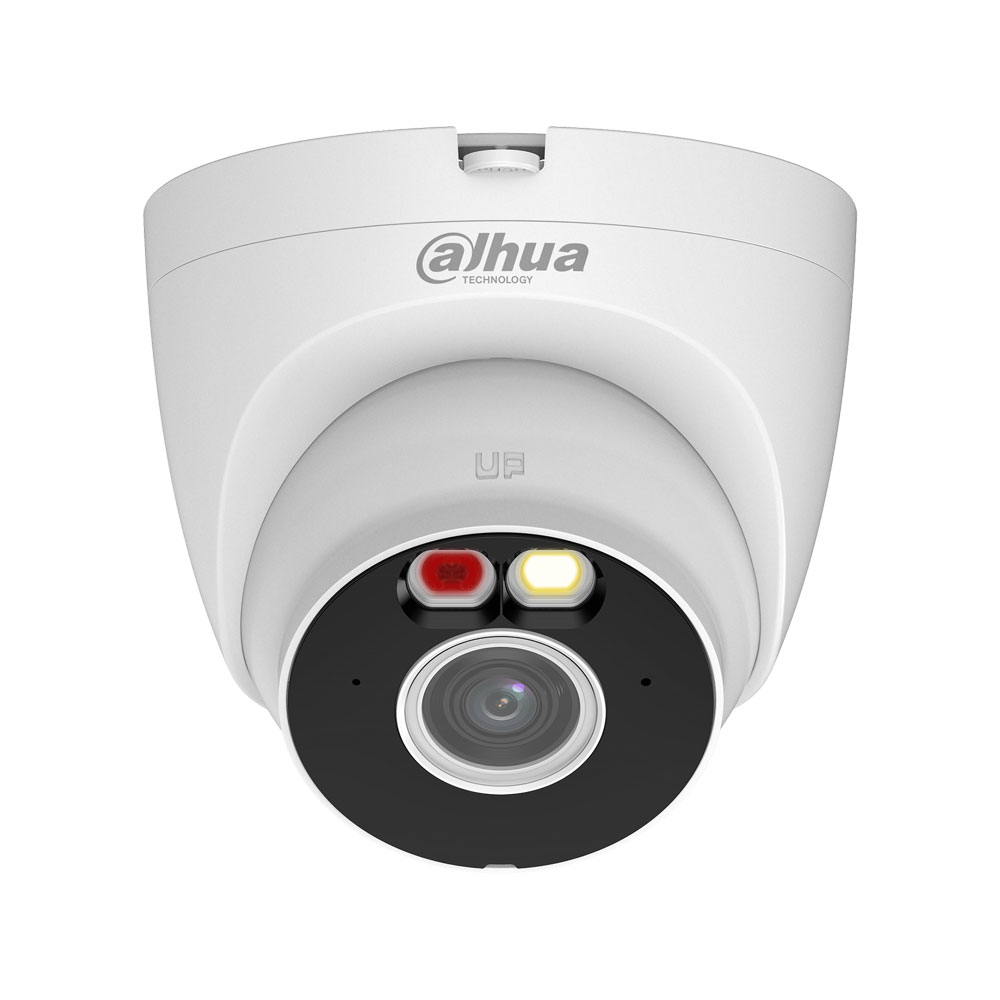

Dahua 3MP WiFi IP Dome for outdoor use

DAHUA-4866

DH-IPC-HDW1339DAP-SW-PV-0280B

View previous model

Dome WIFI IP Dahua 2MP outdoor DAHUA-3284-FO

Main features

Dahua Wireless WiFi IP Dome Camera
3MP@25/30 ips, H.265 compression
ICR, 0.0005 lux
Smart Dual Light up to 30 m
Fixed lens 2.8 mm
DWDR, detection of people and vehicles
Built-in microphone and speaker
MicroSD slot
IP67
12 VDC power supply.

Specifications

1/2.8" CMOS sensor with maximum resolution 2304 × 1296
Fixed lens 2.8mm (F1.6)
Angle of view: 103° (H), 55° (V), 123° (D)
ICR filter with day/night mode
0.005 lux (color) / 0.0005 lux (B/W) / 0 lux with illuminator
Smart Dual LightIR and warm light up to 30 m (100 ft)
Dual illuminator: 1 IR LED + 1 white LED
Video compression: H.265, H.264, H.264H, H.264B, MJPEG (substream only)
Resolutions: 3MP (2304×1296), substream 640×360
Stream 1: 2304×1296 (1-25/30 fps)
Stream 2: 640×360 (1-25/30 ips).
Image functions: DWDR, 0°/180° rotation.
Intelligent functions:
- People detection
- Vehicle detection
Sound and light alarm with pre-recorded or customized messages
Built-in microphone and speaker
Audio: G.711a, G.711Mu, PCM compression
MicroSD slot up to 256 GB (card not included)
Network interface: RJ-45 (10/100 Base-T)
Connectivity: Wi-Fi 6 IEEE 802.11b/g/n/ax (2.4 GHz), pairing via Bluetooth
Interoperability: ONVIF (Profile S/G/T), CGI
Compatible software: Smart PSS Lite, DSS, DMSS
Mobile clients: Android / iOS
Integrated reset button
Power supply: 12 VDC (±30 %)
Power consumption: 2.1 W (basic) / 7.1 W (max., with light and alarm)
Operating temperature: -40 °C to +60 °C
Humidity: ≤95 % (non-condensing)
IP67 protection
Material: metal + plastic
Dimensions: 102,2 × Ø109,9 mm
Net weight: 0.32 kg

REFERENCE / MODEL	DAHUA-4866 / DH-IPC-HDW1339DAP-SW-PV-0280B
Resolution	3MP
Series	Smart Dual Light
Audio	Microphone \|\| Speaker \|\| Two-way
IR Distance	21-40m
Ingress protection	IP67
Lens	2.8 mm
Special Protection	No
Sensor	1/2.8" CMOS
StarLight	StarLight
WDR (Backlight)	D-WDR
Codec	H.264 \|\| H.265
PoE	No
SD Slot	Yes
Colour	White
Installation environment	Outdoor
Material	Metal \|\| Plastic
Alarm channels	No
Connectivity	IP \|\| WiFi
Intelligent functions	SMD
Compatibility	Onvif
