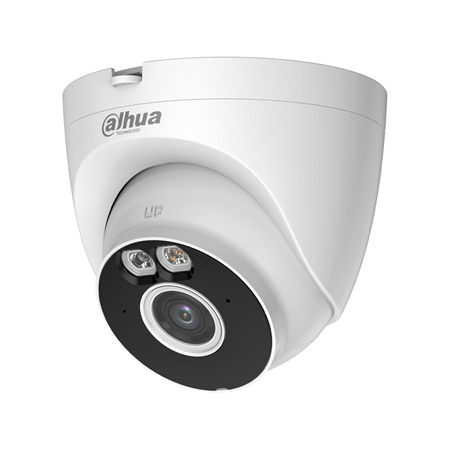

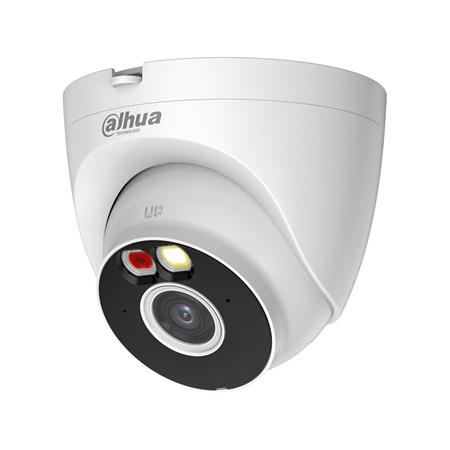

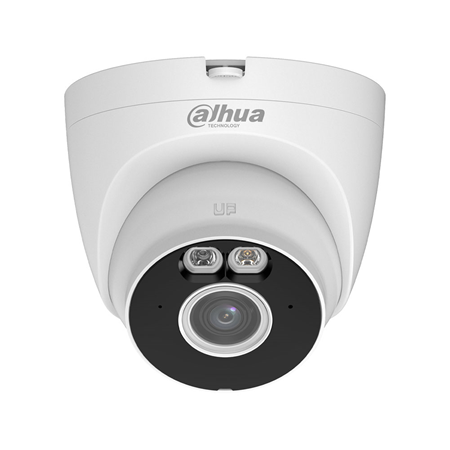

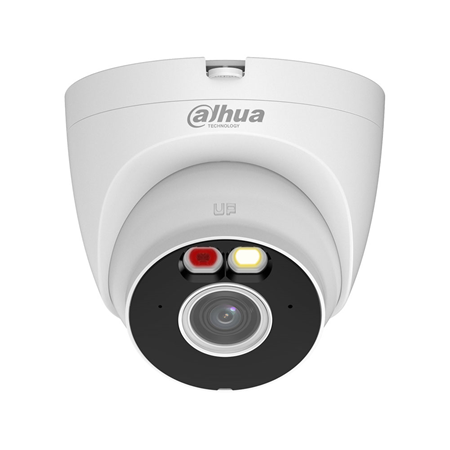

Wi-Fi IP Dome Smart Dual Light Dahua Wireless Series

Technical Features

• Dahua Wireless Series Wi-Fi IP Dome
• 1/2.7" CMOS sensor
• Maximum resolution of 5MP (2880 × 1620)
• ICR, color at 0.007 lux, B/W at 0.0007 lux, 0 lux with illumination
• IR illumination and white light up to 30m (100ft)
• Fixed lens 2.8 mm (H: 108°; V: 57°; D: 129°)
• Aperture F1.6

Video Stream

• Codecs: H.265, H.264, MJPEG (substream)
• Stream 1: 5MP@25/30 fps
• Stream 2: 640 × 360@25/30 ips
• Bitrate: 32-6144 kbps

Features

• Auto ICR, Day/Night mode
• Digital WDR
• Image rotation: 0°/180

Intelligent functions

• People detection
• Vehicle detection

Audio

• Built-in microphone
• Compression: G.711a, G.711Mu, PCM

Storage

• Slot for Micro SD card up to 256 GB

Communication interface

• RJ-45 port (10/100 Base-T)
• Reset button

Network

• Wi-Fi IEEE 802.11b/g/n/ax (2.4 GHz, Wi-Fi 6)
• Bluetooth for quick pairing
• ONVIF (S, G, T) and CGI support
• Software: Smart PSS Lite, DSS, DMSS
• Mobile App: iOS and Android

Power supply

• 12 VDC
• Power consumption: basic 2.1 W / maximum 5.1 W (with white light)

Environmental

• Operating temperature: -40 °C to +60 °C
• Relative humidity: ≤95 % (non-condensing)
• IP67 protection

Physical characteristics

• Material: metal and plastic
• Dimensions: 102,2 × Φ109,9 mm
• Net weight: 0.32 kg
• 3AXIS: Pan 0°-360°, Tilt 0°-78°, Rotation 0°-360°

Contents

• Camera
• Power supply
• Waterproof connector
• Quick guide and legal documentation
• Mounting bracket and hardware

Certifications

• CE-LVD (EN62368-1)
• CE-EMC (Directive 2014/30/EU)
• CE-RED (Directive 2014/53/EU)
