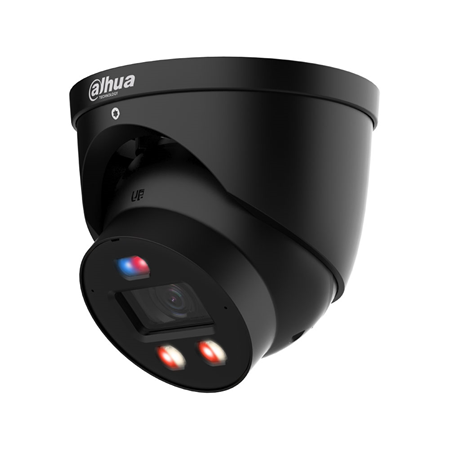

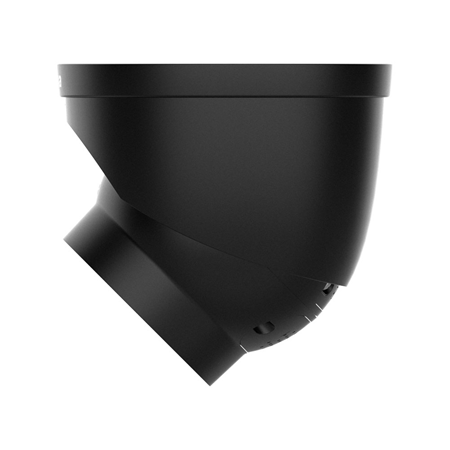

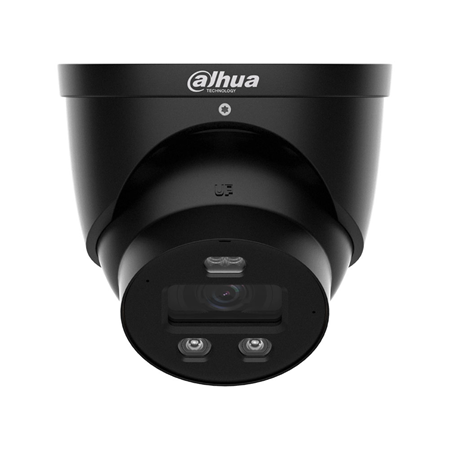

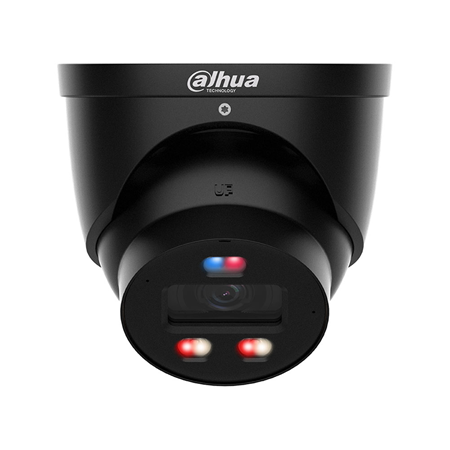

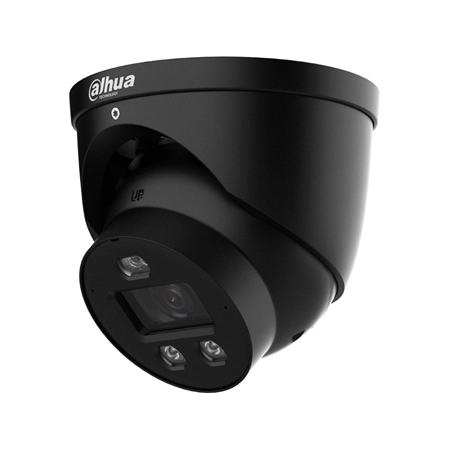

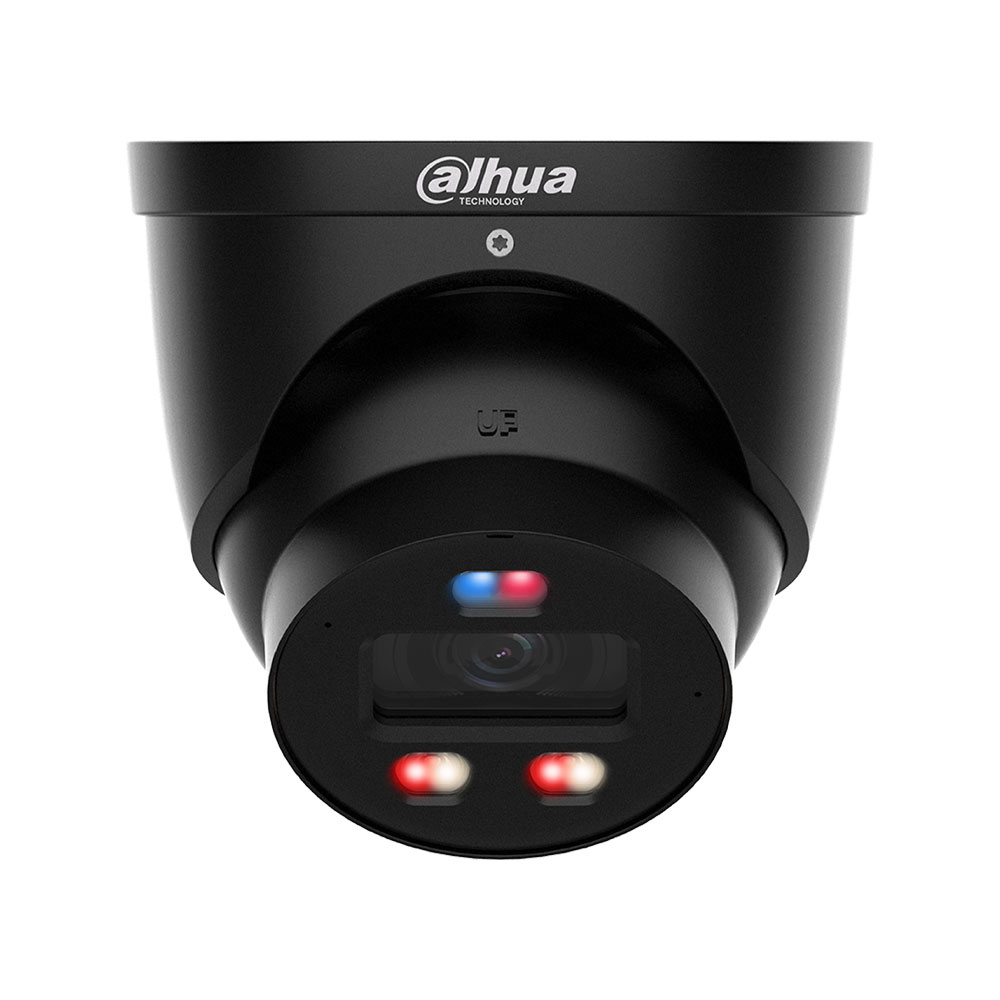

Dahua 4MP WizColor IP Dome with TiOC Pro Active Deterrence

Name: DAHUA-4908
SKU: DH-IPC-HDW3449HP-AS-PV-0280B-PRO-Black
Availability: InStock
Rating: 5 (9 reviews)

DAHUA-4908

DH-IPC-HDW3449HP-AS-PV-0280B-PRO-Black

Main features

IP dome camera 4MP@25 ips
Fixed lens of 2.8 mm
ICR filter
0.005 lux
Real WDR of 130 dB
Analytical functions with detection of people and vehicles
Active deterrence TiOC
MicroSD slot
12 VDC or PoE power supply
Black color

Specifications

1/1.8" CMOS sensor with 2688 × 1520" maximum resolution
Fixed lens 2.8mm (F1.0)
Angle of view: 111° (H), 60° (V), 135° (D)
Day/night mode with ICR filter
0.0005 lux (color) / 0.0004 lux (B/W) / 0 lux with IR or white light
IR and white light illumination up to 30 m
Video compression H.265, H.264 and MJPEG (substream)
Smart Codec: Smart H.265+ / Smart H.264+
AI H.265 / AI H.264 Smart Encoding
Supported resolutions: 4MP (2688 × 1520 / 2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1 (704 × 576 / 704 × 480), VGA (640 × 480), CIF (352 × 288 / 352 × 240)
Stream 1: 4MP (1~30 fps)
Stream 2: 1080P (1~30 fps)
Image functions: digital WDR, BLC, HLC, 3D NR, ROI, rotation, LDC
Privacy: 8 configurable masks
Intelligent video functions:
- SMD 4.0
- Perimeter protection: line crossing and intrusion with person and vehicle classification
- AcuPick: intelligent target search
- AI SSA: automatic scene-based image adjustment
Alarms by video analysis events:
- Motion, tampering, scene changed, audio, SD missing, SD error, SD error, IP conflict, intrusion, line crossing, light intensity, network failure, illegal access, digital input, security exception
Bidirectional audio: 1 RCA input and 1 RCA output + built-in microphone and speaker
Active deterrent: red/blue strobe light and siren with customizable audio
MicroSD slot up to 512 GB (card not included)
Network interface: RJ-45 10/100 Base-T
Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP, P2P
ONVIF (Profile S/G/T), CGI support
Software: Smart PSS Lite, DSS, DMSS, DoLynk Care
Mobile clients: Android / iOS
Power supply: 12 VDC or PoE 802.3af
Max. power consumption: 7.4 W (12 VDC) / 8.7 W (PoE)
Operating temperature: -40 °C to +60 °C
Humidity: ≤95 %.
IP67 protection
Metal housing
Black color
Dimensions: Ø122 × 116.1 mm
Net weight: 0.8 kg
Gross weight: 1.0 kg
3AXIS: 0°~360° (PAN), 0°~78° (TILT), 0°~360° (Rotation)
Certifications: CE-LVD, CE-EMC

REFERENCE / MODEL	DAHUA-4908 / DH-IPC-HDW3449HP-AS-PV-0280B-PRO-Black
Resolution	4MP
Series	Smart Dual Light, TiOC, TiOC Pro
Audio	1 input / 1 output, Microphone, Speaker, Two-way
IR Distance	21-40m
Ingress protection	IP67
Lens	2.8 mm
Special Protection	No
Sensor	1/1.8 CMOS
StarLight	FullColor
WDR (Backlight)	WDR (120dB)
Codec	H.264, H.264+, H.265, H.265+
PoE	PoE
SD Slot	Yes
Colour	Black
Installation environment	Outdoor
Material	Metal
Alarm channels	1 input / 1 output
Connectivity	IP, P2P
AI Series	WizColor, WizSense
Intelligent functions	AcuPick, Perimeter protection, SMD 4.0
Compatibility	Onvif

Documentation

	Language	Name	Type	Action
	EN		Manual
	EN		Manufacturer's Data Sheet
	EN		Self-generated File
