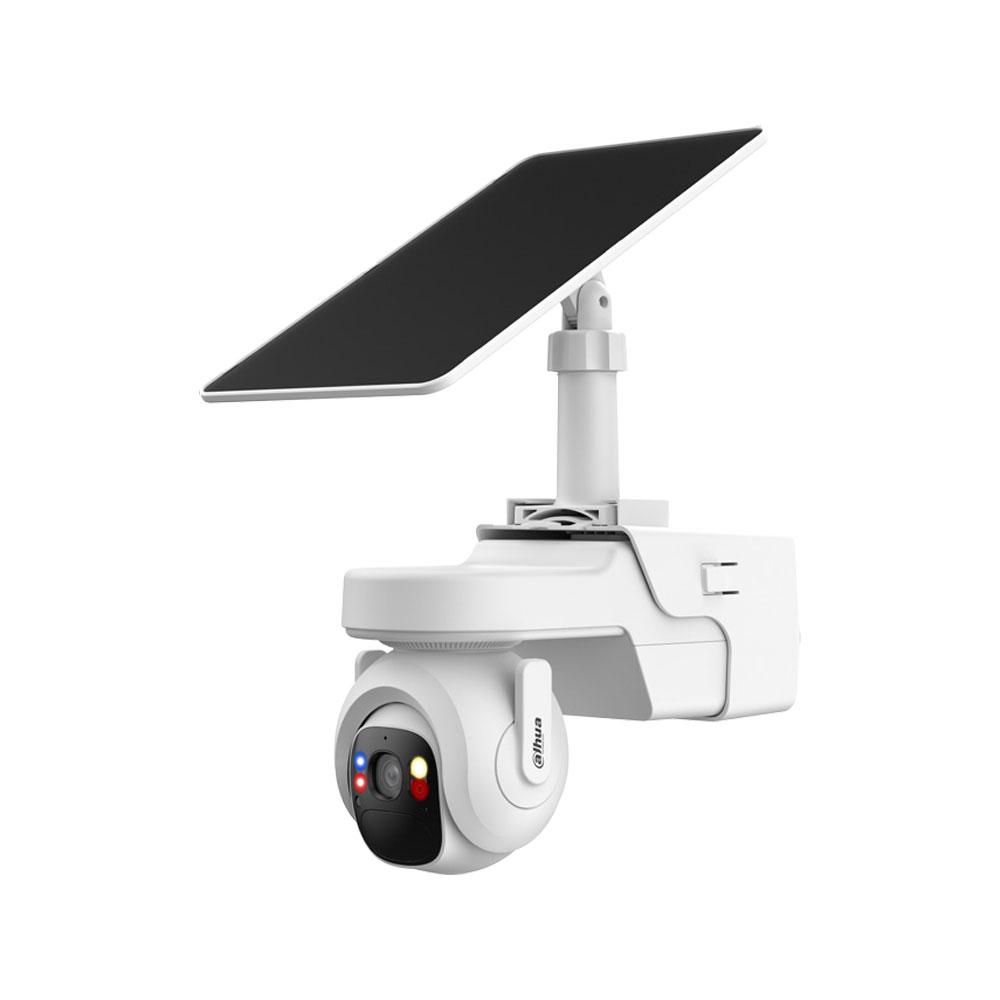

Dahua Pan/Tilt Solar IP Dome with 4G

Technical features

• Dahua Wireless Series 4G IP Dome PT Type
• 1/3" CMOS sensor with maximum resolution of 2560 × 1440 (4MP)
• IR illumination up to 30 m and warm light up to 20 m
• Illuminators: 1 IR, 1 white light, 1 pair of red and blue alarm lights
• Viewing angle: H 78.4°, V 42.4°, D 92.4°.
• Fixed lens 3.6 mm (F1.6)
• Auto ICR (Day/Night)
• WDR available
• PIR sensor with range up to 12m
• Mechanical movement: Pan 0°~360°, Tilt -60°~0°, Rotate 0°~360°

Video

• H.265 video compression
• Main stream: 2560 × 1440@(1-15 fps)
• Substream: 640 × 360@(1-15 ips)
• Bitrate: 32 kbps-4096 kbps
• Day/Night modes: Auto (ICR) / Color / B/W
• Motion detection: 4 configurable areas

Intelligent functions

• Accurate detection of people and vehicles with immediate warning
• AOV (Always-On Video) mode with 24/7 recording and low power consumption
• Deterrent sound and light alarm

Audio

• Built-in microphone and speaker
• Two-way audio
• G.711a compression

Network

• RJ45 port (10/100 Base-T)
• 4G LTE connectivity
• Bands (Europe, Middle East, Africa): FDD-LTE B1/B3/B5/B7/B8/B20/B28
• Supported software: DMSS, DSS Pro
• Mobile applications: iOS and Android

Power

• Built-in 68 Wh lithium battery
• 8W solar panel included
• Charging via USB Type-C
• Power consumption: ultra-save mode 0.04 W / AOV mode 0.197 W / performance mode 1.2 W

Environmental

• Operating temperature: -20 °C ~ +60 °C
• Humidity ≤ 95 % (RH), non-condensing
• IP66 protection

Physical characteristics

• Material: plastic
• Dimensions: 284 × 172 × 360 mm
• Net weight: 1.055 kg
• Outdoor installation

Contents

• 4G IP solar video surveillance system PT type DAHUA-5011 (DH-KIT/IPC-PT2449B1-4GB20/M0508)
• 8 W solar panel
• Mounting brackets and installation hardware
• Quick guide and legal documentation

Certifications

• CE-LVD: EN62368-1
• CE-EMC: Directive 2014/30/EU
• CE-RED: Directive 2014/53/EU
