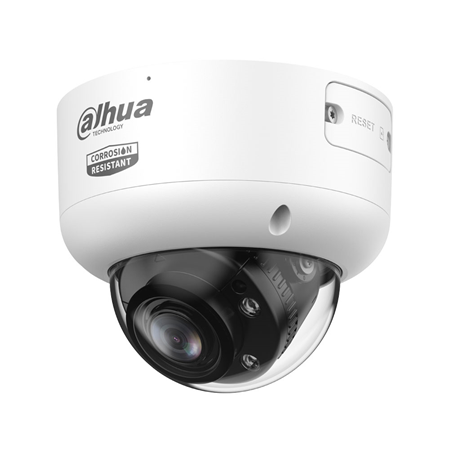

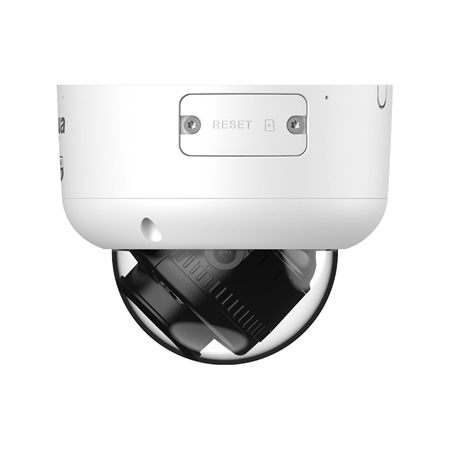

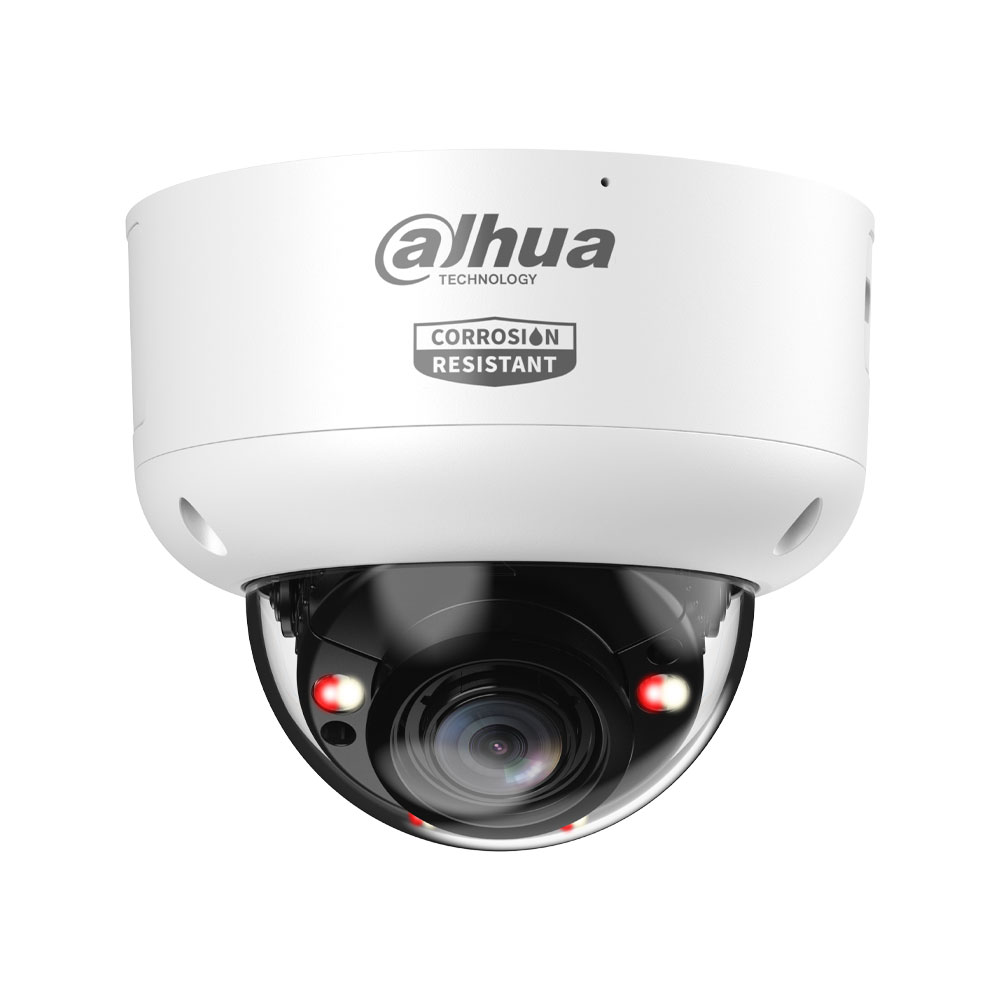

4MP Dahua WizMind 5 anti-corrosion IP dome with WizColor and active deterrence

Technical Features

• 1/1.8" CMOS sensor
• Maximum resolution of 4MP (2688 × 1520)
• Day/Night Auto(ICR), color and B/W mode
• Minimum illumination of 0.0003 lux@F1.2 in color, 30 IRE
• Minimum illumination of 0.0001 lux@F1.2 in B/W, 30 IRE
• 0 lux with illuminator activated
• Smart Dual Light with IR up to 60 m and warm light up to 50 m
• 4 multicore IR and warm light lights
• Automatic, manual and zoom-priority illuminator control
• Motorized lens 2.7-12 mm with Φ14 mount
• Maximum aperture F1.2
• Field of View H: 112°-48°; V: 58°-27°; D: 137°-55
• P-Iris auto iris
• Minimum focusing distance 0.2 m

Video Stream

• H.265, H.264, H.264H, H.264B and MJPEG video compression on substream
• AI H.265 and AI H.264 encoding
• Smart H.265+ and Smart H.264+
• 4-stream capacity
• Main stream: 4MP (2688 × 1520)@1-25/30 ips
• Substream: D1 (704 × 576)@1-25 fps or D1 (704 × 480)@1-30 fps
• Third stream: 1080P (1920 × 1080)@1-25/30 ips
• Fourth stream: 720P (1280 × 720)@1-25/30 ips
• Resolutions 4MP, 3MP, 1080P, 1.3M, 720P, D1, VGA and CIF
• VBR and CBR bit rate control
• H.264 bit rate from 3 kbps to 16384 kbps
• H.265 bit rate from 3 kbps to 16384 kbps

Functionalities

• BLC, HLC and 140 dB true WDR
• 3D NR noise reduction
• Automatic scene adaptation SSA
• Auto, natural, streetlight, outdoor, manual and custom regional white balance
• Automatic or manual gain control
• Motion detection with 4 rectangular areas
• RoI with 4 areas
• Electronic Image Stabilization EIS
• Intelligent illumination
• Smart Dual Light
• WizColor for color image in night scenes
• Defog
• 0°, 90°, 180° and 270° image rotation
• Mirror
• Privacy mask with 4 tiles or 8 color blocks
• LDC distortion correction
• Digital watermark

Intelligent functions

• Xinghan Vision large-scale AI models for object detection, recognition and scene adaptation
• IVS perimeter protection with intrusion, line crossing and fast motion with vehicle, animal and human classification
• Loitering, people gathering, parking and dwell detection
• Large-scale AI models for perimeter protection with target detection range extension
• Self-learning for false alarm filtering
• SMD 4.0
• AcuPick for live and recorded video search and location of people, animals and motor vehicles
• Face detection with capture, capture optimization, facial enhancement and facial exposure
• Extraction of 6 attributes and 8 facial expressions
• People counting by line crossing with daily, weekly, monthly and yearly reports
• Area people counting and queue management with daily, weekly and monthly reports
• Up to 4 rules for line crossing, area people counting and queue management
• Heat map
• Video metadata for motor vehicle, non-motor vehicle, face and human body
• Extraction of 6 motorized vehicle attributes and 6 non-motorized vehicle attributes
• Extraction of 6 face attributes and 8 human body attributes
• Intelligent search with Smart NVR for refined search, event extraction and merging into event videos

Active deterrence

• Illuminated warning with warm light
• Flicker or steady-on duration from 5 s to 30 s
• High, medium or low flashing frequency
• Acoustic warning with 11 sound alarms
• Import of up to 10 customized sound alarms
• Audible warning volume adjustable from 0 to 100
• Acoustic warning playback configurable from 1 to 10 times

Audio

• Integrated dual microphone
• Integrated loudspeaker
• Bidirectional audio
• 1 audio input via RCA port
• 1 audio output via RCA port
• G.711a, G.711Mu, PCM, G.726 and G.723 audio compression

Storage

• MicroSD card slot for up to 1 TB (card not included)
• FTP, SFTP and NAS storage

Alarms

• 1 alarm input compatible with wet contact up to 5 mA at 3-5 VDC and dry contact
• 1 dry contact alarm output up to 1000 mA at 30 VDC or 500 mA at 50 VAC
• Alarm events due to missing, full or SD card error
• Alarm events due to network disconnection, IP conflict and illegal access
• Motion detection and video tampering alarm events
• Alarm events for line crossing, intrusion, rapid movement, loitering and people gathering
• Parking, scene change, audio detection and voltage detection alarm events
• Alarm events for external alarm, face detection, video metadata, SMD and people counting
• Alarm events for area count, dwell, people number error, people in queue alarm, queue time alarm, security exception and defocusing

Communication interface

• 1 RS-485 interface with baud range 1200 bps to 115200 bps

Network

• 10/100 Enhancement Base-T RJ45 interface
• SDK and API
• Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P and Auto Registration
• ONVIF Profile S, Profile G, Profile T and Profile M support
• CGI support
• 20 users or hosts with total bandwidth of 80 M
• Supported browsers IE 11 and later, Chrome 102 and later, Firefox 88 and later
• DSS, DMSS and DoLynk Care management software
• Mobile client for iOS and Android
• Security with Digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509, syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade, session security and security warning

Power supply

• 12 VDC power supply with tolerance ±30%.
• PoE+ IEEE 802.3at
• ePoE
• 12 VDC power output with 165 mA maximum current and 700 mA peak current
• Dual power backup when adapter and PoE simultaneously power the device
• 4.1 W basic power consumption at 12 VDC
• 4.8 W basic power consumption with PoE
• 21.7 W maximum power consumption at 12 VDC with IR, WDR, intelligence, and active acoustic and light deterrence
• 23.9 W maximum power consumption at PoE with IR, WDR, intelligence, and active acoustic and light deterrence

Environmental

• Operating temperature -40°C to +60°C (-40°F to +60°F)
• Operating humidity ≤95% RH non-condensing
• Storage temperature -40 °C to +60 °C
• Storage humidity ≤95% RH non-condensing
• IP67 protection
• Vandal protection IK10

Corrosion protection

• Enhanced corrosion-proof aluminum alloy housing
• Corrosion protection C5-H / NEMA 4X
• Corrosion protection level Professional Protection
• Designed for environments with high humidity and salinity, such as harbors, islands, sea bridges, coastal buildings and areas exposed to sulfidation, nitridation or acid rain
• Reliable use in areas up to 2 km from the shore

Physical characteristics

• 3AXIS angle adjustment with pan from 0° to 355°, tilt from 0° to 80° and rotation from 0° to 355°.
• Ceiling, wall or pole installation with compatible accessories
• Metal housing
• Dimensions: 105 mm × Φ126 mm
• Net weight: 0.73 kg
• Gross weight: 0.94 kg

Contents

• Anti-corrosion IP dome with WizColor, active deterrent and Motorized lens DAHUA-5431 (DH-IPC-HDBW5459R1P-ZE-PV-2712-PRO-ATC)

Certifications and standards

• CE-LVD EN62368-1
• CE-EMC according to the Electromagnetic Compatibility Directive 2014/30/EU
• NEMA 4X
