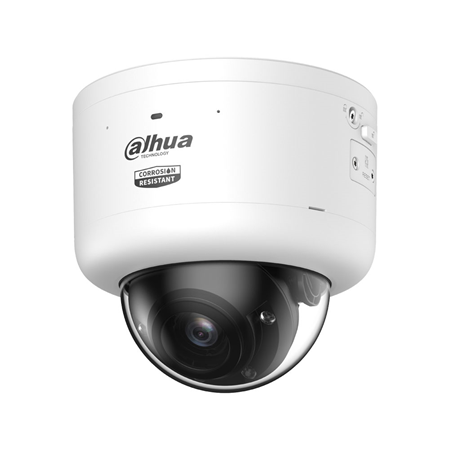

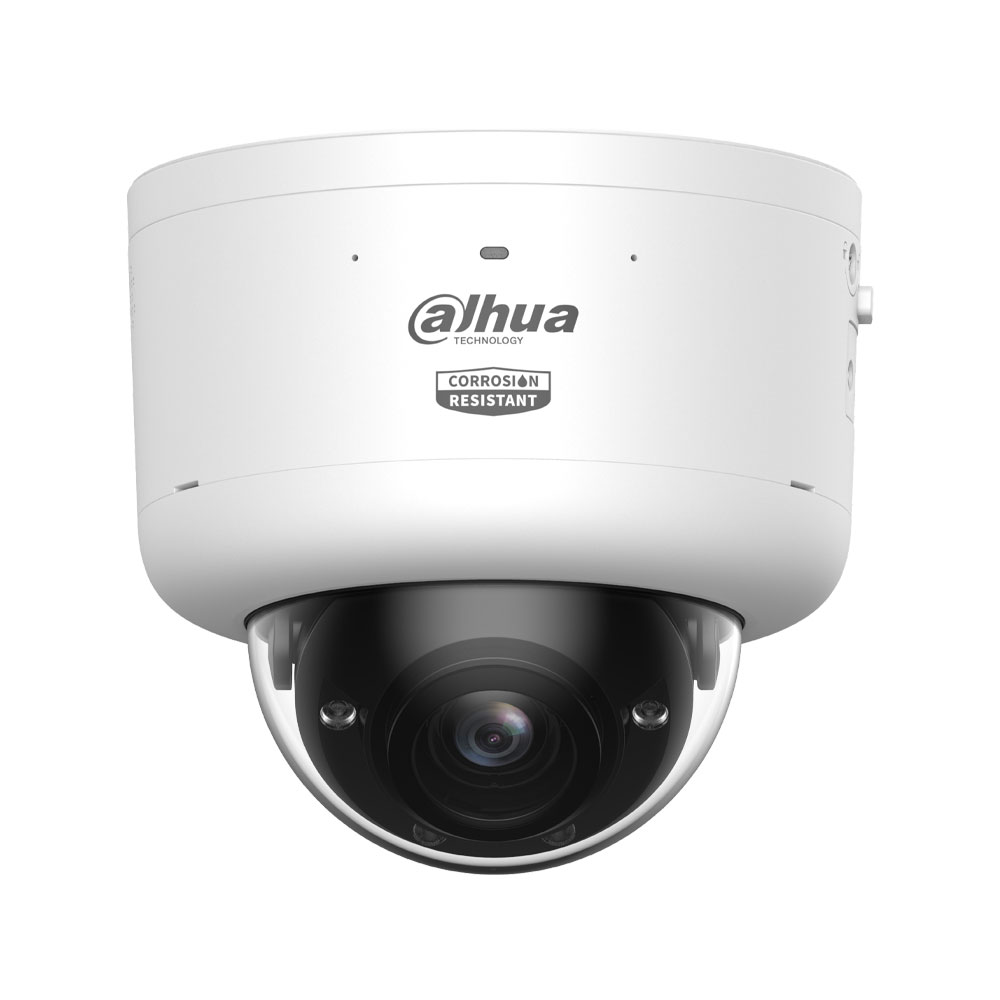

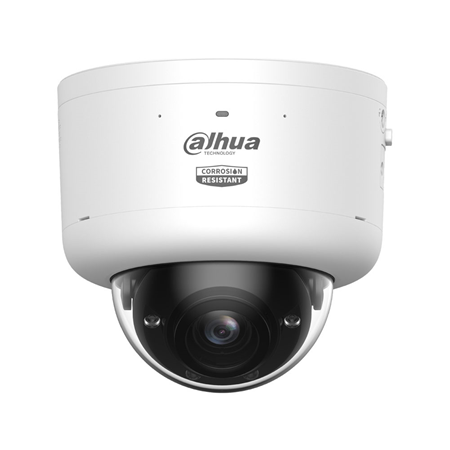

Domo IP Dahua WizMind 7 de 8MP anticorrosión con PTRZ, óptica motorizada 2,7-12 mm, Smart Dual Light, ANPR, WDR 140 dB e IP67

Technical Features

• 1/1.8" CMOS sensor
• Maximum resolution of 8MP (3840 × 2160)
• Day/Night Auto(ICR), color and B/W mode
• Minimum illumination of 0.0005 lux@F1.0 in color, 30 IRE
• Minimum illumination of 0.0001 lux@F1.0 in B/W, 30 IRE
• 0 lux with illuminator activated
• Smart Dual Light with IR up to 60 m and warm light up to 50 m
• 4 multicore IR lights and warm light
• Automatic and manual illuminator control
• Motorized lens 2.7-12 mm with Φ16 mount
• Maximum aperture F1.0
• Field of view H: 112°-48°; V: 58°-27°; D: 137°-56
• P-Iris auto iris
• Minimum focusing distance 0.2 m

Video Stream

• H.265, H.264, H.264H, H.264B and MJPEG video compression on substream
• AI H.265 and AI H.264 encoding
• Smart H.265+ and Smart H.264+
• 5-stream capacity
• Default mode: main stream 8MP (3840 × 2160)@1-25/30 ips
• Default mode: substream, third stream and fourth stream 1080P (1920 × 1080)@1-25/30 ips
• Default mode: fifth stream D1 (704 × 576)@1-25 ips or D1 (704 × 480)@1-30 ips
• High rate mode: main stream 8MP (3840 × 2160)@1-50/60 ips or 1080P (1920 × 1080)@1-100/120 ips
• High rate mode: substream 1080P (1920 × 1080)@1-25/30 fps
• Resolutions 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3M, 720P, D1 and CIF
• VBR, CBR and ABR bit rate control
• H.264 bit rate from 32 kbps to 10240 kbps
• H.265 bitrate from 12 kbps to 10240 kbps

Functionalities

• BLC, HLC and 140 dB true WDR
• 3D NR noise reduction
• Automatic scene adaptation SSA
• Auto, natural, streetlight, outdoor, manual and custom regional white balance
• Automatic gain control
• Motion detection with 4 rectangular areas
• RoI with 4 areas
• GIS gyro image stabilization
• G-sensor for image stabilization and tamper detection
• Intelligent illumination
• Smart Dual Light
• AI-ISP for scene adaptation and image enhancement
• Xinghan precise focusing
• Defog
• Window heating for fast removal of water, ice, snow and mist
• 0°, 90°, 180° and 270° image rotation
• Mirror
• Privacy mask with 4 mosaics and 8 color blocks
• Privacy protection with mosaic or frosted effect for faces, human bodies and vehicles
• LDC distortion correction
• Operating status indicators for installation and start-up
• Power detection with daily and weekly reports

Intelligent functions

• Large-scale Xinghan Vision AI models for target detection, recognition and scene adaptation
• Enables simultaneous activation of two compatible intelligent functions
• Intelligent IVS event for abandoned object and lost object
• IVS perimeter protection with intrusion, line crossing and fast movement with vehicle, animal and human classification
• Loitering, people gathering, parking, dwell, abandoned object and lost object detection
• Large-scale AI models for perimeter protection with target detection range extension
• Self-learning for false alarm filtering
• AcuPick for live and recorded video search and location of people, animals and motorized vehicles
• Face detection with tracking, capture, capture optimization, face enhancement and face exposure
• Face recognition with general mode and counting mode
• Up to 5 facial databases and up to 200000 facial images
• PPE/PPE detection for attributes such as helmets, caps, uniforms, masks, gloves, shoe covers, footwear, safety vests, belts, goggles and aprons
• Cross-line people counting and area people counting with daily, monthly and yearly reports
• Queue management with daily and monthly reports
• Up to 4 rules for line crossing, area people counting and queue management
• Heat map
• ANPR with tracking, priority and capture
• License plate recognition of vehicles in motion up to 60 km/h
• Up to 10000 records in blocked list and 10000 records in allowed list for ANPR
• Parking space management for outdoor and planned parking lots
• Video metadata for motorized vehicles, non-motorized vehicles, face and human body
• Flow statistics of people, motorized vehicles and non-motorized vehicles by address
• Intelligent search

Positioner

• Motorized PTRZ adjustment for easy installation and configuration

Active deterrence

• Illuminated warning
• Audible warning
• Sound and flashing light activation when an alarm occurs

Audio

• Integrated dual microphone
• Adaptive noise cancellation by Dahua algorithms
• Sound pickup up to 30m
• Built-in large-diameter Hi-Fi speaker
• Acoustic coverage up to 30 m indoors
• Two-way audio
• 1 audio input via RCA port
• 1 audio output via RCA port
• G.711a, G.711Mu, PCM, G.726 and G.723 audio compression

Storage

• MicroSD card slot for up to 1 TB (card not included)
• FTP, SFTP and NAS storage

Alarms

• 3 alarm inputs compatible with wet contact up to 5 mA at 3-5 VDC and dry contact
• 2 alarm outputs with dry contact up to 1000 mA at 30 VDC or 500 mA at 50 VAC
• Alarm events for missing, full, error, or SD card durability warning
• Alarm events due to network disconnection, IP conflict, illegal access, motion detection and video tampering
• Alarm events for line crossing, intrusion, fast motion, abandoned object, lost object, loitering, people gathering and parking
• Alarm events for scene change, audio detection, out-of-focus, external alarm, face detection, face recognition, video metadata, ANPR, counting, parking space management and EPI/PPE detection

Communication interface

• 1 RS-485 interface with baud range from 1200 bps to 115200 bps
• 1 analog BNC CVBS output

Network

• 10/100/1000 Base-T RJ45 interface
• SDK and API
• Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, DoLynk Cloud and Auto Registration
• ONVIF Profile S, Profile G, Profile T and Profile M support
• CGI support
• 20 users or hosts with 340M total bandwidth
• Supported browsers IE 11 and later, Chrome 100 and later, Firefox 47.0.2 and later
• SmartPSS Lite, DSS and DMSS management software
• Mobile client for iOS and Android
• Security with Digest, WSSE, account lock, security logs, IP/MAC filtering, X.509, syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade, session security, security warning, AES 256, TPM 2.0 FIPS 140-2 level 2 and SSL/TLS 1.3

Power supply

• 12 VDC power supply with tolerance ±30%.
• 24 VAC power supply with tolerance ±30%.
• PoE+ IEEE 802.3at
• ePoE
• 12 VDC power output with maximum current of 165 mA and peak current of 700 mA
• Dual power backup when adapter and PoE simultaneously power the device
• 7.5 W basic power consumption at 12 VDC
• 8.87 W basic power consumption at 24 VAC
• 9.48 W basic power consumption with PoE
• Maximum consumption 19 W at 12 VDC
• 22.5 W max. consumption at 24 VAC
• 23.8 W maximum power consumption with PoE
• 2 W heating power consumption at 12 VDC
• 2.4 W heating power consumption at 24 VAC
• 2.6 W heating consumption with PoE

Environmental

• Operating temperature -40°C to +65°C (-40°F to +65°F)
• Operating humidity ≤95% RH non-condensing
• Storage temperature -40 °C to +65 °C (-40 °C to +65 °C)
• Storage humidity 10% to 95% RH non-condensing
• IP67 protection
• Vandal protection IK10

Corrosion protection

• Enhanced corrosion resistant aluminum alloy housing
• C5-H / NEMA 4X corrosion protection
• Corrosion protection level Professional Protection
• Designed for environments with high humidity and salinity, such as harbors, islands, sea bridges, coastal buildings and areas exposed to sulfidation, nitridation or acid rain
• Reliable use in areas up to 2 km from the shore

Physical characteristics

• 3AXIS angle adjustment with pan from 0° to 355°, tilt from 0° to 80° and rotation from 0° to 355°.
• Ceiling, wall or pole installation with compatible accessories
• Metal housing
• Dimensions: 150 mm × Φ159 mm
• Net weight: 1.4 kg
• Gross weight: 1.9 kg

Contents

• Anti-corrosion IP dome with PTRZ, active deterrent and Motorized lens DAHUA-5443 (DH-IPC-HDBW7859ZP-Z-PV-2712-X-ATC)

Certifications and standards

• CE-LVD EN62368-1
• CE-EMC according to the Electromagnetic Compatibility Directive 2014/30/EU
• UL 50E NEMA Type 4X
