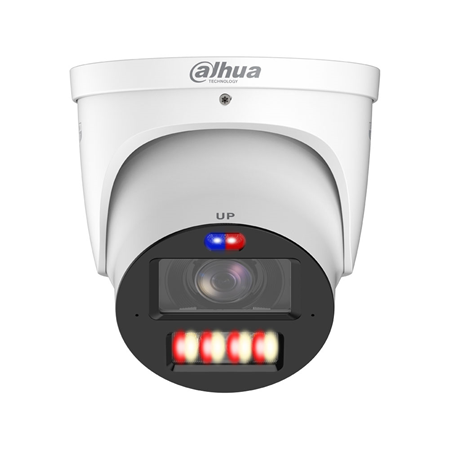

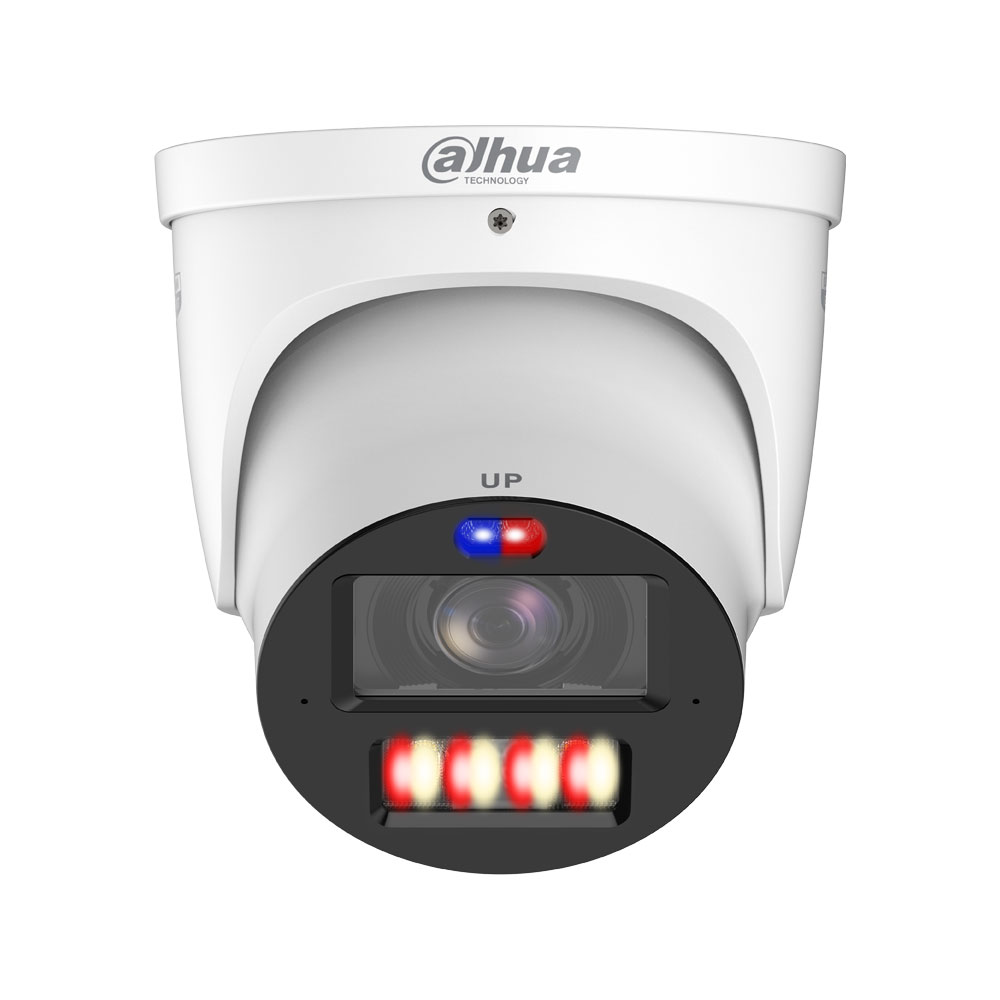

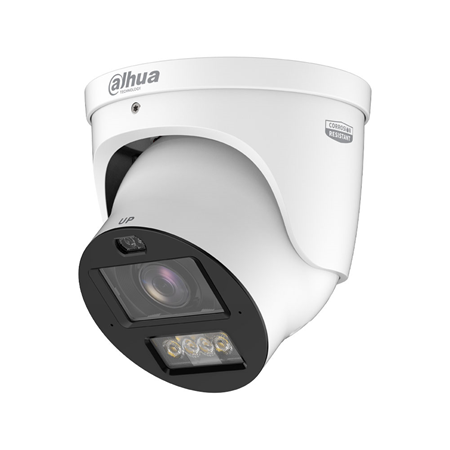

4MP Dahua WizSense 3 anti-corrosion IP dome with WizColor and TiOC PRO

Technical Features

• 1/1.8" CMOS sensor
• Maximum resolution of 4MP (2688 × 1520)
• Day/Night Auto(ICR), color and B/W mode
• Minimum illumination of 0.0003 lux@F1.2 in color, 30 IRE
• Minimum illumination of 0.0001 lux@F1.2 in B/W, 30 IRE
• 0 lux with illuminator activated
• Smart Dual Light with IR up to 50m and warm light up to 50m
• 4 multicore IR and warm light lights
• Automatic, manual and zoom-priority illuminator control
• Motorized lens 2.7-12 mm with Φ16 mount
• Maximum aperture F1.2
• Field of view H: 114°-48°; V: 59°-27°; D: 143°-56
• Fixed iris
• Minimum focusing distance of 1.75 m

Video stream

• H.265, H.264, H.264H, H.264B and MJPEG video compression on substream
• AI H.265 and AI H.264 encoding
• Smart H.265+ and Smart H.264+
• 3-stream capacity
• Main stream: 4MP (2688 × 1520)@1-25/30 ips
• Substream: 1080P (1920 × 1080)@1-25/30 fps
• Third stream: 1080P (1920 × 1080)@1-25/30 ips
• Resolutions 4MP, 3MP, 1080P, 720P, D1, VGA and CIF
• VBR, CBR and ABR bitrate control
• H.264 bit rate from 3 kbps to 16384 kbps
• H.265 bitrate from 3 kbps to 16384 kbps

Functionalities

• BLC, HLC and 120 dB True WDR
• 3D NR noise reduction
• AI SSA automatic scene adaptation
• Auto, natural, streetlight, outdoor, manual and custom regional white balance
• Automatic or manual gain control
• Motion detection with 4 rectangular areas
• RoI with 4 areas
• Electronic Image Stabilization EIS
• Intelligent illumination
• Smart Dual Light
• WizColor for color image in night scenes
• Defog
• 0°, 90°, 180° and 270° image rotation
• Mirror
• Privacy mask with 8 areas
• Digital watermark
• One-touch arming and disarming

Intelligent functions

• Xinghan Vision large-scale AI models
• IVS perimeter protection with intrusion and line crossing with vehicle and human classification
• Prowling and loitering detection
• SMD 4.0
• AcuPick for searching and locating people, animals and motorized vehicles in live and recorded video
• AI SSA for adjustment of image parameters according to scene conditions
• Full-image face detection with capture, capture optimization, face enhancement and optimal face capture loading
• Smart search with Smart NVR for refined search, event extraction and merging into event videos

Active deterrence

• Active deterrence with siren and light
• Illuminated warning with red and blue lights
• Voice alert when a perimeter event occurs
• Integrated voices for selection
• Supports custom voice import

Audio

• Integrated dual microphone
• Integrated speakerphone
• Two-way audio
• 1 audio input via RCA port
• 1 audio output via RCA port
• PCM, G.711a, G.711Mu, G.726 and G.723 audio compression

Storage

• MicroSD card slot up to 512 GB (card not included)
• FTP, SFTP and NAS storage

Alarms

• 1 alarm input compatible with wet contact up to 5 mA at 3-5 VDC and dry contact
• 1 dry contact alarm output up to 1000 mA at 30 VDC or 500 mA at 50 VAC
• Alarm events due to missing, full or SD card error
• Alarm events due to network disconnection, IP conflict and illegal access
• Alarm events for motion detection, video tampering, line crossing, intrusion, stay and loiter alarm events
• Full-frame face detection, scene change, audio detection, voltage detection, defocus, external alarm, SMD and security exception alarm events

Network

• RJ45 10/100/1000 Base-T RJ45 interface
• SDK and API
• Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Bonjour and Auto Registration
• ONVIF Profile S, Profile G, Profile T and Profile M support
• CGI support
• 20 users or hosts with 64M total bandwidth
• Supported browsers IE 11, Chrome and Firefox
• Smart PSS Lite, DSS, DMSS, DMSS and DoLynk Care management software
• Mobile client for iOS and Android
• Security with Digest, WSSE, account lockout, security logs, IP/MAC filtering, X.509, syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade, session security and security warning

Power supply

• 12 VDC power supply with tolerance ±30%.
• PoE+ IEEE 802.3at
• Dual power backup when adapter and PoE simultaneously power the device
• Basic power consumption of 3.3 W at 12 VDC
• 4.5 W basic power consumption with PoE
• 10.7W maximum power consumption at 12VDC with H.265, WDR, warm light, active deterrence and intelligence on
• 12.8 W maximum power consumption at PoE with H.265, WDR, warm light, active deterrence and intelligence on

Environmental

• Operating temperature -30°C to +60°C (-30°F to +60°F)
• Operating humidity ≤95% RH non-condensing
• Storage Temperature -40 °C to +60 °C
• Storage humidity ≤95% RH non-condensing
• IP67 protection

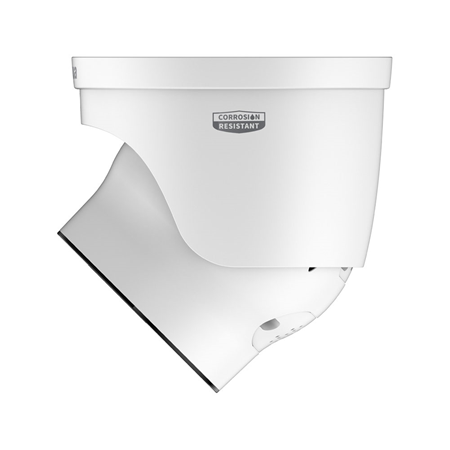

Corrosion protection

• Enhanced corrosion-resistant aluminum alloy housing
• Corrosion protection C5-H / NEMA 4X
• Corrosion protection level Professional Protection
• Designed for environments with high humidity and salinity, such as harbors, islands, sea bridges, coastal buildings and areas exposed to sulfidation, nitridation or acid rain
• Reliable use in areas up to 2 km from the shore

Physical characteristics

• 3AXIS angle adjustment with 0° to 360° pan, 0° to 78° tilt and 0° to 360° rotation
• Ceiling, wall or pole installation with compatible accessories
• Metal housing
• Dimensions: 127.6 mm × Φ122 mm
• Net weight: 0.94 kg
• Gross weight: 1.17 kg

Contents

• Anti-corrosion IP dome with WizColor, TiOC PRO, active deterrence and Motorized lens DAHUA-5447 (DH-IPC-HDW3449HP-ZAS-PV-2712-PRO-ATC)

Certifications and standards

• CE-LVD EN 62368-1
• CE-EMC according to the Electromagnetic Compatibility Directive 2014/30/EU
• NEMA 4X
