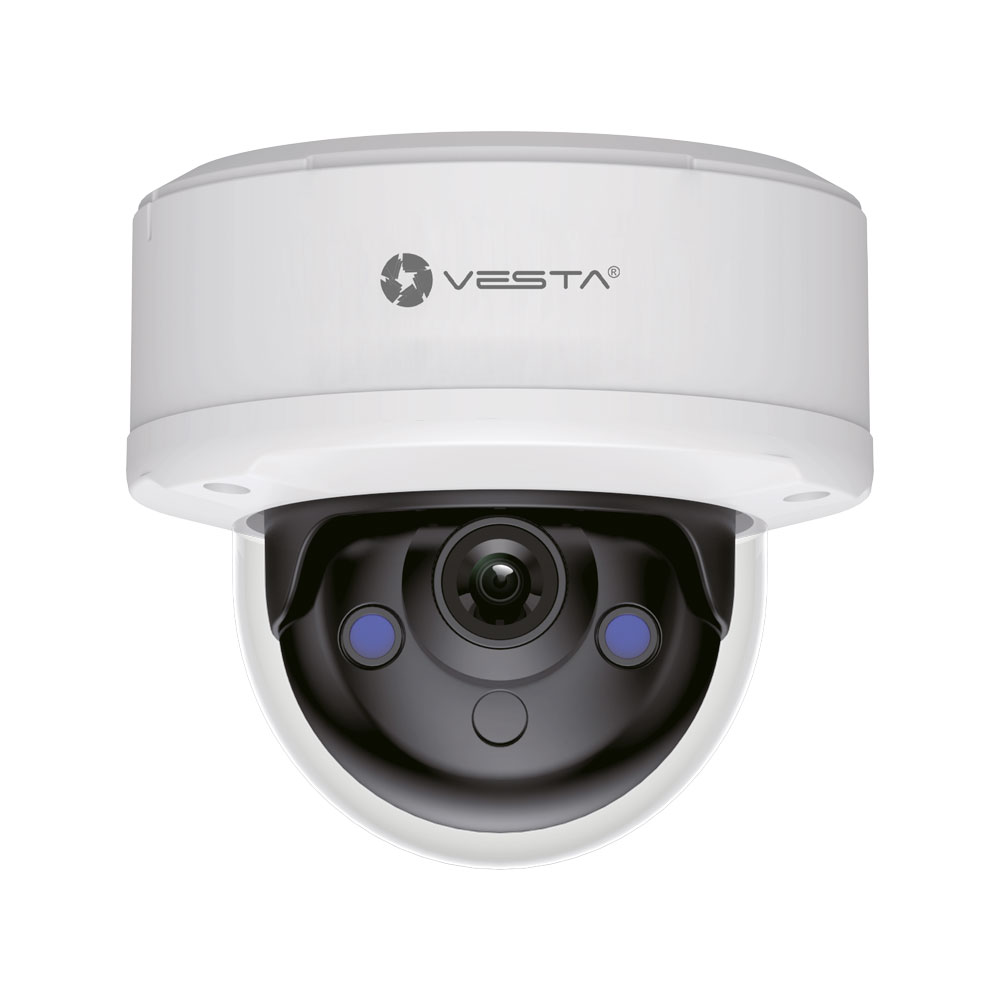

IPC-D14-E | 4MP Dual Light Eco IP Dome for outdoor applications
IPC-D14-EIPC-D14-E4MP Dual Light Eco IP Dome for outdoor applications
Volver a Network Cameras
Products
CCTV
Network Cameras
Mini-Dome
IPC-D14-E
IPC-D14-E
IPC-D14-E_B

4MP Dual Light Eco IP Dome for outdoor applications

IPC-D14-E

IPC-D14-E

View previous model
Domo IP 4MP de exterior HIK-737

Main features

  • Vesta Advanced Video IP Dome
  • 4MP@20/25ips, H.265
  • 0.01 lux, Smart Dual Light 30m
  • Fixed lens 2.8 mm
  • Digital WDR, 3D-NR
  • Built-in microphone
  • SD slot, reset button
  • RJ45, Onvif, IP67, IK10, PoE.

Specifications

  • 4 megapixel 1/2.8" CMOS sensor
  • H.265, H.264 video formats
  • Up to 4MP resolution
  • Stream 1: 4MP (1~20/25 fps)
  • Stream 2: D1 (1~25/30 fps)
  • Day/Night mode
  • Smart Dual LightDay/night mode: IR light (30 meters) + white light (30 meters)
  • 0.01 lux F2.0
  • Fixed lens 2.8 mm with a maximum F2.0 aperture.
  • Image modes: BLC, digital WDR, 3D-NR, Mirror.
  • White balance
  • Automatic and manual gain control
  • 4-Zone video sensor and 4-Zone privacy mask
  • Built-in microphone
  • MicroSD card slot up to 256GB (not included)
  • Reset button
  • Network interface: RJ45 (10/100 Base-T)
  • Network protocols: TCP/IP, UDP, HTTP, DHCP, DDNS, FTP, UPNP
  • Onvif, CGI, P2P, SDK and API support
  • Compatible with IE8 and later browsers
  • Management software
  • Compatible with IOS and Android mobile devices
  • Power supply: 12V DC (±30%) / PoE (802.3af)
  • Maximum power consumption: 3 W
  • Storage temperature from -30°C ~ +60°C
  • Operating temperature from -20°C ~ +60°C
  • Operating relative humidity <95%.
  • IP67 degree of protection
  • Vandal protection IK10
  • Metal housing
  • Dimensions: Ø113 x 82 mm
  • Net weight: 420 g
REFERENCE / MODEL IPC-D14-E / IPC-D14-E
Resolution 4MP
Series Vesta Advanced Video
Audio Microphone
IR Distance 21-40m
Ingress protection IP67
Lens 2.8 mm
Special Protection Vandal-proof (IK10)
Sensor 1/2.8" CMOS
StarLight No
WDR (Backlight) D-WDR
Codec H.264 || H.265
PoE PoE
SD Slot Yes
Colour White
Certificate NDAA
Installation environment Outdoor
Material Metal
Alarm channels No
Connectivity IP || YES (P2P)
Intelligent functions No
Compatibility Onvif
