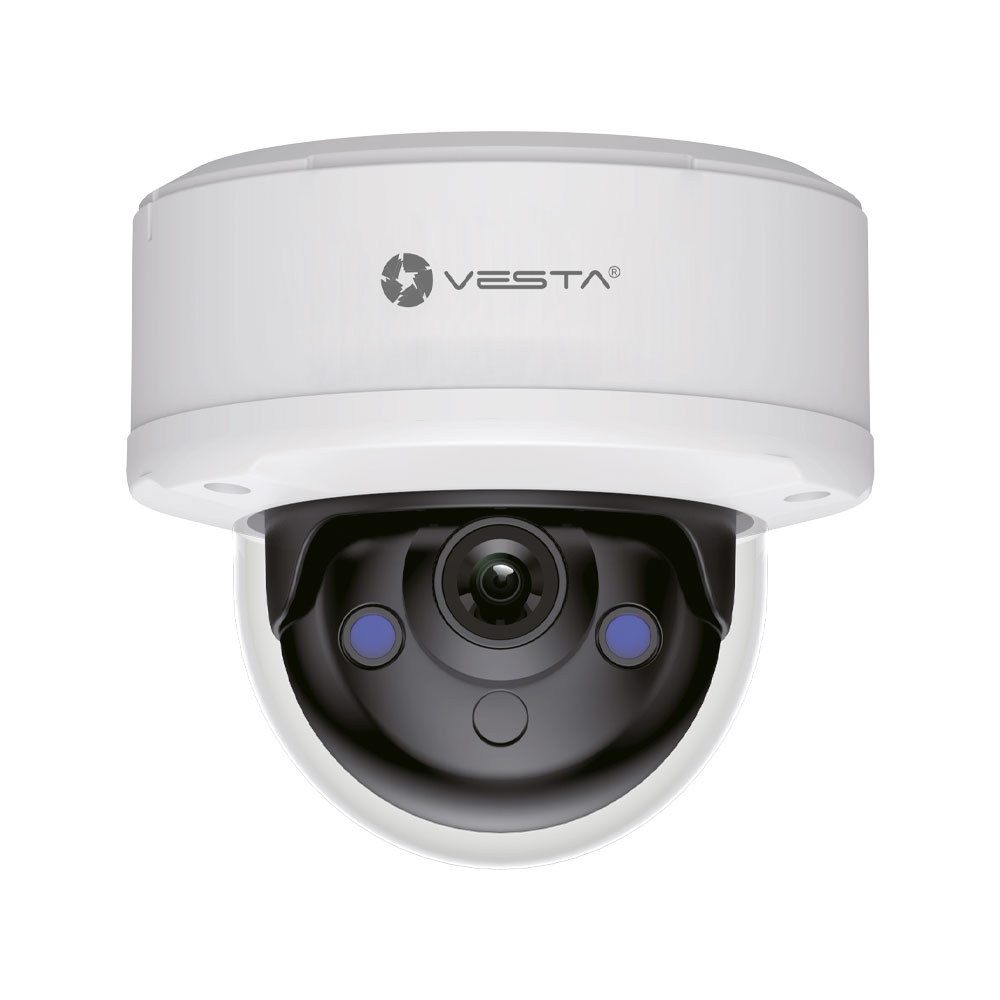

IPC-D24-L | 4MP IP Smart Dual Light Lite AI anti-vandal outdoor dome
IPC-D24-LIPC-D24-L4MP IP Smart Dual Light Lite AI anti-vandal outdoor dome
IPC-D24-L
IPC-D24-L_B

4MP IP Smart Dual Light Lite AI anti-vandal outdoor dome

IPC-D24-L

IPC-D24-L

Main features

  • Vesta Advanced Video IP Dome
  • 4MP@25/30ips, H.265+
  • 0.006 lux, Smart Dual Light 30m
  • Fixed lens 2.8 mm
  • Digital WDR, 3D-NR
  • Perimeter protection and intelligent motion detection
  • Built-in microphone
  • MicroSD slot, reset button
  • RJ45, Onvif, IP67, IK10, PoE.

Specifications

  • 4 megapixel 1/2.8" CMOS sensor
  • H.265+, H.264+, H.265, H.264 video formats
  • Up to 4MP resolution
  • Stream 1: 4MP (1~25/30 fps)
  • Stream 2: D1 (1~25/30 fps)
  • Stream 3: 720P (1~25/30 ips)
  • Day/Night Mode
  • Smart Dual LightIR light (30 meters) + white light (30 meters)
  • 0.006 lux, 0 lux with activated illumination
  • Fixed lens 2.8 mm lens with F1.6 maximum aperture.
  • Imaging modes: BLC, HLC, digital WDR, 3D-NR, Mirror.
  • White balance
  • Automatic and manual gain control
  • 4-Zone video sensor and 4-Zone privacy mask
  • Perimeter protection with line crossing detection and intrusion detection (supports person/vehicle classification)
  • Intelligent motion detection
  • Built-in microphone
  • MicroSD card slot up to 256 GB (card not included)
  • Reset button
  • Network interface: RJ45 (10/100 Base-T)
  • Network protocols: TCP/IP, UDP, HTTP, DHCP, DDNS, FTP, UPNP
  • Onvif, CGI, P2P, SDK and API support
  • Compatible with IE8 and later browsers
  • Management software
  • Compatible with IOS and Android mobile devices
  • Power supply: 12V DC / PoE (802.3af)
  • Maximum power consumption: 3W
  • Storage temperature from -40°C ~ +60°C
  • Operating temperature from -30°C ~ +60°C
  • Operating relative humidity <95%.
  • IP67 degree of protection
  • Vandal protection IK10
  • Metal housing
  • Dimensions: Ø123 x 82 mm
  • Net weight: 420 g
REFERENCE / MODEL IPC-D24-L / IPC-D24-L
Resolution 4MP
Series Vesta Advanced Video
Audio Microphone
IR Distance 21-40m
Ingress protection IP67
Lens 2.8 mm
Special Protection Vandal-proof (IK10)
Sensor 1/2.8" CMOS
StarLight StarLight
WDR (Backlight) D-WDR
Codec H.264 || H.264+ || H.265 || H.265+
PoE PoE
SD Slot Yes
Colour White
Certificate NDAA
Installation environment Outdoor
Material Metal
Alarm channels No
Connectivity IP || YES (P2P)
Intelligent functions Perimeter protection || SMD
Compatibility Onvif

Documentation

Language Name Type Action
EN
Manual
ES
Manual
FR
Manual
IT
Manual
EN
Self-generated File
