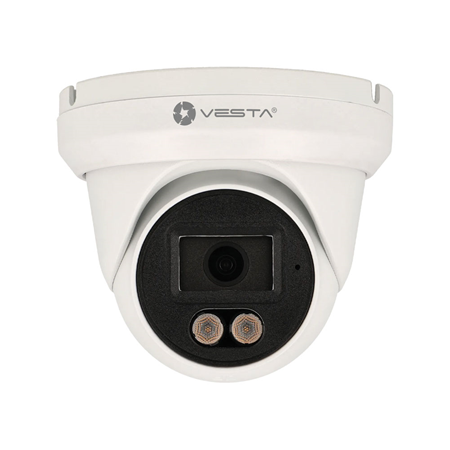

IPC-T28-L | 8MP Smart Dual Light Entry AI IP dome for outdoor use
IPC-T28-LIPC-T28-L8MP Smart Dual Light Entry AI IP dome for outdoor use
Volver a Network Cameras
Products
CCTV
Network Cameras
Mini-Dome
IPC-T28-L
IPC-T28-L
IPC-T28-L_B

8MP Smart Dual Light Entry AI IP dome for outdoor use

IPC-T28-L

IPC-T28-L

Main features

  • Vesta Advanced Video IP Dome
  • 8MP@20ips, H.265+
  • 0.007/0.0007 lux, Smart Dual Light 30m
  • Fixed lens 2.8 mm
  • Digital WDR, 3D-NR
  • Perimeter protection and intelligent motion detection
  • Built-in microphone
  • SD slot, reset button
  • RJ45, Onvif, IP67, PoE.

Specifications

  • 8-megapixel 1/2.8" CMOS sensor
  • H.265+, H.264+, H.265, H.264 video formats
  • Up to 8MP resolution
  • Stream 1: 8MP (1~20 fps)
  • Stream 2: D1 (1~25/30 fps)
  • Stream 3: 720P (1~25/30 fps)
  • Day/Night Mode
  • Smart Dual Light1 IR led (30 meters) + 1 warm light led (30 meters)
  • 0.007 lux (color), 0.0007 lux (B/W), 0 lux with activated illumination
  • Fixed lens 2.8 mm
  • Viewing angle: 107° (H), 56° (V), 127° (D).
  • Imaging modes: BLC, HLC, digital WDR, 3D-NR, Mirror.
  • White balance
  • Automatic and manual gain control
  • 4-Zone video sensor and 4-Zone privacy mask
  • Perimeter protection with cross-line detection and intrusion detection (supports person/vehicle classification)
  • Intelligent motion detection
  • Built-in microphone
  • Network interface: RJ45 (10/100 Base-T)
  • MicroSD card slot up to 256GB (not included)
  • Reset button
  • Network protocols: TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPOE, UPNP, SMTP
  • Onvif, CGI, P2P, SDK and API support
  • Compatible with IE8 and later, Chrome, Firefox browsers
  • Management software
  • Compatible with IOS and Android mobile devices
  • Power supply: 12V DC (±30%) / PoE (802.3af)
  • Power consumption: 2.1 W (basic), 4.2 W (maximum)
  • Storage temperature: -40°C ~ +60°C (-40°C ~ +60°C)
  • Operating temperature -30°C ~ +60°C (-30°C ~ +60°C)
  • Operating relative humidity <95%.
  • IP67 degree of protection
  • Metal inner core and plastic housing.
  • Dimensions: Ø110 x 97 mm
  • Net weight: 430 g
REFERENCE / MODEL IPC-T28-L / IPC-T28-L
Resolution 8MP
Series Vesta Advanced Video
Audio Microphone
IR Distance 21-40m
Ingress protection IP67
Lens 2.8 mm
Special Protection No
Sensor 1/2.8" CMOS
StarLight StarLight
WDR (Backlight) D-WDR
Codec H.264 || H.265
PoE PoE
SD Slot Yes
Colour White
Certificate NDAA
Installation environment Outdoor
Material Metal || Plastic
Alarm channels No
Connectivity IP || YES (P2P)
Intelligent functions Perimeter protection || SMD
Compatibility Onvif

Documentation

Language Name Type Action
EN
Manual
ES
Manual
FR
Manual
IT
Manual
EN
Self-generated File
