dahua

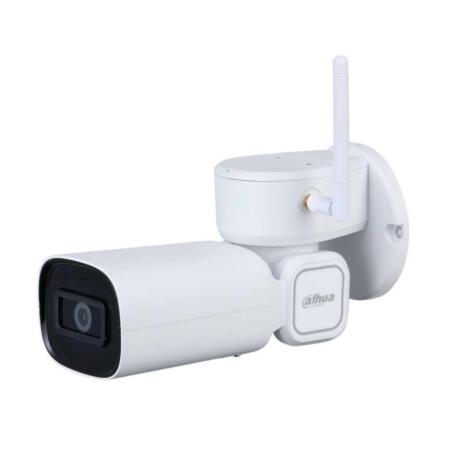

DAHUA-2034-RE | StarLight WiFi IP Dahua starlight camera with positioner of 6°/sec
DAHUA-2034-REPTZ1C203UE-GN-WStarLight WiFi IP Dahua starlight camera with positioner of 6°/sec

StarLight WiFi IP Dahua starlight camera with positioner of 6°/sec

DAHUA-2034-RE

PTZ1C203UE-GN-W

Main features

  • StarLight WiFi IP Dahua starlight camera with positioner of 6°/sec. with IR of 20 m for outdoors
  • H.265+/ H.265/ H.264+/ H.264/ MJPEG
  • 1/2,8” Sony® STARVIS™ CMOS, 2 MP
  • Stream triple
  • 2MP@25fps
  • 2,7 ~ 8,1 mm motor lens (46,43°~106,79°)
  • 16X digital zoom
  • ICR filter
  • 0,005/0,0005 lux
  • OSD, AWB, AGC, BLC, HLC, WDR real (120dB), 2D/3D-NR, defog digital, EIS
  • IVS
  • Audio: 1 in / 1 out
  • MicroSD slot
  • Onvif, CGI
  • IP66
  • Lightning-proof 4KV
  • 12V DC.

Specifications

DAHUA

WiFi    StarLight   H.265   Onvif   2MP



Features

  • 1/2,8” Sony® STARVIS™ CMOS sensor, 2 MP
  • 3X optical zoom
  • StarLight technology
  • 1080P (1920x1080) at 25 fps
  • H.265
  • WDR 120dB, day/night with ICR filter, 2D/3D-DNR
  • IR range up to 20 meters
  • IVS
  • WiFi supported
  • IP66



Specs

  • 1/2,8” Sony® STARVIS™ CMOS sensor, 2MP
  • H.265+ / H.265 / H.264+ / H.264 / MJPEG
  • Digital: 1080P (1920x1080), 1,3MP (1280x960), 720P (1280x720), D1 (704x576), CIF (352x288)
  • Stream 1: 1080P, 1,3MP, 720P (1~25 fps)
  • Stream 2: D1, CIF (1~25 fps)
  • Stream 3: 720P, D1, CIF (1~25 fps)
  • Day/night mode with removable mechanical filter
  • IR illumination: 1 led, 20 meters
  • Minimum illumination: 0,005 lux F1.8 (color) / 0,0005 lux F1.8 (B/W), 0 lux IR On
  • Optical zoom: 2,7 ~ 8,1 mm
  • Viewing angle: 46,43°~106,79°(H), 25,91°~57,88°(V)
  • Focus control: auto, semiautomatic and manual
  • 16X digital zoom
  • White balance: Auto, Indoor, Outdoor, monitoring, Manual, sodium lamp, natural light, Light
  • Gain control: auto and manual
  • Backlight compensation (BLC, HLC)
  • WDR true (120 dB)
  • 2D and 3D
  • Digital defog
  • EIS
  • ROI supported
  • Motion detection supported
  • IVS: Tripwire, intrusion, abandoned/lost objects
  • Advanced intelligent: facial detection, heat map
  • Horizontal positioner: 0° ~ 180° continuous
  • Vertical positioner: -5° ~ -55°
  • Manual speed: 6°/sec. (H), 3°/sec. (V)
  • Audio: 1 in / 1 out
  • MicroSD card slot up to 256GB (card not included)
  • Network interface: RJ45 (10/100 Base-T)
  • Network protocols: IPv4, IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, SNMPv1/v2c/v3(MIB-2), ARP, RTCP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Compatible with ONVIF, CGI
  • Unicast / Multicast streaming method
  • Up to 20 users
  • Remote display with , Chrome42, Firefox52, Safari
  • Software management Smart Player, Configtool, Smart PSS, DMSS, DSS
  • Power supply: 12V DC /1,5A (7W, 11W with IR ON)
  • Standard supported WiFi IEEE802.11b/g/n
  • Working temperature -30°C ~ +60°C
  • RH: <95%
  • IP66
  • Lightning-proof 4KV
  • ADC12 aluminum case
  • Dimensions: Ø90 (W) x 102,7 (Al) x 195,3 mm
  • Weight: 900 g
REFERENCE / MODEL DAHUA-2034-RE / PTZ1C203UE-GN-W
Resolution 2MP
IR Distance 10-20m
Ingress protection IP66
Lens 2~4X optical zoom
Special Protection No
Sensor 1/3" Sony CMOS
StarLight StarLight
WDR (Backlight) WDR (120dB)
Codec H.265+
PoE PoE
SD Slot Yes
Colour White
Connectivity WiFi
Intelligent functions Perimeter protection
