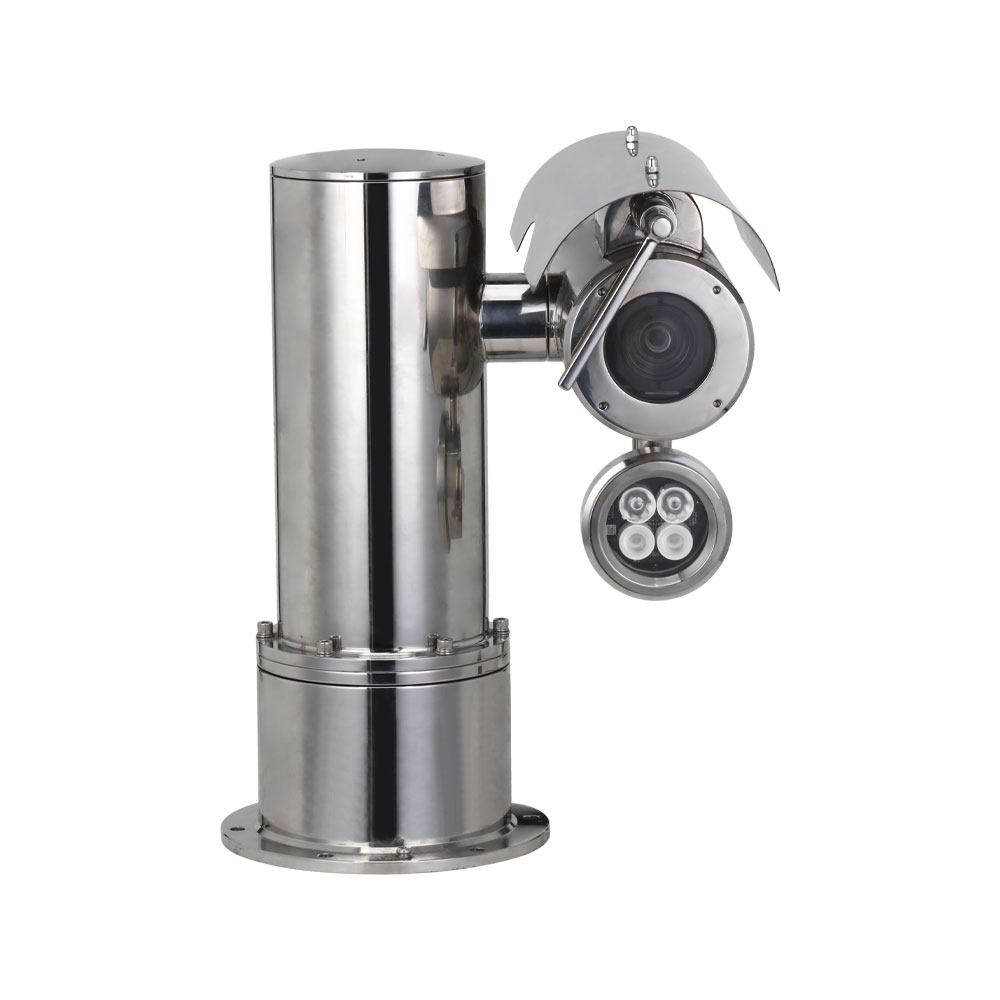

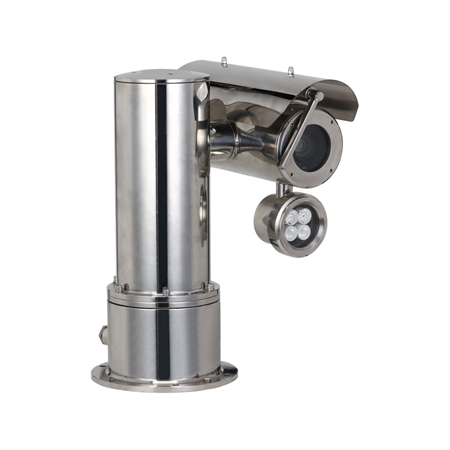

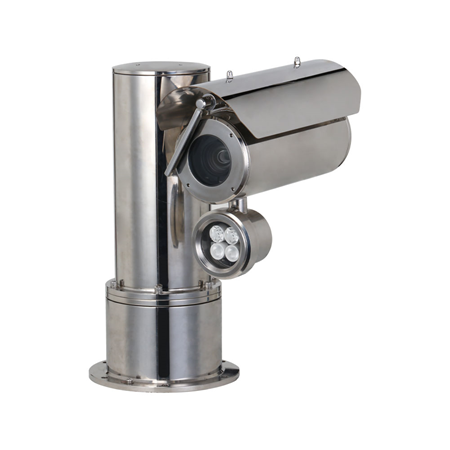

Dahua 8MP explosion-proof IP camera with pan-tilt positioner, 25X zoom, Starlight and 100 m IR for outdoor use

Technical Specifications

• Dahua 8MP Explosion-Proof IP Camera with Motorized Pan-Tilt for Industrial Installations
• 1/1.8" STARVIS™ CMOS sensor with a maximum resolution of 8MP (3840x2160)
• Progressive scan system
• 4 GB ROM and 1 GB RAM
• Minimum illumination of 0.005 lux in color and 0.0005 lux in black and white at F1.5, 30 IRE
• 0 lux with infrared illumination enabled
• Starlight technology to enhance images in low-light conditions
• Infrared illumination up to 100 m via 4 IR LED illuminators
• Automatic, manual, off, or zoom-priority illumination control
• Varifocal lens 5.4–135 mm motorized zoom with 25x optical zoom
• Maximum aperture of F1.6–F4.0
• Horizontal field of view: 61.6°–3.6°, vertical: 35.7°–2°, and diagonal: 66.6°–4°
• Autofocus, semi-autofocus, or manual focus
• Minimum focus distance: 0.5–7 m
• Automatic, manual, or iris-priority iris control
• Electronic shutter from 1 s to 1/30,000 s
• Signal-to-noise ratio of 55 dB or higher

Video stream

• Video compression: Smart H.265+, H.265, Smart H.264+, H.264B, H.264M, H.264H, and MJPEG on the second stream
• 3 video streams
• Stream 1: 8MP (3840x2160) at 25/30 fps
• Stream 2: D1 (704x576/704x480) and CIF (352x288/352x240) @ 25/30 fps
• Stream 3: 1080P (1920x1080), 1.3MP (1280x960), 720p (1280x720), and CIF (352x288/352x240) @ 25/30 fps
• Supported resolutions: 8MP (3840x2160), 4MP (2560x1440), 3MP (2048x1536), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1, and CIF
• CBR/VBR bitrate control
• H.265 bit rate: 51–10,240 kbps

Functionalities

• Automatic day/night mode via ICR, color, or black-and-white
• 120 dB true WDR for backlight compensation
• BLC (backlight compensation) and HLC (highlight compensation)
• 2D NR and 3D NR digital noise reduction
• Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Natural Light, and Streetlight white balance
• Automatic, manual, or gain-priority gain control
• Electronic image stabilization (EIS)
• Electronic Defog function
• 16X digital zoom
• 180° digital image rotation
• Motion detection
• Regions of Interest (ROI)
• Privacy masking for up to 24 areas, with a maximum of 8 simultaneous areas in the same view
• Built-in windshield wiper
• Active deterrence via 11 predefined audio alerts and the ability to import custom sounds
• Adjustable audio alert volume from 0% to 100%
• Configurable audio alert playback from 1 to 10 times

Smart features

• Perimeter protection via line crossing, intrusion, fence crossing, loitering detection, rapid movement, parking, and crowd detection
• Intelligent classification of human targets
• Detection of abandoned and missing objects
• Facial detection with capture, optimization, and enhancement of facial images
• Extraction of 6 facial attributes and 8 expressions
• Real-time facial capture, prioritized by quality or by selecting the best image
• Cropping of facial images with customizable size
• SMD 4.0 for intelligent motion detection
• Quick Pick for fast target search

Positioner

• Motorized positioner with continuous 360° horizontal rotation
• Vertical tilt from -90° to +90°
• Manual horizontal control speed from 0.1°/s to 40°/s
• Manual vertical control speed from 0.1°/s to 40°/s
• Horizontal movement speed to preset positions: 0.1°/s to 40.5°/s
• Vertical movement speed to preset positions: 0.1°/s to 44.1°/s
• Up to 300 preset positions
• Up to 8 patrol rounds with a maximum of 32 preset positions per round
• Up to 5 movement patterns
• Up to 5 automatic sweeps
• Position memory after power interruption
• Automatic movement in standby mode using preset positions, patterns, patrols, or sweeps
• DH-SD and Pelco-P/D PTZ control protocols

Audio

• 1 audio input / 1 audio output via direct wiring (LINE IN and LINE OUT)

Storage

• MicroSD slot supporting up to 512 GB (card not included)
• Storage via FTP, SFTP, and NAS

Alarms

• 2 alarm inputs / 1 alarm output
• Alarm inputs via 0–5 V DC contacts
• Alarm actions via recording, email notification, preset positions, patrols, patterns, digital output, and audio
• Motion detection and video tampering
• Audio event detection
• Alarms for network disconnection and IP conflicts
• Memory card status detection and insufficient storage space alerts

Communication interface

• 1 RS485 interface with a speed of 1200–9600 bps

Network

• 10/100 Mbps RJ45 Ethernet port
• 100 Mbps single-fiber Lens port
• Protocols: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, 802.1x, SSL, QoS, FTP, UPnP, ICMP, SNMP, IGMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, and NFS
• ONVIF Profile S, G, and T compatibility
• Interoperability via CGI and SDK
• Unicast and Multicast transmission
• Up to 20 users with a total bandwidth of 64 Mbps
• Compatible with IE, Chrome, Firefox, and Safari browsers in the versions specified by the manufacturer
• Compatible with DMSS and DSS Pro
• Access from iOS and Android mobile devices

Power Supply

• 100–240 V AC, 1 A, 50/60 Hz
• Base power consumption: 15W
• Maximum power consumption of 60W with lights, heater, positioner, and windshield wipers activated

Environmental

• Operating temperature: -40°C to +60°C
• Operating humidity of 95% or less
• IP66 and IP68 protection against dust and water
• 6000V TVS lightning protection
• Protection against overvoltage and voltage transients
• Basic corrosion protection
• Designed for industrial applications involving dust and flammable or explosive gases

Physical Characteristics

• Explosion-proof IP-rated chamber design with integrated motorized positioner
• SUS316L stainless steel housing
• Dimensions: 334.1 x 303 x 426 mm
• Net weight: 23.5 kg
• Gross weight: 46.4 kg

Contents

• Dahua 8MP explosion-proof IP camera with motorized pan-tilt and 25X optical zoom

Certifications and Standards

• ATEX certification in accordance with EN 60079-0, EN 60079-1, and EN 60079-31
• IECEx certification in accordance with IEC 60079-0, IEC 60079-1, and IEC 60079-31
