DAHUA-4841

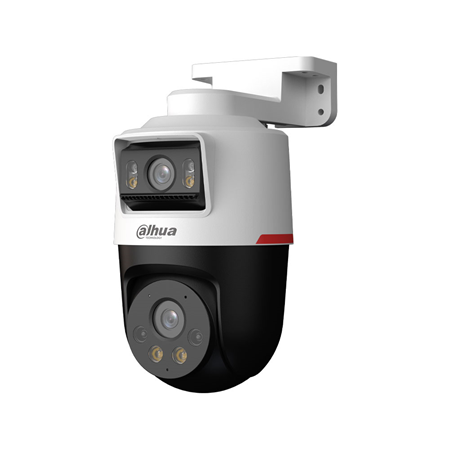

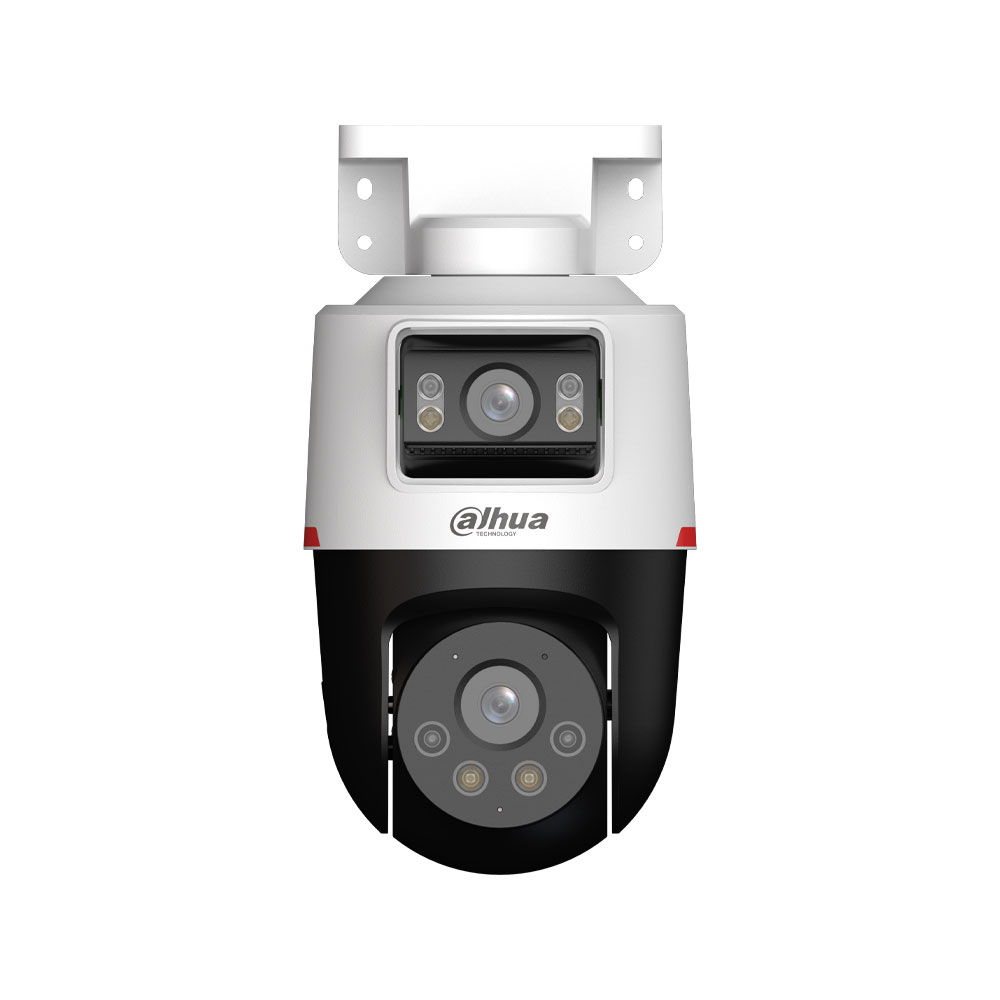

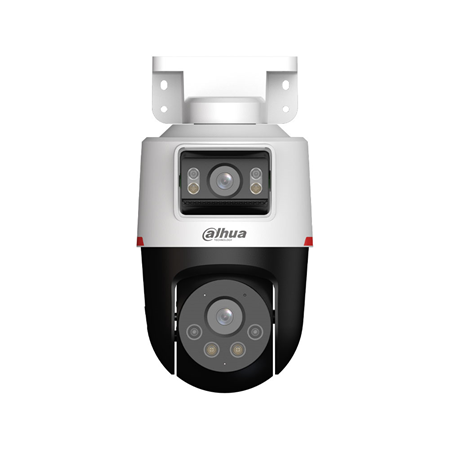

Dahua 2MP dual PTZ IP dome with active deterrence and intelligent analytics
DAHUA-4841
DH-IPC-PTS2249BP-E2-S-PV-LED-0360B-PRO










Main features
Specifications
- 1/2.9" CMOS sensor with 1920 × 1080 maximum resolution
- Fixed lens 3.6mm (F1.0)
- Angle of view: 81° (H), 44° (V), 95° (D)
- Day/night mode with automatic switching
- 0.0006 lux (color) / 0 lux with white light
- Warm illumination up to 30 m
- H.265, H.264, MJPEG video compression (substream)
- Smart Codec: Smart H.265+ / Smart H.264+
- Resolution: 1080P (1920 × 1080), 1.3MP (1280 × 960), 720P (1280 × 720), D1 (704 × 576 / 704 × 480), VGA (640 × 480), CIF (352 × 288 / 352 × 240)
- Stream 1: 1080P, 1.3MP, 720P, D1, VGA, CIF (1~25/30 ips)
- Stream 2: D1, VGA, CIF (1~25/30 fps)
- Image functions: WDR 120 dB, BLC, HLC, 3D NR, ROI, rotation, mirror, LDC
- Privacy: 4 configurable masks
- Intelligent video functions:
- SMD Plus
- Perimeter protection: line crossing and intrusion with people and vehicle classification
- Alarms by video analysis events:
- Motion detection
- Video tampering
- Audio detection
- Network loss
- IP conflict
- Illegal access
- SD card error or removal
- Intrusion
- Line crossing
- SMD
- Digital input
- Voltage failure
- Pan/Tilt positioner: 0°~350° (Pan), 0°~90° (Tilt) / Max. speed: 55.4°/s (Pan), 29.3°/s (Tilt)
- Rounds: 8 rounds with up to 32 presets each
- Presets: up to 300
- Bi-directional audio: built-in microphone and speaker
- Active deterrence: warm light and siren with customizable audio messages
- MicroSD slot up to 256 GB (card not included)
- Network interface: RJ-45 10/100 Base-T
- Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, P2P, Bonjour, Auto Registration
- ONVIF (Profile S/G/T), CGI support
- Software: Smart PSS Lite, DSS, DMSS
- Mobile clients: Android / iOS
- Power supply: 12 VDC ±30 % or PoE 802.3af
- Max. power consumption: 9.2 W (12 VDC) / 10.5 W (PoE)
- Operating temperature: -40 °C to +50 °C (-40 °C to +50 °C)
- Humidity: ≤95 % (non-condensing)
- Storage temperature: -40 °C to +50 °C (-40 °F to +50 °F)
- Storage humidity: ≤95 % (non-condensing)
- IP66 protection
- Plastic housing
- Dimensions: 110.1 × 159.4 × 210 mm
- Net weight: 0.62 kg
- Gross weight: 0.87 kg
- Certifications: CE-LVD, CE-EMC
REFERENCE / MODEL | DAHUA-4841 / DH-IPC-PTS2249BP-E2-S-PV-LED-0360B-PRO |
---|---|
Resolution | 2MP |
Series | TiOC |
Audio | Microphone || Speaker || Two-way |
IR Distance | 21-40m |
Ingress protection | IP66 |
Lens | 3.6 mm |
Special Protection | No |
Sensor | 1/2.9" CMOS |
StarLight | StarLight |
WDR (Backlight) | WDR (120dB) |
Codec | H.264 || H.264+ || H.265 || H.265+ |
PoE | PoE |
SD Slot | Yes |
Colour | White |
Installation environment | Outdoor |
Material | Plastic |
Alarm channels | No |
Connectivity | IP || YES (P2P) |
AI Series | WizColor |
Intelligent functions | Perimeter protection || SMD Plus |
Compatibility | Onvif |
