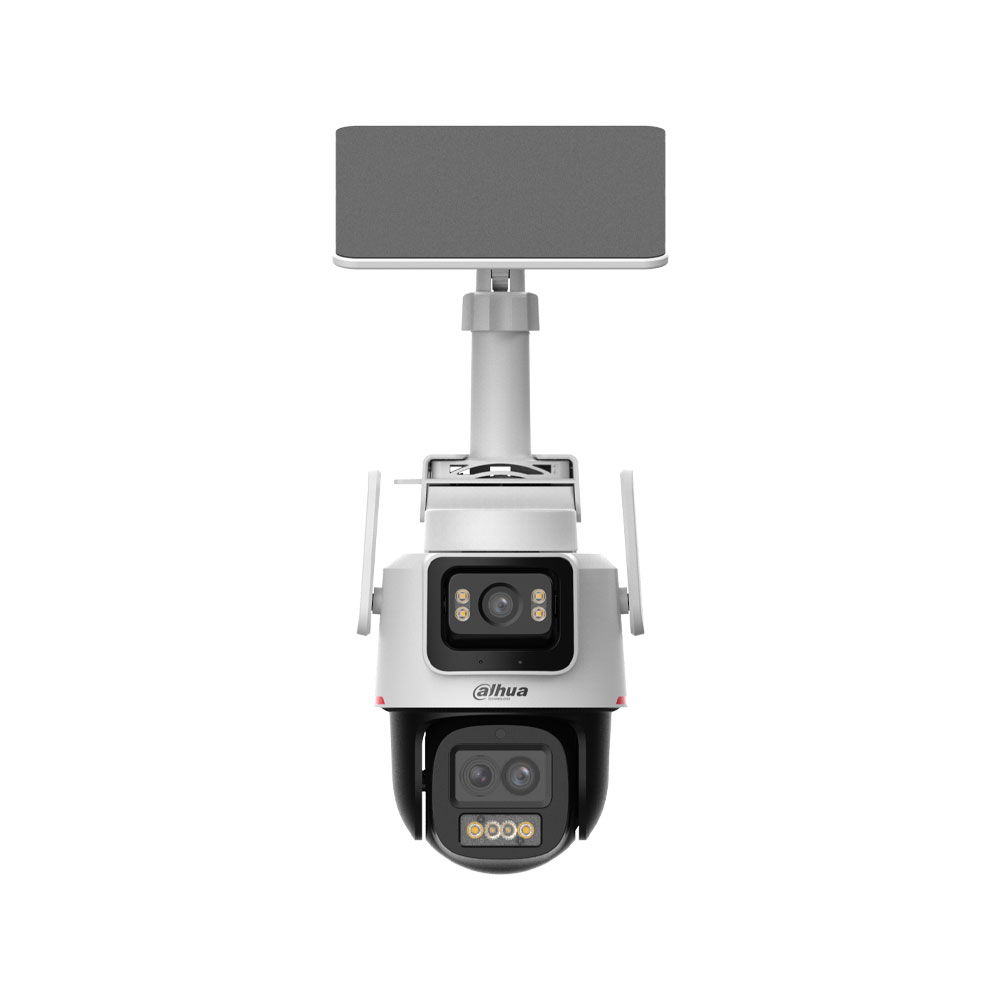

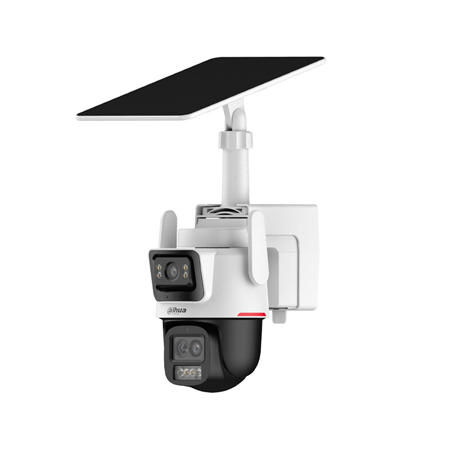

Dahua WizColor 4G Solar Hybrid PT Solar IP Camera

Technical Features

• Dahua WizColor Solar Hybrid PT Solar IP Camera
• Dual 1/2.8" 3 MP CMOS sensor (fixed and PT)
• Maximum resolution of 2304×1296
• 6× hybrid zoom
• Minimum illumination 0.0005 lux@F1.0; 0 lux with active light
• Illumination range: fixed 30 m, PT 50 m (warm light)
• Fixed lens 2.8 mm, PT 3.6 mm / 8.4 mm
• Angle of view (2.8 mm): H 93.5° V 51.9° D 110.1° (2.8 mm): H 93.5° V 51.9° D 110.1° (2.5°)
• Angle of view (3.6 mm): H 81.5° V 44.3° D 96.3° Viewing angle (3.6 mm): H 81.5° V 44.3° D 96.3
• Angle of view (8.4 mm): H 15.1° V 8.4° D 17.8° Pan/Tilt PT: 0°~0.5°~0.5° D 17.8
• Pan/Tilt PT: 0°~350° / 0°~+90° electrical
• Pan/Tilt fixed: 0°~210° / -7°~+20° manual
• Up to 50 presets and 8 rounds (32 presets per round)
• IP66 protection

Video

• Smart H.265+ encoding
• Resolutions: 3M (2304×1296), 1080P, 720P, 640×360
• Frames per second: 15 fps (fixed sensor and PT)
• DWDR, 3D NR, auto white balance and auto gain
• VBR bit rate control (54 kbps - 1280 kbps)
• 180° image rotation, motion detection

Intelligent functions

• AI SMD 3.0 for human and vehicle detection
• Auto Tracking Lite
• AOV Always-On Video mode with 24/7 low power consumption recording
• AI-ISP technology for image optimization
• Tap and View function for instant focus on selected area

Active deterrence

• White warning light
• Integrated siren with 3 configurable sounds (volume 1-100 / 1-10 repeats)

Audio

• Built-in microphone and speaker
• Two-way audio

Storage

• Micro SD slot up to 512 GB (card not included)

Alarms

• Events: motion, person and vehicle detection
• Link with warning light and siren

Network

• Integrated 4G LTE module
• LTE-FDD band: B1/B3/B5/B7/B8/B20/B28
• LTE-TDD band: B38/B40/B41
• 4G Class 3 transmission (23 dBm ± 2,7 dB)
• DMSS software (Windows/macOS)
• DMSS mobile application (Android/iOS)

Power supply

• Built-in 65 Wh lithium battery
• 8 W solar panel included
• Charging via USB Type-C (QC2.0)
• Max. power consumption: 8 W (PTZ in motion, lighting and audio active)

Environmental

• Operating temperature: -20 °C ~ +60 °C
• Battery charging temperature: -10 °C ~ +50 °C
• Humidity ≤ 95 %.
• TVS 2000 V protection against lightning and surge voltages

Physical characteristics

• Metallic material
• Dimensions: 223,2 × 130 × 215 mm
• Net weight: 1.8 kg
• Gross weight: 2.5 kg

Contents

• DAHUA-4989 (DH-IPC-PTS2649DCP-3E3Z-S4GB20-3684/0280B-PRO-EUR) 4G WizColor Solar PT IP Camera

Certifications

• CE: EN 55032, EN 55035, EN 50130-4, EN 61000-3, EN 62368-1, EN 301489
