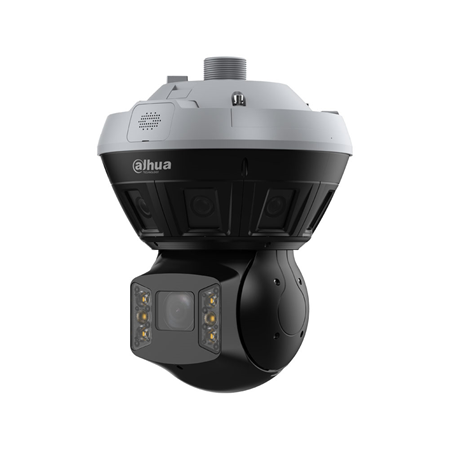

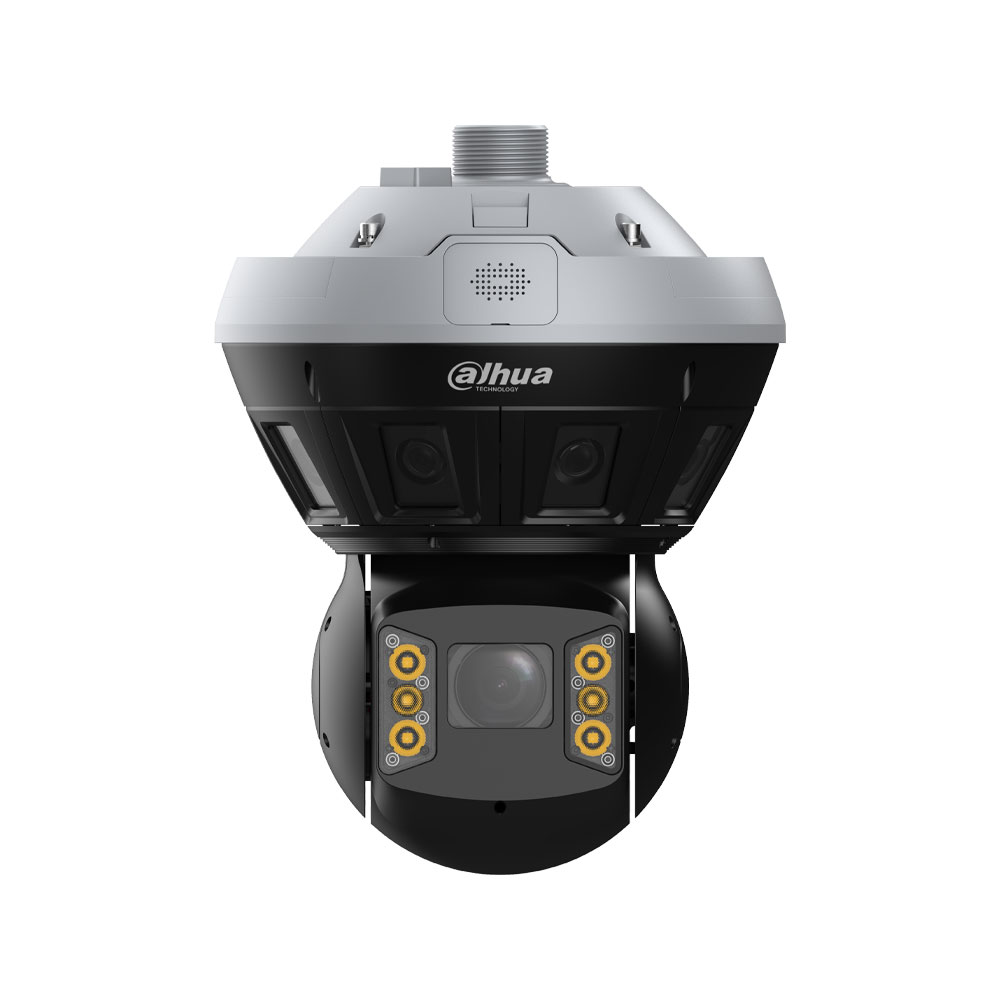

Dahua Hubble Series 16MP 360° panoramic IP PTZ dome with 4MP PTZ module, 40X zoom and Xinghan

Technical Specifications

• Dahua Hubble Series WizMind Multi-Sensor IP PTZ Dome Camera with 360° Panoramic View and Integrated PTZ Module
• Panoramic Channel 1 with 8 1/1.8" CMOS sensors, each with 2MP resolution, for a panoramic resolution of 16MP
• Channel 1 with a maximum resolution of 8192x1800
• PTZ Channel 2 with a 1/1.8" CMOS sensor and 4MP resolution (2688x1520)
• Progressive scan system
• Panoramic channel memory: 8 GB ROM and 4 GB RAM
• PTZ channel memory: 4 GB ROM and 2 GB RAM
• Minimum illumination for the panoramic channel: 0.0005 lux in color and 0.0001 lux in black-and-white at F1.0, 30 IRE
• Minimum illumination for the PTZ channel: 0.001 lux in color and 0.0001 lux in black and white at F1.6, 30 IRE
• 0 lux on the PTZ channel with illumination enabled
• Signal-to-noise ratio greater than 56 dB
• Automatic or manual electronic shutter from 1/3 s to 1/100,000 s
• Fixed 2.8 mm lens on the panoramic channel, with M16 mount, F1.0 aperture, and fixed iris
• Panoramic field of view: 360° horizontal and 103° vertical
• Minimum focus distance of 1.4 m on the panoramic channel
• Varifocal lens 5.2–210 mm on the PTZ channel
• 40X optical zoom and 16X digital zoom on the PTZ channel
• PTZ channel aperture: F1.6–F5.0 with automatic iris
• PTZ channel field of view: 60.8°–2.8° horizontally, 35.9°–1.7° vertically, and 67.7°–3.3° diagonally
• Minimum focus distance of the PTZ channel: 0.5 m
• PTZ channel infrared illumination with a range of up to 150 m
• Warm-light illumination on the PTZ channel with a range of up to 100 m
• 6 multicore illuminators with IR and warm light technology on the PTZ channel
• Automatic, manual, or zoom-priority illumination control
• DORI distances for the panoramic channel: detection 57.9 m, observation 23.2 m, recognition 11.6 m, and identification 5.8 m
• DORI distances for the PTZ channel: detection 2,648.2 m, observation 1,046.1 m, recognition 530 m, and identification 264.8 m

Video stream

• H.265, H.264, H.264H, H.264B, and MJPEG video compression on the secondary stream
• Smart H.264+ and Smart H.265+ intelligent encoding
• 3 video streams
• Panoramic channel, Stream 1: 8192x1800@1–25/30 fps
• Panoramic channel, Stream 2: 2048x452@1–25/30 fps
• Wide-angle channel, Stream 3: 3840x832@1–25/30 fps
• PTZ channel, Stream 1: 4MP (2688x1520)@1–25/30 fps
• PTZ channel, Stream 2: 704x480@1–25/30 fps
• PTZ channel, Stream 3: 1080p (1920x1080)@1–25/30 fps
• Panoramic channel resolutions: 8192x1800, 7680x1680, 5760x1264, 4096x900, 3840x832, 2560x560, and 2048x452
• PTZ channel resolutions: 4MP (2688x1520/2560x1440), 3MP (2304x1296), 1080P (1920x1080), 1280x960, 720P (1280x720), D1, VGA, and CIF
• VBR and CBR bitrate control
• Panoramic channel bitrate: H.264 96–32,768 kbps and H.265 38–25,692 kbps
• H.264 PTZ channel bitrate: 32–16,384 kbps; H.265: 12–11,008 kbps

Functionalities

• 360° panoramic view via multi-sensor image fusion
• Flexible image stitching technology for adjacent sensors to reduce occlusion zones
• Flexible cropping of the panoramic image
• AR Panorama technology to overlay augmented reality tags on images
• View camera video by selecting AR tags
• G-sensor and integrated digital level
• ICR filter on the PTZ channel
• Digital WDR on the panoramic channel
• 120 dB WDR on the PTZ channel
• Backlight Compensation (BLC) and High Light Compensation (HLC)
• 3D digital noise reduction (NR)
• GIS gyroscope image stabilization on the PTZ channel
• Lens on the PTZ channel
• Auto, Natural, Streetlight, Outdoor, Manual, and Region-Specific White Balance
• Automatic or manual gain control
• Motion detection in 4 rectangular areas
• 4 regions of interest (ROI) on the panoramic channel
• 8 regions of interest (ROI) on the PTZ channel
• Privacy masking for the panoramic channel using 4 rectangular areas
• Privacy masking for the PTZ channel using 24 polygonal areas, with up to 8 per preset

Smart Features

• Xinghan Large-Scale AI Models-Vision based on deep learning
• Four switchable intelligent features on the panoramic channel: perimeter protection, crowd mapping, vehicle density, and vessel detection
• Three switchable intelligent features on the PTZ channel: perimeter protection, video metadata, and facial detection
• Perimeter protection for the panoramic channel via line crossing, intrusion, and parking detection
• Perimeter protection on the PTZ channel via line crossing, intrusion, parking, virtual fence crossing, and rapid movement
• Detection of abandoned and missing objects on the PTZ channel
• Detection of crowd gatherings and loitering on the PTZ channel
• Crowd distribution map using Xinghan AI models on the panoramic channel
• Comprehensive analysis of crowd density, density by area, people counting, and crowd status
• Crowd analysis optimized for nighttime scenes, rainy conditions, and people using umbrellas
• Analysis of vehicle density, parking occupancy limits, traffic congestion, and vehicle status
• Vessel detection on the panoramic channel
• Smart Tracking with linking between the panoramic and PTZ channels to obtain zoomed-in details of targets
• Facial detection in the PTZ channel with image capture, optimization, and enhancement
• Extraction of 6 facial attributes and 8 expressions
• Real-time facial capture, prioritized by quality and optimized
• Video metadata on the PTZ channel for detection and capture of motorized vehicles, non-motorized vehicles, faces, and people
• Extraction of 6 motorized vehicle attributes and 6 non-motorized vehicle attributes
• Extraction of 6 facial attributes and 8 body attributes
• Smart Search in combination with compatible smart NVRs for refined search, extraction, and grouping of events

Positioner

• Motorized PTZ pan-tilt unit with continuous horizontal movement from 0° to 360°
• Vertical movement from -10° to 180° with automatic 180° image flip
• Manual horizontal speed of 0°–360°/s
• Manual vertical speed of 0°–150°/s
• 300 preset positions
• Movement speed between presets of up to 360°/s horizontally and 150°/s vertically
• 8 patrol routes with up to 32 preset positions per route
• 5 programmable movement patterns
• 5 scans
• Position memory after power interruption
• Inactivity actions via patrols, presets, patterns, and scans

Audio

• 2 built-in microphones
• 2 built-in speakers
• Two-way audio communication
• 2 audio inputs / 1 audio output via connectors
• Audio compression: PCM, G.711a, G.711Mu, G.726, and G.723

Storage

• MicroSD card slot supporting up to 1 TB (card not included)
• Storage via FTP, SFTP, NAS, and SMB

Alarms

• 3 alarm inputs / 2 alarm outputs
• Alarm inputs via wet contact at 3–5 V DC and 5 mA
• Alarm outputs via dry contact: 1000 mA at 30 V DC or 500 mA at 50 V AC
• Panoramic channel events triggered by external alarm, SD card failure, network disconnection, IP conflict, unauthorized access, and voltage anomalies
• Panoramic channel alarms triggered by motion detection, video tampering, scene changes, and audio events
• Smart events on the panoramic channel triggered by line crossing, intrusion, loitering, crowd density, congestion, and occupancy limits
• PTZ channel smart events triggered by line crossing, intrusion, rapid movement, virtual fence crossing, loitering, and crowd gathering
• PTZ channel alarms for abandoned and missing objects, facial detection, and video metadata

Communication Interface

• 1 RS485 interface with a baud rate of 1200–115,200 bps
• 1 analog CVBS video output via BNC connector

Network

• 10/100/1000 Mbps RJ45 Ethernet port
• Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, and P2P
• ONVIF Profile S, G, and T compatibility
• Interoperability via CGI, SDK, and API
• Up to 20 users with a total bandwidth of 400 Mbps
• Compatible with DSS Pro management software
• Access via IE11, Chrome, and Firefox browsers
• Cybersecurity features via HTTPS, 802.1X, WSSE, IP/MAC filtering, account locking, and X.509 certificates
• Security logging, trusted boot, trusted execution, and trusted updates

Power

• 36V DC (±50%) or PoE++ (IEEE 802.3bt) power supply
• 12V DC auxiliary power output with a maximum current of 165 mA and a peak of 700 mA
• Basic power consumption of 26.4 W at 36V DC
• Maximum power consumption of 67.8 W at 36V DC with WDR, smart features, speakers, heating, LED lighting, and PTZ movement enabled

Environmental

• Operating temperature range: -40°C to +70°C
• Operating humidity up to 95%
• Storage temperature: -40°C to +70°C
• Storage humidity up to 95%
• IP67 protection against dust and water
• IK10 vandal-resistant rating
• Moderate corrosion protection via special coating

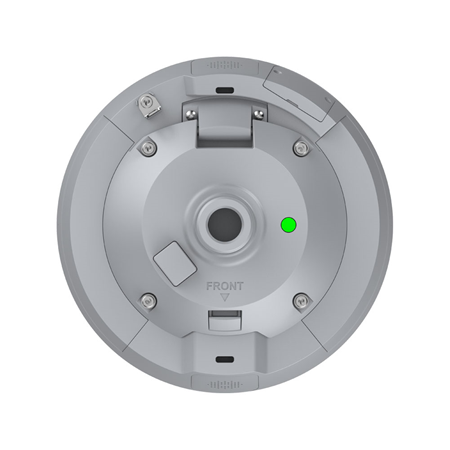

Physical Characteristics

• Integrated multisensor design with panoramic module and motorized PTZ dome
• Metal and plastic housing with anti-corrosion coating
• Wall or pole mounting using optional brackets
• Dimensions: Ø280 x 368 mm
• Net weight: 8.8 kg
• Gross weight: 12.2 kg

Contents

• Dahua Hubble Series WizMind 16MP Panoramic Multisensor IP PTZ Dome with 4MP PTZ Channel and 40X Optical Zoom DAHUA-5411 (DH-PSDW81652SP-A360-D440-DC36V-ATC)
• ADS-180EL-36-1 360180E power adapter, 36V DC and 5 A, listed as included in the technical documentation

Certifications and Standards

• CE-LVD compliant with EN 62368-1
• CE-EMC compliant with Directive 2014/30/EU on electromagnetic compatibility
• UL 50E NEMA Type 4X for environmental protection and corrosion resistance
