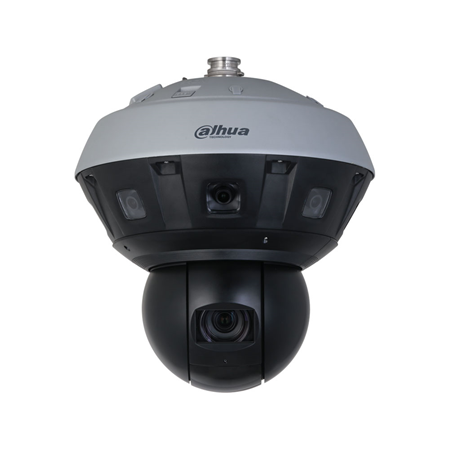

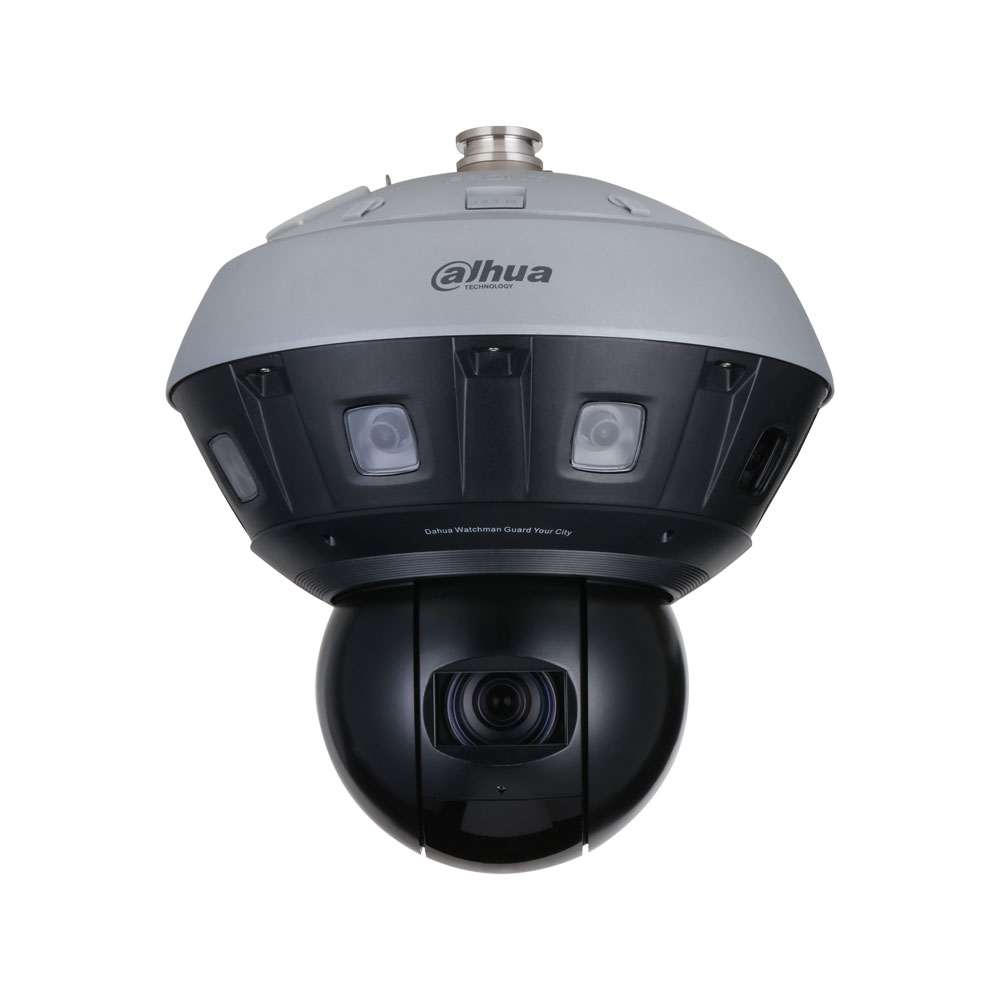

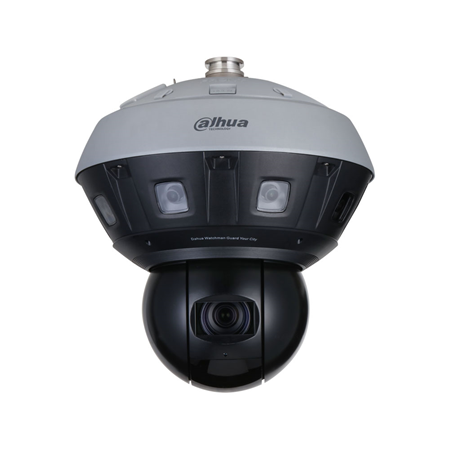

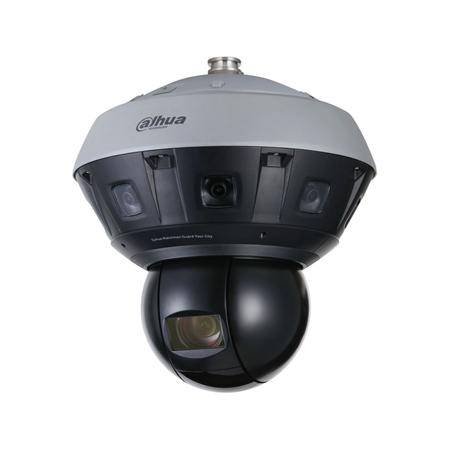

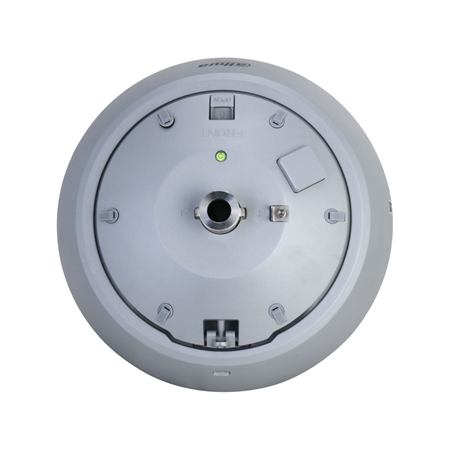

Dahua Hubble Series 32MP 360° panoramic IP PTZ dome with 8MP PTZ module, 45X zoom and Xinghan

Technical Specifications

• Dahua Hubble Series WizMind Multisensor IP PTZ Dome Camera with 360° Panoramic View and Integrated PTZ Module
• 1 panoramic channel with 8 1/1.8" CMOS sensors, each with 4MP resolution
• Maximum panoramic resolution of 32MP (11520x2700) @ 25/30 fps
• PTZ Channel 2 with an 8MP 1/1.8" CMOS sensor
• Maximum PTZ resolution of 8MP (3840x2160) @ 25/30 fps
• Progressive scan system
• 8 GB ROM and 4 GB RAM on each channel
• Minimum illumination for the panoramic channel: 0.001 lux in color and 0.0001 lux in black-and-white at F1.0, 30 IRE
• Minimum illumination for the PTZ channel: 0.001 lux in color and 0.0001 lux in black and white at F1.5, 30 IRE
• 0 lux on the PTZ channel with backlighting enabled
• Signal-to-noise ratio greater than 56 dB
• Electronic shutter for the panoramic channel from 1/3 s to 1/100,000 s
• Electronic shutter on the PTZ channel from 1/1 s to 1/300,000 s
• 2.8 mm fixed lens on the panoramic channel with M16 mount, F1.0 aperture, and fixed iris
• Panoramic field of view: 360° horizontal and 105° vertical
• Minimum focus distance for the panoramic channel: 1.4 m
• Varifocal lens 5.5–248 mm motorized zoom on the PTZ channel
• 45X optical zoom and 16X digital zoom on the PTZ channel
• PTZ channel aperture of F1.5–F5.3 with automatic iris
• PTZ channel field of view: 64.4°–2.02° horizontally and 38.37°–1.14° vertically
• PTZ channel minimum focus distance: 0.1–5 m, depending on zoom position
• PTZ channel illumination via 7 laser LEDs and 2 infrared LEDs
• Laser illumination range of up to 500 m
• Automatic, manual, or zoom-priority illumination control
• DORI distances for the panoramic channel: detection 57.9 m, observation 23.2 m, recognition 11.6 m, and identification 5.8 m
• DORI distances for the PTZ channel: detection 4,420 m, observation 1,768 m, recognition 884 m, and identification 442 m

Video stream

• H.265, H.264, H.264H, H.264B, and MJPEG video compression in the secondary stream
• Smart H.265+ and Smart H.264+ intelligent encoding
• 3 video streams
• Stream 1 of the panoramic channel: 32MP (11520x2700)@1–25/30 fps
• Stream 1 from the PTZ channel: 8MP (3840x2160) @ 1–25/30 fps
• Stream 2 from the PTZ channel: D1 (704x576)@1–25/30 fps
• Stream 3 from the PTZ channel: 1080P (1920x1080) @ 1–25/30 fps
• Resolutions for the main panoramic stream: 11520x2700, 8192x1800, 7680x1680, 5760x1264, and 4096x900
• PTZ main stream resolutions: 3840x2160, 2560x1440, 1920x1080, 1280x960, and 1280x720
• CBR and VBR bitrate control
• Panoramic channel bitrate: 127–20,736 kbps for H.264 and 50–12,544 kbps for H.265
• PTZ channel bitrate: 32–27,740 kbps for H.264 and 12–16,572 kbps for H.265

Functionalities

• 360° panoramic composition by stitching images from 8 sensors
• AR Panorama technology with augmented reality tag overlays to facilitate viewing and control
• Link between the panoramic channel and the PTZ to view zoomed-in details of targets
• Geolocation via GPS/BDS
• Automatic day/night mode via ICR, color, or black-and-white
• Digital WDR on the panoramic channel
• 120 dB WDR on the PTZ channel
• Backlight compensation (BLC) and high-light compensation (HLC)
• 3D Digital Noise Reduction (NR)
• Smart Scene Adaptation (SSA)
• Lens image stabilization on the PTZ channel
• Lens anti-fog function on the PTZ channel
• 0° and 180° image rotation on the PTZ channel
• Auto, Natural, Streetlight, Outdoor, Manual, and Region-Specific White Balance
• Automatic or manual gain control
• Configurable motion detection in 4 rectangular areas
• 4 regions of interest (ROI) on the panoramic channel
• 8 regions of interest (ROI) on the PTZ channel
• Privacy masking for the panoramic channel using 4 areas
• Privacy masking for the PTZ channel using 24 areas, with up to 8 per preset

Smart Features

• Xinghan Large-Scale AI Models-Vision for advanced scene analysis
• Three switchable intelligent features on the panoramic channel: perimeter protection, crowd distribution map, and vehicle density
• Three switchable intelligent features on the PTZ channel: perimeter protection, video metadata, and facial recognition
• Perimeter protection for the panoramic channel via line crossing, intrusion, and parking detection
• Perimeter protection for the PTZ channel via line crossing, intrusion, rapid movement, stationary object detection, loitering, and crowd gathering
• Intelligent classification of people and vehicles in PTZ functions for line crossing, intrusion, and rapid movement
• Crowd distribution map using Xinghan AI models
• Analysis of overall crowd density, density by area, and people counting by area
• Vehicle density analysis, parking occupancy limits, and traffic congestion alarms
• Smart Tracking of targets using the PTZ module
• Facial recognition with detection, tracking, image capture, and optimization
• Extraction of 6 facial attributes and 8 expressions
• Real-time facial capture, prioritized by quality and optimized
• Facial recognition through comparison with databases containing up to 10,000 facial images
• Supports up to 5 groups of facial databases
• Configuration of facial similarity thresholds
• Video metadata for detection, tracking, and capture of motorized and non-motorized vehicles, faces, and people
• Extraction of vehicle attributes such as license plate, type, color, make, seat belt use, smoking, and cell phone use
• Extraction of attributes for non-motorized vehicles, including vehicle characteristics, occupants, and helmet use
• Extraction of bodily and facial attributes of people
• Smart Search in combination with compatible smart NVRs for refined search and event extraction

Positioner

• Motorized PTZ pan-tilt unit with continuous horizontal movement from 0° to 360°
• Vertical movement from -11° to 90° with automatic 180° flip
• Horizontal speed for manual movement and movement between presets of up to 240°/s
• Vertical movement speed (manual and between presets) of up to 100°/s
• Horizontal and vertical positioning accuracy of 0.05°
• 300 preset positions
• 8 patrol rounds with up to 32 preset positions per round
• 5 programmable motion patterns
• 5 scans
• Position memory after power interruption
• Inactivity actions via presets, patterns, patrols, and scans
• Remote reset of the PTZ positioner
• Scheduled tasks
• Three-dimensional positioning
• PTZ movement limit configuration
• Display of position, information, and time

Audio

• 2 audio inputs / 2 audio outputs via connection terminals
• Audio compression: PCM, G.711a, G.711Mu, G.726, and G.723

Storage

• MicroSD card slot supporting up to 512 GB (card not included)
• Storage via FTP, SFTP, NFS, and SMB

Alarms

• 7 alarm inputs / 3 alarm outputs
• Alarm inputs: 3–5 V DC and 5 mA
• Alarm outputs: 1000 mA at 30 V DC or 500 mA at 50 V AC
• Panoramic channel events triggered by external alarm, missing SD card, full SD card, storage errors, network disconnection, and IP conflict
• Panoramic channel alarms triggered by unauthorized access, voltage anomalies, motion detection, and video tampering
• Panoramic channel events triggered by scene changes, audio anomalies, and intensity changes
• Smart panoramic channel alarms for line crossing, intrusion, loitering, crowd density, traffic congestion, and occupancy limits
• Smart PTZ channel alarms for line crossing, intrusion, rapid movement, virtual fence crossing, loitering, abandoned objects, and missing objects
• PTZ channel events triggered by loitering, crowd gathering, facial recognition, and video metadata

Communication interface

• RS485 interface
• 1 analog CVBS video output via BNC
• Lens FC fiber interface
• Single-mode, single-fiber Gigabit SFP optical module with a range of up to 20 km
• TX wavelength of 1550 nm and RX wavelength of 1310 nm for the specified Gigabit optical module

Network

• 10/100/1000 Mbps RJ45 Ethernet port
• Protocols: IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, 802.1X, and SNMP
• ONVIF Profile S, G, and T compatibility
• Interoperability via CGI, SDK, and API
• Up to 20 users with a total bandwidth of 400 Mbps
• Compatible with DSS management software
• Cybersecurity features via HTTPS, 802.1X, WSSE, configuration encryption, video encryption, and IP/MAC filtering
• Protection via account locking, X.509 certificates, security logs, and trusted boot
• Trusted execution, trusted updates, and firmware encryption

Power

• 36V DC power supply
• Base power consumption of 51.48 W at 36V DC
• Maximum power consumption of 71.9 W at 36V DC with WDR, smart features, infrared illumination, and PTZ motion enabled
• Heating power consumption of 6 W on the panoramic channel and 5.4 W on the PTZ module

Environmental

• Operating temperature: -40°C to +70°C
• Operating humidity up to 95%
• IP66 protection against dust and water
• Moderate corrosion protection via a heavy-duty coating

Physical Characteristics

• Integrated multisensor design with 360° panoramic module and motorized PTZ dome
• Metal and plastic housing
• Wall, pole, or ceiling mounting using compatible brackets
• Dimensions: Ø383 x 462 mm
• Net weight: 14.7 kg
• Gross weight: 19.8 kg

Contents

• Dahua Hubble Series 32MP panoramic IP PTZ dome camera with 8MP PTZ module and 45X optical zoom DAHUA-5412 (DH-PSDW83242MP-A360-D845L-DC36V-ATC-S3)
• 36V DC, 5 A power adapter
• PBW059-00 mounting bracket

Certifications and Standards

• CE-LVD compliant with EN 62368-1
• CE-EMC in accordance with the 2014/30/EU Electromagnetic Compatibility Directive
• FCC compliant with 47 CFR Part 15, Subpart B
• UL/CUL compliant with UL 62368-1 and CAN/CSA C22.2 No. 62368-1-14
