DAHUA-4611 | Dahua IPMECS-2234 4MP ANPR IP Camera with LED Display
DAHUA-4611DHI-IPMECS-2234-IZDahua IPMECS-2234 4MP ANPR IP Camera with LED Display
DAHUA-4611-A
DAHUA-4611-B
DAHUA-4611-C

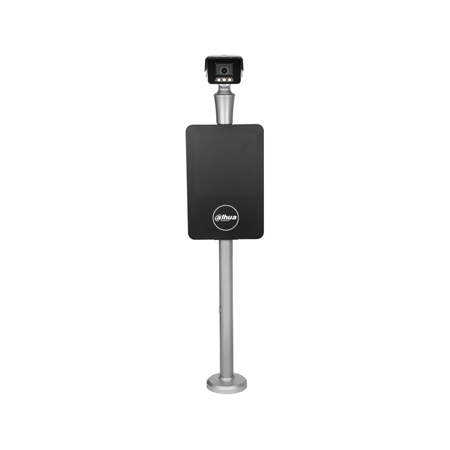

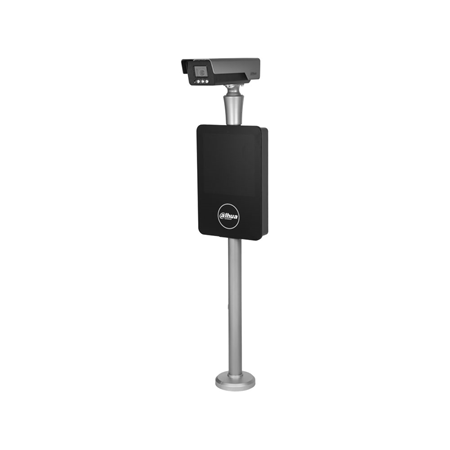

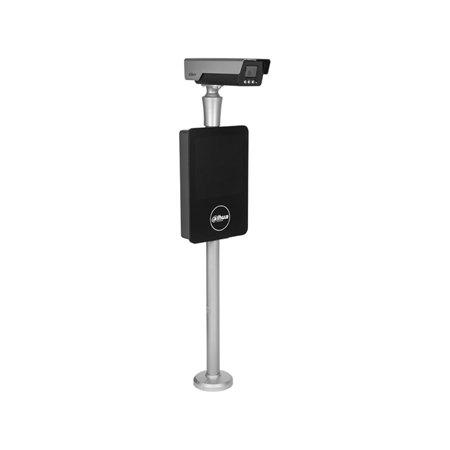

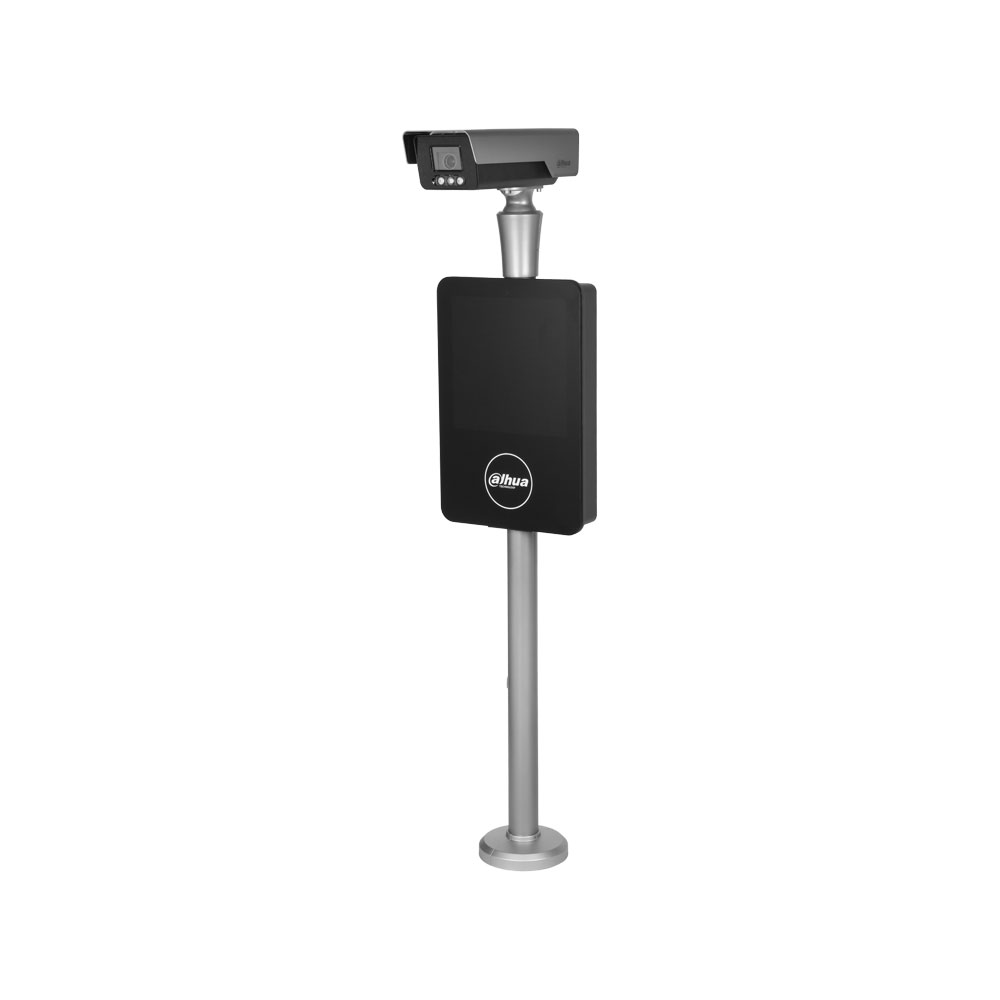

Dahua IPMECS-2234 4MP ANPR IP Camera with LED Display

DAHUA-4611

DHI-IPMECS-2234-IZ

Main features

  • Automatic license plate reading system with 4MP Starlight camera
  • Motorized lens 2.7-12 mm
  • IR and white LED illumination up to 8 m
  • AI processor with recognition of vehicle make, type, color and license plate
  • Motion capture up to 60 km/h
  • Integrated RGB LED display for messages, QR or warnings
  • RS-485 connectivity, network and alarms
  • IP54 and glass heating

Specifications

Technical Features

  • Dahua ANPR IP Camera
  • 1/1.8" CMOS sensor
  • Resolution: 4MP (2688×1520)
  • Minimum illumination: 0.001 lux (color), 0.0002 lux (B/W), 0 lux with illuminator
  • Maximum detection speed: 60 km/h
  • Motorized lens 2.7 to 12 mm
  • Viewing angle: H 98.1°~46.1°, V 54.0°~26.0°, D 114.6°~52.8
  • IR + white LED illumination up to 8 m (automatic adjustment)
  • Automatic defog by glass heating

Video

  • Resolutions: 4MP, 1080p, 720p / Substream: 960H, D1
  • Frames per second: up to 25 fps
  • Compression: H.265, H.264 (various profiles), MJPEG
  • Bit rate control: CBR/VBR
  • Image functions: WDR 140 dB, BLC, HLC, 3D NR, DDE, SSA
  • Image encoding: JPEG
  • Privacy and antimanipulation: masks, watermarking

Intelligent functions

  • License plate recognition (ANPR)
  • Recognition of 147 vehicle markings and 12 vehicle colors
  • Vehicle type recognition (10 types)
  • License plate and vehicle metadata extraction
  • Support for up to 110,000 entries in black and white lists

Audio

  • 1 audio input and 1 audio output (terminal)

Storage

  • 1 TF card slot up to 256 GB (card not included)

Alarms

  • 3 alarm inputs (opto-coupled)
  • 2 relay outputs (up to 2 A, 30 VDC / 0.5 A, 125 VAC)

Communication interface

  • 2 RS-485 ports
  • Reset button

Network

  • 1 RJ-45 port 10/100/1000 Mbps
  • Protocols: HTTP, HTTPS, TCP, UDP, RTSP, FTP, SMTP, DHCP, IPv4/6, NTP, DDNS, SNMP, PPPoE, and others
  • ONVIF (Profile S/T), CGI, ITSAPI, P2P
  • Compatible with DSS Express and DSS Pro

Power supply

  • 100~240 VAC
  • Max. power consumption: 70 W

Environmental

  • Operating temperature: -30°C to +60°C (-30°F to +60°F)
  • Humidity: 10%-95% (non-condensing)
  • Protection: IP54
  • Corrosion level: basic

Physical characteristics

  • Material: metal and plastic
  • Product dimensions: 380.9 × 320.0 × 1423.9 mm (380.9 × 320.0 × 1423.9 mm)
  • Packing dimensions: 912.0 × 547.0 × 232.0 mm
  • Net weight: 14.03 kg
  • Gross weight: 17.34 kg

Contents

  • ANPR kit with LED display DAHUA-4611 (DHI-IPMECS-2234-IZ)

Certifications

  • CE
  • UKCA
REFERENCE / MODEL DAHUA-4611 / DHI-IPMECS-2234-IZ
Resolution 4MP
Audio 1 input / 1 output
IR Distance <10m
Ingress protection IP54
Lens Motorized 2.7~11 mm
Special Protection Corrosion
Sensor 1/1.8 CMOS
StarLight StarLight
WDR (Backlight) WDR (140dB)
Codec H.264 || H.265
SD Slot Yes
Colour Black
Installation environment Outdoor
Material Metal || Plastic
Alarm channels 3 inputs / 2 outputs
Connectivity IP || RS-485
AI Series WizMind
Intelligent functions LPR
Compatibility Onvif
