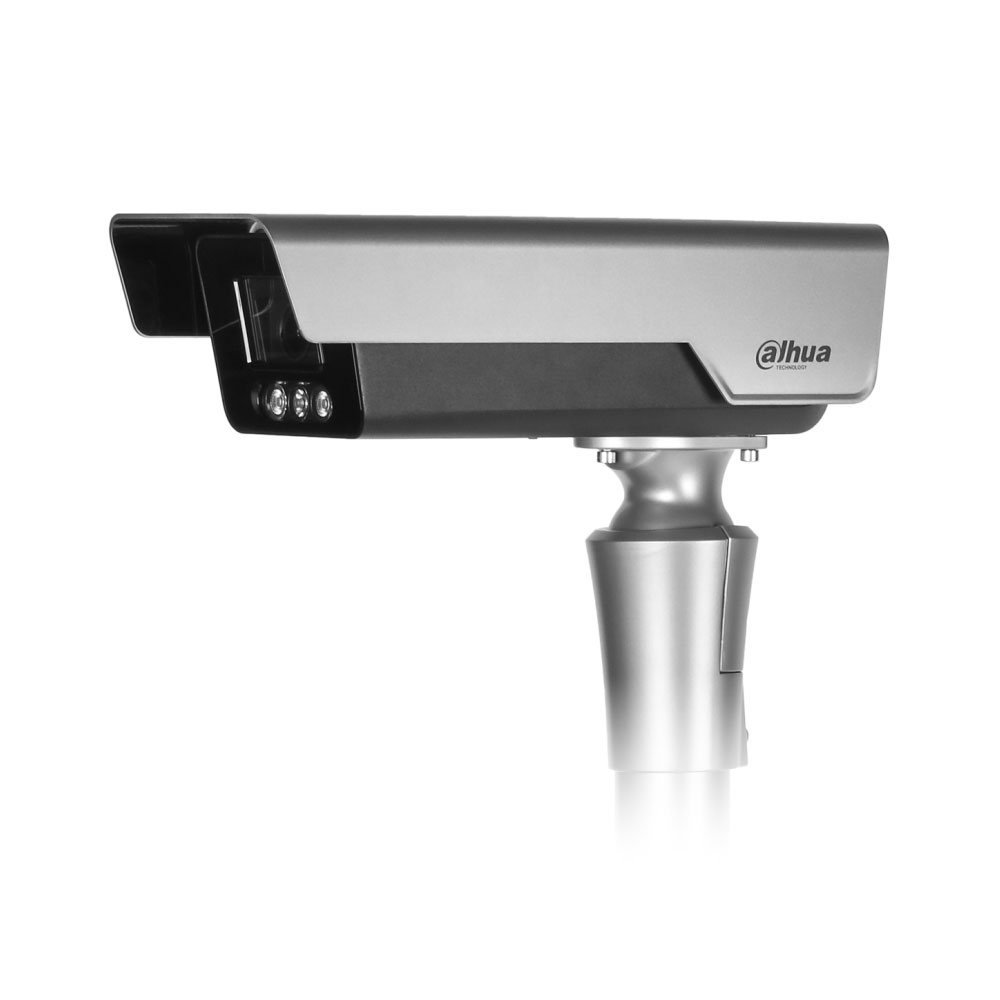

Dahua Smart ANPR 4MP ANPR camera with motorised lens and dual light

Technical features

• 1/1.8" CMOS sensor
• Image resolution 2688 x 1520
• High-performance processor for 24/7 continuous metadata extraction
• Maximum detection speed of 60 km/h
• Minimum illumination of 0.001 lux@F1.4 in color, 30 IRE
• Minimum illumination of 0.0002 lux@F1.4 in B/W, 30 IRE
• 0 lux with illuminator activated
• Varifocal lens motorized from 2.7 mm to 12 mm
• Maximum aperture F1.6
• Field of view H 98.1°-46.1°, V 54.0°-26.0°, D 114.6°-52.8°
• Autofocus, area focus and manual focus control
• Auto iris
• 3 white LED illuminators with IR light
• 3000 K illuminator color temperature
• Automatic or manual illuminator brightness adjustment
• Automatic or manual illuminator on/off control
• Illumination distance of 8 m
• LED display

Video Stream

• Main Stream 4MP 2688 x 1520, 1080p 1920 x 1080 and 720p 1280 x 720
• Substream 960H 960 x 576 and D1 704 x 576
• PAL: main stream 2688 x 1520@25 ips, 1920 x 1080@25 ips and 1280 x 720@25 ips
• PAL: substream 960 x 576@25 fps and 704 x 576@25 fps
• H.264H, H.264B, H.265, MJPEG and H.264M video compression
• H.264B bit rate from 2179 kbps to 13074 kbps
• H.264M bit rate from 2179 kbps to 13074 kbps
• H.264H bit rate from 2179 kbps to 13074 kbps
• H.265 bit rate from 2179 kbps to 13074 kbps
• MJPEG bit rate from 6537 kbps to 39223 kbps
• CBR and VBR bitrate control

Functionalities

• BLC, HLC, WDR 140 dB
• 3D NR noise reduction
• Automatic scene adaptation SSA
• Manual or automatic gain control
• RoI with 3 areas
• Privacy mask
• Image manipulation prevention through verifiable watermarks on videos and images
• Digital detail enhancement DDE
• Image in JPEG format
• Brightness, contrast, saturation, gamma, sharpness, gain and white balance adjustment
• IR day/night filter with color, B/W and auto modes
• Auto, custom regional, manual, manual, outdoor, natural and streetlight white balance
• OSD time, direction, lane, license plate and vehicle overlay
• Intelligent illumination with automatic intensity adjustment according to the brightness of the environment
• Automatic defogging technology by glass heating
• ANR with platform and FTP
• Allowed list of 110,000 records
• Locked list of 110,000 records
• Basic events for card absence, card full, card error, network disconnection, IP conflict and illegal access
• Alarm linkage with upload to FTP or memory card, notification to monitoring center, email sending and alert output activation
• Capture distance from 2.5m to 6m
• Detected width from 3 m to 4 m
• Maximum number of vehicles passed 10000
• Maximum number of connections 10

Intelligent functions

• Recognition of motorized and non-motorized vehicles
• Vehicle type, badge, color, license plate and unregistered vehicle recognition
• Video metadata with intelligent frame, license plate and vehicle trajectory recognition
• Recognition of 147 vehicle logos
• Recognition of 12 vehicle colors: gray, black, white, silver, blue, blue, green, purple, red, orange, pink, brown and yellow
• Recognition of 10 vehicle types: large bus, heavy truck, medium truck, sedan, van, light truck, medium bus, SUV, MPV and pickup
• ANPR support for Europe, including Spain and Portugal
• Capture rate ≥99% under recommended installation and illumination conditions.
• Recognition rate for inbound and outbound vehicles ≥96% at recommended installation and illumination conditions
• Recognition rate for European license plates ≥98% at recommended installation and illumination conditions

Audio

• Audio port
• 1 audio input per terminal
• 1 audio output per terminal

Storage

• 1 memory slot
• Built-in TF port
• TF card up to 256 GB
• Support TF card holder + direct plug

Network

• 10/100 Mbps RJ-45 Ethernet port
• Protocols HTTP, HTTPS, 802.1x, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, IPv4/v6, NTP, SFTP, DDNS, SNMP and PPPoE
• API
• SDK
• ONVIF Profile S, Profile T, Profile M, CGI, ITSAPI, P2P interoperability
• DSS Express and DSS Pro management software
• User/password, MAC address, HTTPS, IEEE 802.1x and network access control security
• Plug-in browsers: IE 9, IE 10, IE 11, Chrome 52 and earlier versions, Firefox 42 and earlier versions
• Browsers without plug-in: Chrome 92 and later versions

Alarms

• 3 alarm inputs by optocoupler with 5 V wet node ON/OFF value
• 2 alarm relay outputs of 2 A at 30 VDC or 0.5 A at 125 VAC
• Alarm outputs suitable for connection to devices such as barriers
• 2 RS-485 channels
• RS-485 port for connection to peripherals such as barriers and radars
• Reset button

Power supply

• Power supply 12 VDC, 2 A
• PoE 802.3at
• Maximum power 20 W
• Consumption without illumination <10 W
• Consumption with illumination <20 W

Environmental

• Operating temperature -30°C to +65°C (-30°F to +65°F)
• Operating humidity 10% to 95% RH noncondensing
• Storage temperature -40 °C to +70 °C (-40 °F to +70 °C)
• Storage humidity ≤95% RH non-condensing
• IP66 protection

Physical characteristics

• Material metal + plastic
• Dimensions 380.9 mm x 154.1 mm x 1423.6 mm
• Packing dimensions 1855.0 mm x 239.0 mm x 251.0 mm
• Net weight 7.25 kg
• Gross weight 11.05 kg

Contents

• 1 Dahua DAHUA-5240 ANPR camera (DHI-ITC436-PW9H-IZP)

Certifications and standards

• CE
• UKCA
