DAHUA-4744

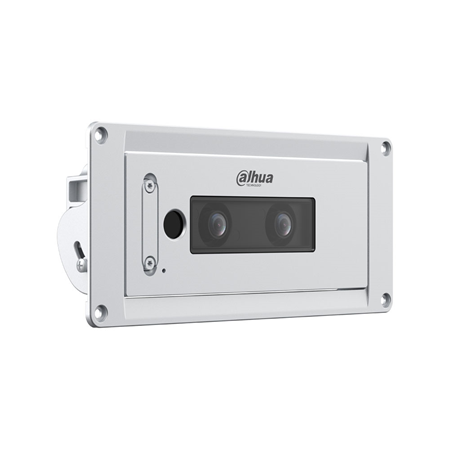

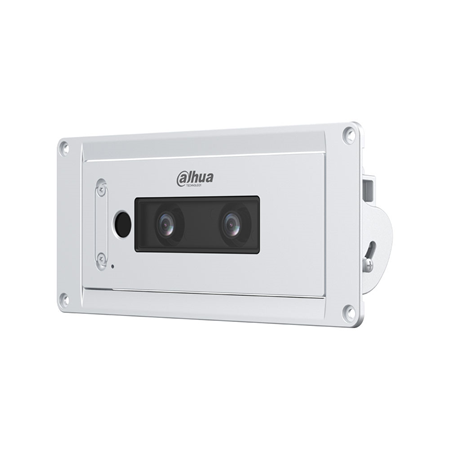

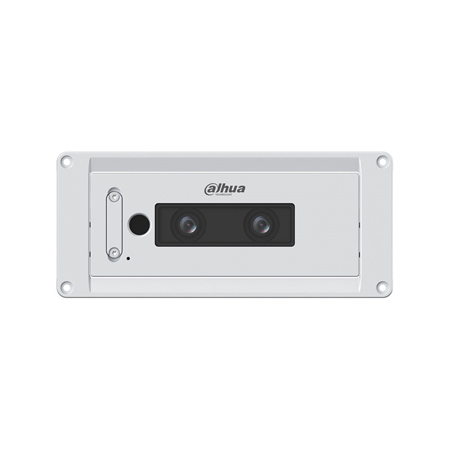

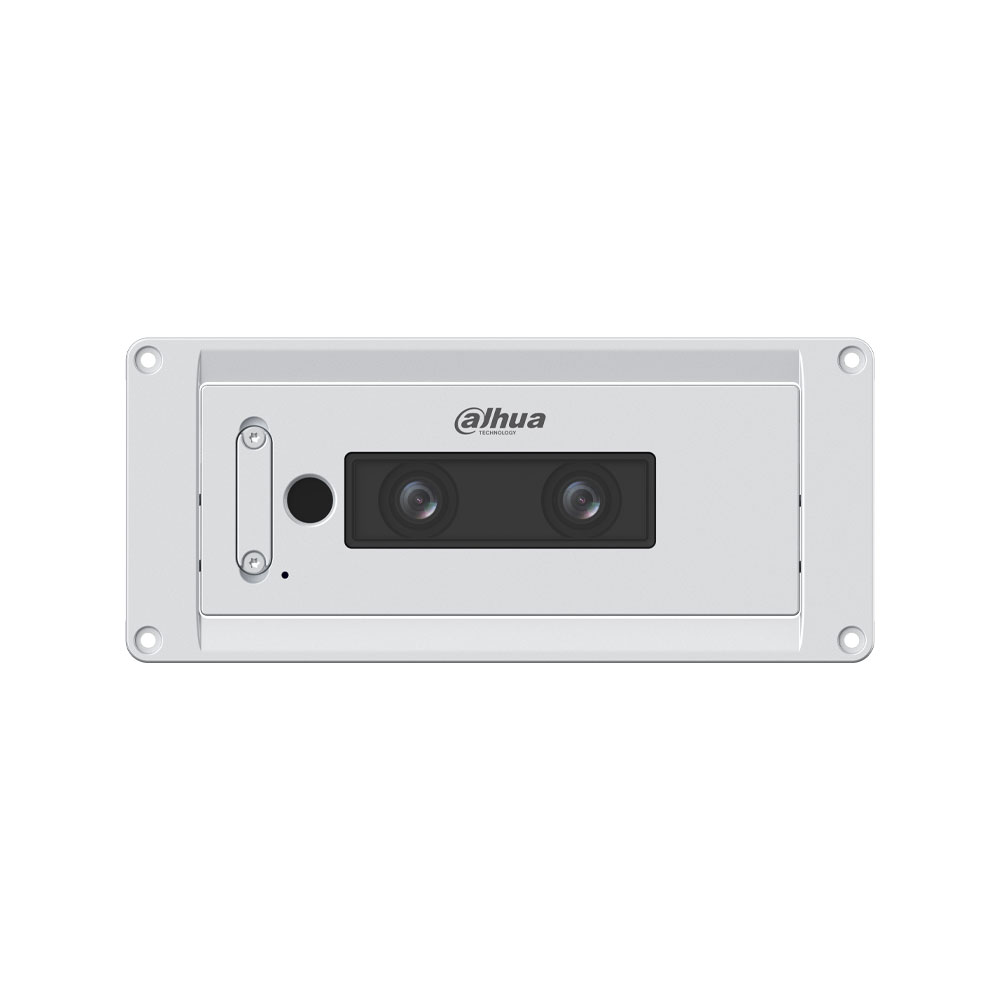

Dahua 4MP Mobile Camera for Passenger Counting
DAHUA-4744
DH-IPC-HMW8441XP-M-DAE-0200B-E










Main features
Specifications
- 1/2.8" CMOS sensor with 2560 × 1440 maximum resolution
- Fixed lens 2 mm (F2.0)
- Angle of view: 122° (H), 72° (V), 141° (D)
- Day/night mode with ICR filter
- 0.002 lux (color) / 0.0002 lux (B/W) / 0 lux with IR
- IR illumination up to 14 m
- Video compression H.265, H.264 and MJPEG (substream)
- Smart Codec: Smart H.265+ / Smart H.264+
- Resolution: 4MP (2560 × 1440), 1080P (1920 × 1080), D1 (704 × 576 / 704 × 480)
- Stream 1: 4MP (1~25/30 ips)
- Stream 2: D1 (1~25/30 fps)
- Stream 3: 1080P (1~25/30 fps)
- Image functions: WDR 120 dB, BLC, HLC, 3D NR, ROI, rotation, adjustable white balance
- Privacy: 4 configurable masks
- Intelligent video functions:
- Passenger counting with Deep Learning algorithm.
- Counting accuracy greater than 98%.
- Alarm events:
- Motion detection, tampering, network anomalies, digital input, video loss
- Bi-directional audio: RCA input/output
- Alarm: 2 inputs (5-24 V) and 2 outputs (12 V, 300 mA)
- MicroSD slot up to 512 GB (card not included)
- Network interface: RJ-45 10/100 Base-T
- Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, SNMP, P2P
- ONVIF (Profile S/G/T), CGI support
- Software: Mobile Center
- Mobile clients: Android / iOS
- Power supply: 36 VDC or PoE 802.3af
- Basic power consumption: 4 W
- Operating temperature: -35 °C to +70 °C
- Humidity: ≤95 %.
- Storage temperature: -40 °C to +75 °C
- IP67 protection
- Vandal protection IK08
- Metal housing
- Dimensions (flush mounted): 230 × 100 × 49.4 mm
- Dimensions (with bracket): 197.7 × 71 × 72.1 mm
- Net weight: 0.76 kg (recessed) / 0.82 kg (with stand)
- Gross weight: 0.91 kg (recessed) / 1.13 kg (with stand).
- Certifications: CE-LVD, CE-EMC, FCC, E-mark, EN50155, R118
REFERENCE / MODEL | DAHUA-4744 / DH-IPC-HMW8441XP-M-DAE-0200B-E |
---|---|
Resolution | 4MP |
Audio | 1 input / 1 output || Two-way |
IR Distance | 10-20m |
Ingress protection | IP67 |
Lens | 2 mm |
Special Protection | Vandal-proof (IK08) |
Sensor | 1/2.8" CMOS |
StarLight | StarLight |
WDR (Backlight) | WDR (120dB) |
Codec | H.264 || H.264+ || H.265 || H.265+ |
PoE | PoE |
SD Slot | Yes |
Colour | Grey |
Installation environment | Indoor || Outdoor |
Material | Metal |
Alarm channels | 2 inputs / 2 outputs |
Connectivity | IP || YES (P2P) |
Intelligent functions | People counting |
Compatibility | Onvif |
