IDTK-16
System IDTK Bag in suitcase
IDTK-16
IDTKbag
This product is discontinued
- MAIN FEATURES
- SPECIFICATIONS
- DOCUMENTATION
- COMMENTS

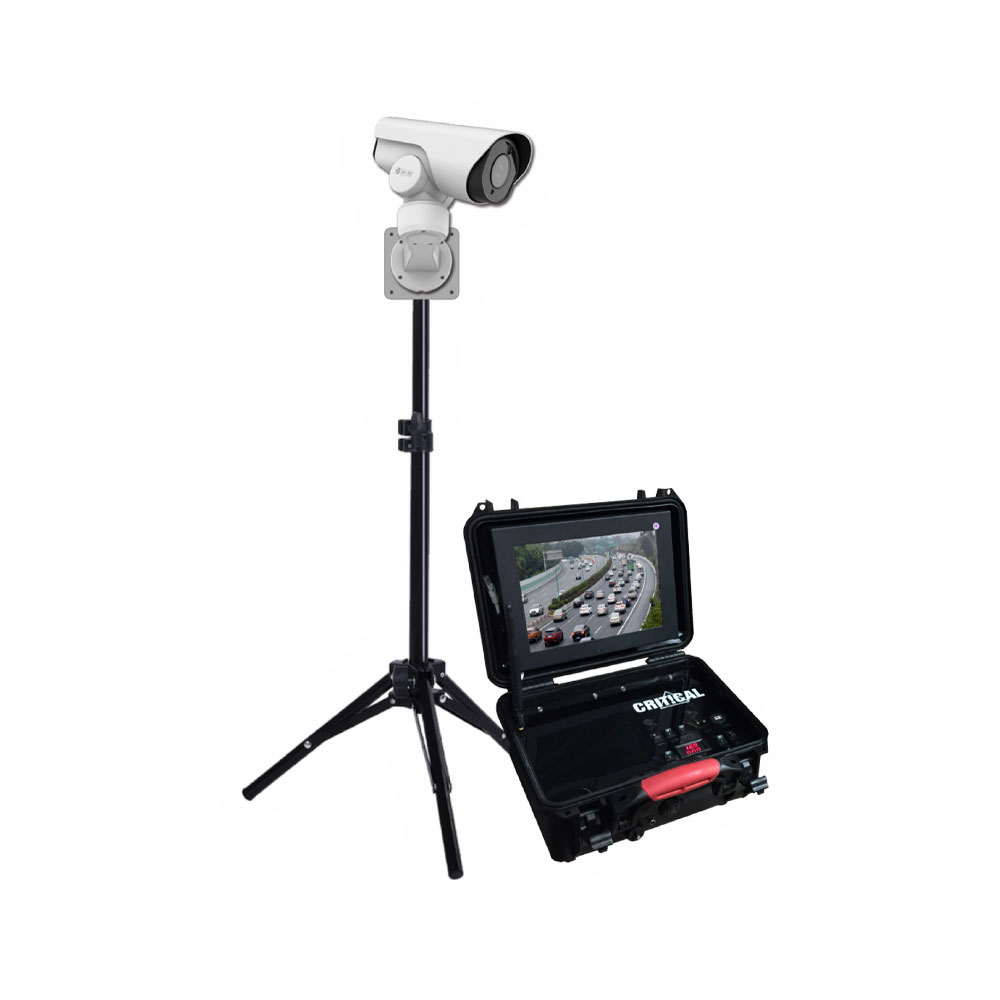

- IDTK Bag system in a portable case
- License plate recognition equipment in rugged case
- TFT monitor for display and integrated control
- 3G/4G router
- PLATE Bullet camera on outdoor tripod
- Wiring, charger and adapters for power or car.
- Portable case system for license plate acquisition
- Portable equipment machined and mounted in a special high-strength, hermetically sealed case with IP67 protection.
- Rapid deployment in a few minutes
- Designed to withstand continuous use in outdoor environment
- Allows to manage 2 channels and manage them both locally and remotely or from the control center
- It also has the possibility of operating as a license plate capture, recognition, database cross-referencing, analysis and investigation center.
Specifications
- 2 input channels
- Windows operating system
- OS version IDTKsoft 4.3
- Intel i7 processor
- 16MB RAM memory
- 1TB SSD disk storage
- 12.1" TFT video output
- LAN port
- 4 USB ports
- 1 USB Type-C port
- Bluetooth and WiFi communication
- GPS location
- 4G USB router
- H.265, H.264 and MPEG compression formats
- MS SQL Express /Mongo database
- Supports up to 70 countries
- Video source .AVI and Mp4
- Maximum vehicle speed up to 300 km/h
- Supports 2-line license plate and special license plates
- Gigabit RJ45 port
- Supports RTSP, Onvif protocols
- PLATE Series and IDTKdrone support
- Integration with third parties by XML via Socket, JSON, Api Rest and SQL Server
- Icloud IDTK-SMART/E included
- 12V DC power input
- Maximum consumption: 3 Ah / 36 W
- 3 PoE ports
- 18Ah lithium battery
- Charger: 14,4V DC /7Ah
- Operating temperature -20°C ~ +60°C
- Relative humidity up to 90% (non-condensing)
- Built-in fan and thermostat
- Degree of protection of the case: IP65
- Tablet protection rating: IP67
- Waterproof resin case
- Rugged tablet with Gorilla Glass 4 glass
- Dimensions: 406 x 330 x 174 mm
- Weight: 4.5 kg
- Certifications: UNI10772 >95%, Applus+ 98,76% efficiency
