IDTK-18

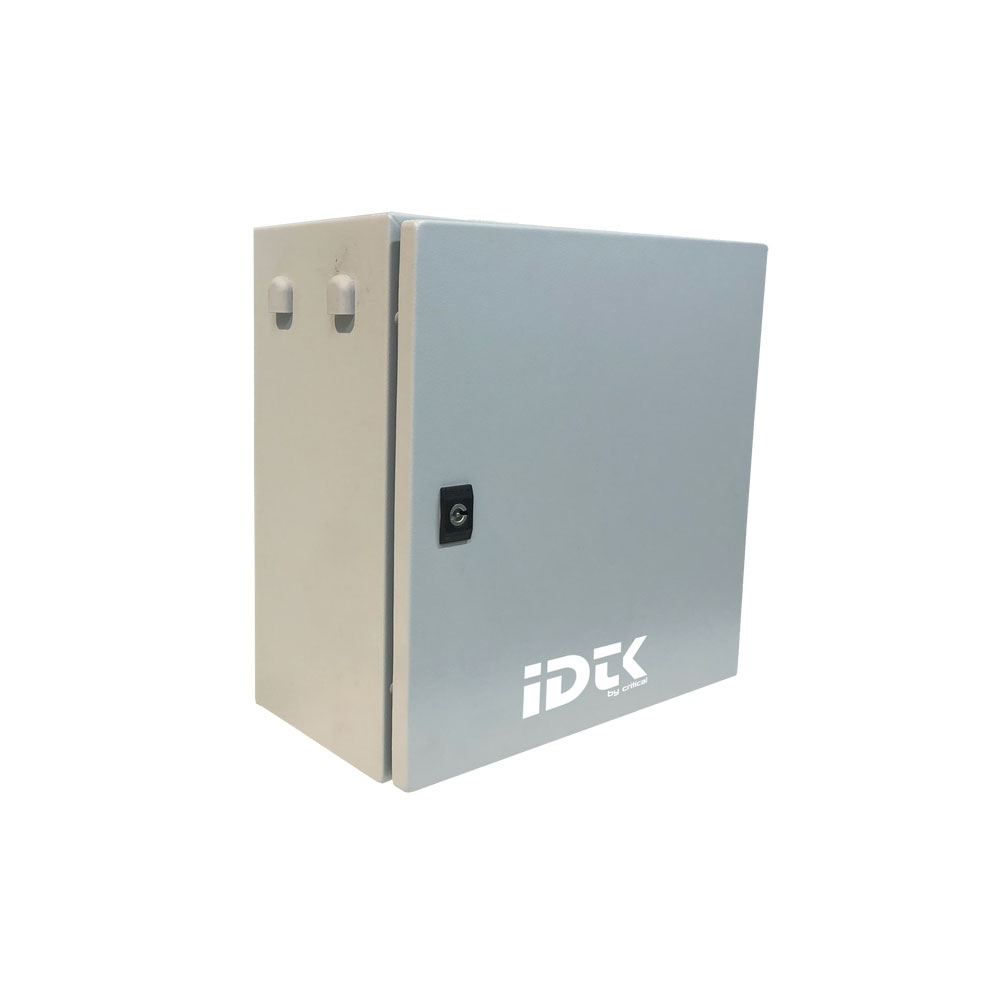

BOX-ALM fully mechanized

IDTK-18

IDTK-ALM

This product is discontinued
  • MAIN FEATURES
  • SPECIFICATIONS
  • DOCUMENTATION
  • COMMENTS
  • Fully mechanized box for installations and uses with a continuous 240V AC supply
  • For video surveillance systems or capture systems
  • With mast support and lock.
  • Fiber box with the same mechanization and electronics as the IDTKcity families.
  • They allow the housing of any video surveillance system, reconnaissance equipment or transmission systems for outdoor and autonomous use.
  • Supplied fully mechanized with electrical protections for the different current shunts.
  • Power sockets and Shucko bases
  • Current stabilizers
  • Two DIN rails
  • Ventilation system with thermostat
  • Double safety lock
  • Power supply: 240V AC
  • Operating temperature from -20°C ~ +60°C
  • Relative humidity up to 90% (non-condensing)
  • IP67 degree of protection
  • Manufactured with IK10 vandal-proof protection
  • Dimensions: 530 x 400 x 200 mm
  • Weight: 3.5 kg
  • Including wall and pole bracket, several cable glands and pre-wired for CCTV cameras
