BOX-ALM/S with battery and solar panel

Name: IDTK-21
SKU: IDTK-ALM/S/96
Rating: 5 (22 reviews)

IDTK-21

This product is discontinued

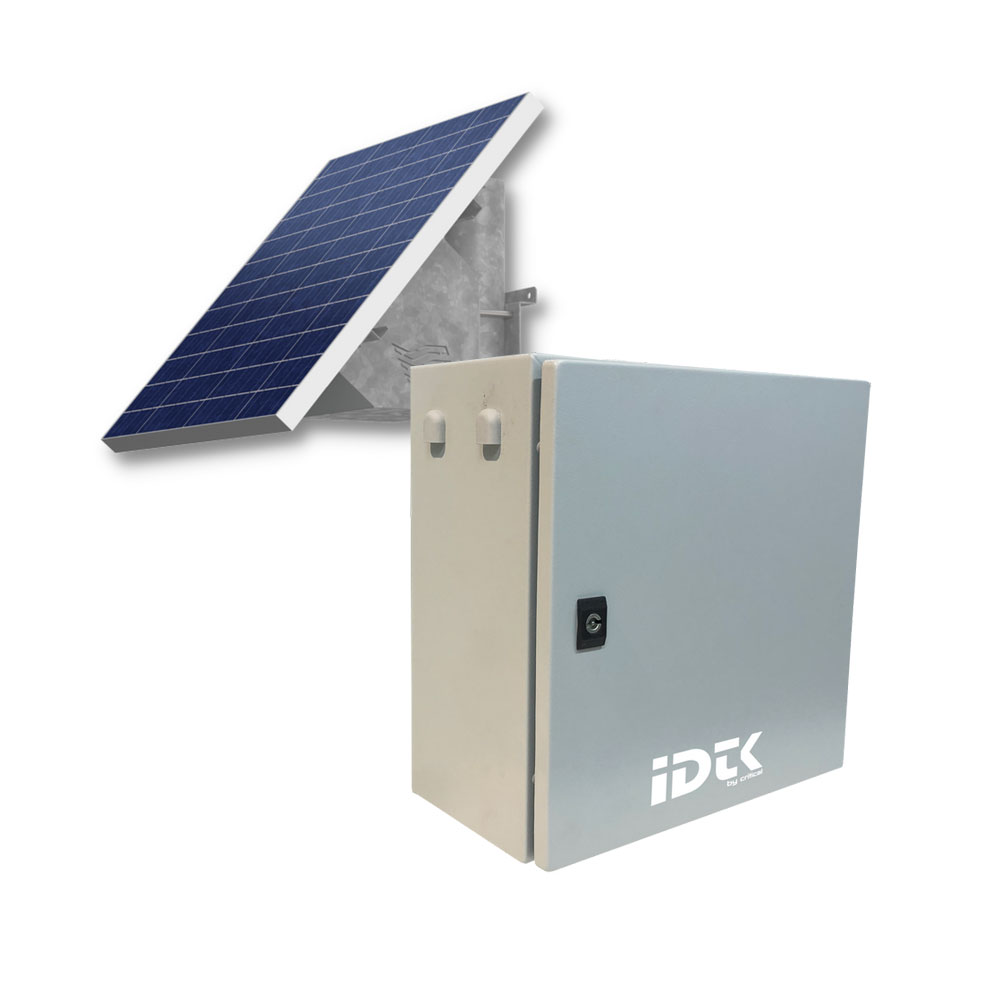

Machined box complete with solar panel kit
The system is supplied with a LiFePO4 96 Ah battery inside the same box and 300Wp solar panel
Possibility of connection to 240V AC (alternative supply system).

Fiber box with the same mechanization and electronics as the IDTKcity families.
They allow the housing of any video surveillance system, reconnaissance equipment or transmission systems for outdoor and autonomous use.
Supplied fully mechanized with electrical protections for the different current shunts.
Power sockets and Shucko bases
Current stabilizers
Two DIN rails
Ventilation system with thermostat
Double safety lock
Includes switch, 300Wp polycrystalline module and 20A charge regulator
Power supply: 240V AC
4.6 kg 96 Ah lithium battery
Battery charger
Operating temperature -20°C ~ +60°C
Relative humidity up to 90% (non-condensing)
IP67 degree of protection
Manufactured with IK10 vandal-proof protection
Dimensions: 530 x 400 x 200 mm
Weight: 8.5 kg
Including wall and pole bracket, several cable glands and pre-wired for CCTV cameras

	Language	Name	Type	Action
	EN		Manufacturer's Data Sheet

There are no comments for the product IDTK-21.
