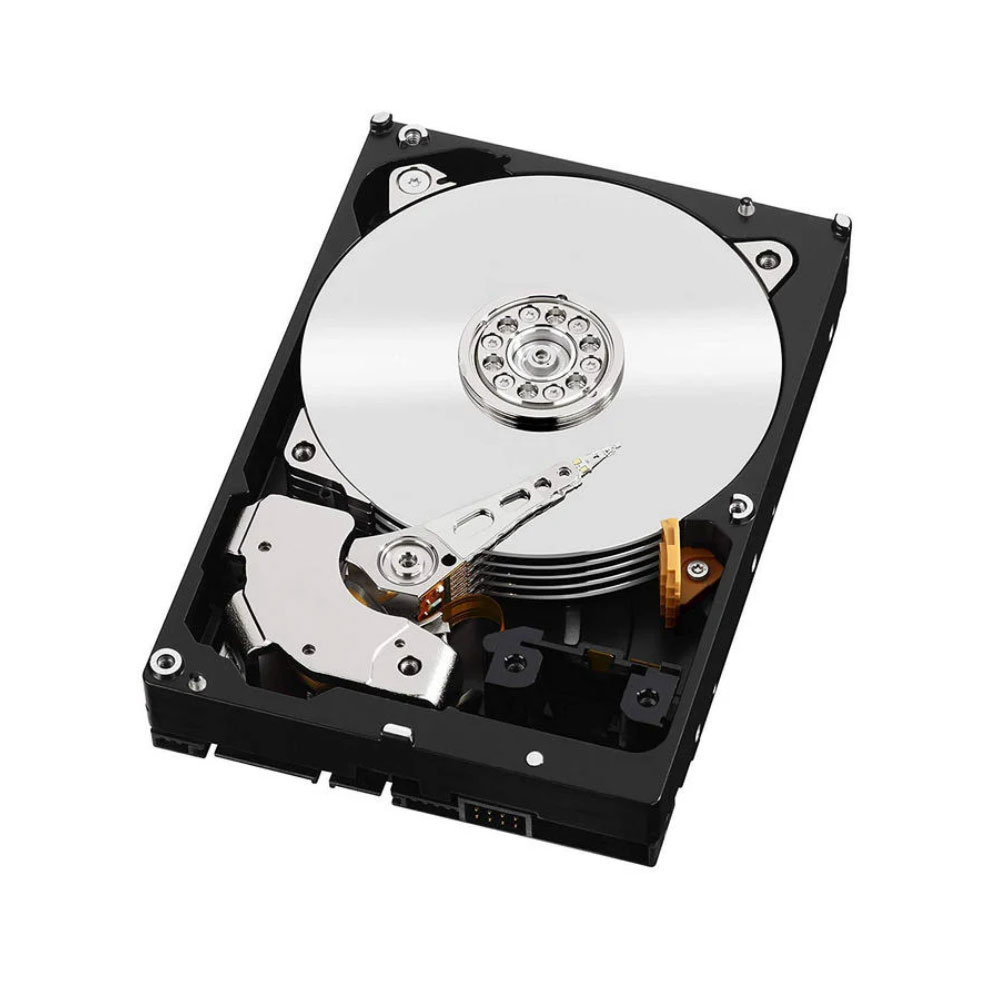

SAM-5070 | 6TB SATA CCTV Hard Disk Drive
SAM-5070SAM-50706TB SATA CCTV Hard Disk Drive

6TB SATA CCTV Hard Disk Drive

SAM-5070

SAM-5070

Main features

  • 6TB video surveillance hard disk
  • 3.5" format
  • 5,400 rpm rate
  • 256 MB buffer
  • Up to 64 cameras
  • 24/7 operation
  • SMR technology
  • Sustained speed 184 MB/s
  • Compatible with sDVR, sNVR and hybrids
  • Optimized reliability for video surveillance.

Specifications

Technical features

  • Video surveillance hard drive
  • 6 TB capacity
  • 3.5" form factor
  • SATA 6.0 Gbit/s interface
  • Supports up to 64 cameras
  • Supports up to 8 drive bays
  • SMR recording technology
  • Integrated shock sensor
  • Advanced Format (AF)
  • RoHS compliant and halogen-free

Performance

  • 5,400 rpm spin speed
  • 184 MB/s sustained transfer rate (typ.)
  • 256 MB buffer
  • 5.56 ms average latency

Reliability

  • 180 TB/year workload
  • MTTF of 1,000,000 hours
  • Unrecoverable error rate of 1 in 10^14
  • 24/7 operation
  • 600,000 charge/discharge cycle time
  • 3-year limited warranty

Power management

  • 5 VDC ±5% and 12 VDC ±10% power supply voltage
  • Power consumption in operation: 4.84 W (typ.)
  • Active standby power consumption: 2.81 W (typ.)

Environmental

  • Operating temperature 0 to 70 °C
  • Non-operating temperature -40 to 70 °C (-40 to 158 °F)
  • Noise level at standby: 24 dB (typ.)

Physical characteristics

  • Dimensions: 147 (L) × 101.85 (W) × 26.1 (H) mm
  • Net weight: 680 g

Contents

  • SAM-5070 Video Surveillance Hard Disk Drive (SAM-5070)

Certifications

  • RoHS
REFERENCE / MODEL SAM-5070 / SAM-5070
Speed 5400 RPM
Capacity 6TB
Format 3.5"
Cache 256MB
